48" x 7.00" x 20,000# Paxson Slitting Line

Ref # 7618-HK

Click on photo to enlarge

YEAR: 1962


48" x 7.00" x 20,000# Paxson Slitting Line

Consisting of:

-Uncoiler:
20" I.D.
Hydraulic Wedge-Type Expansion, 17" - 21" Exp. Range (approx.)
48" Face Mandrel
Sliding Base
15 HP Reliance DC Motor, 850/2550 RPM, 500 V
Disc Type Brake
Dodge Reducer w/11.4:1 Ratio Thru Sprockets w/3:1 Ratio
(Total Reduction approx. 34.2:1)
Self-Contained Hydraulics,
5 HP AC Motor, 1750 RPM, 220/440 V
7.5" Dia. Main Shaft
Passline: 43.5" from Floor to Center of Mandrel
Overall Size: 164" L x 57" W x 68" High

-Slitter Head:
7" Dia. x 49.5" Face Arbors
Parallel Arbor Adjustment
Entry Passline Rolls, 5" Dia. x 51" Face, Rubber Covered
Entry Side Guides, Manual Adjustment
20 HP AC Motor Threading Drive, 1760 RPM, 220/440 V
Foote Bros. Reducer w/38.4:1 Ratio
40" Passline Height
Powered Opening of Outboard Housing for Tooling Change
Overall Size: 222" L x 48" W x 69" High

-Scrap Winder:
Manual Scrap Eject
Oscillate Wind
AC Drive Motor

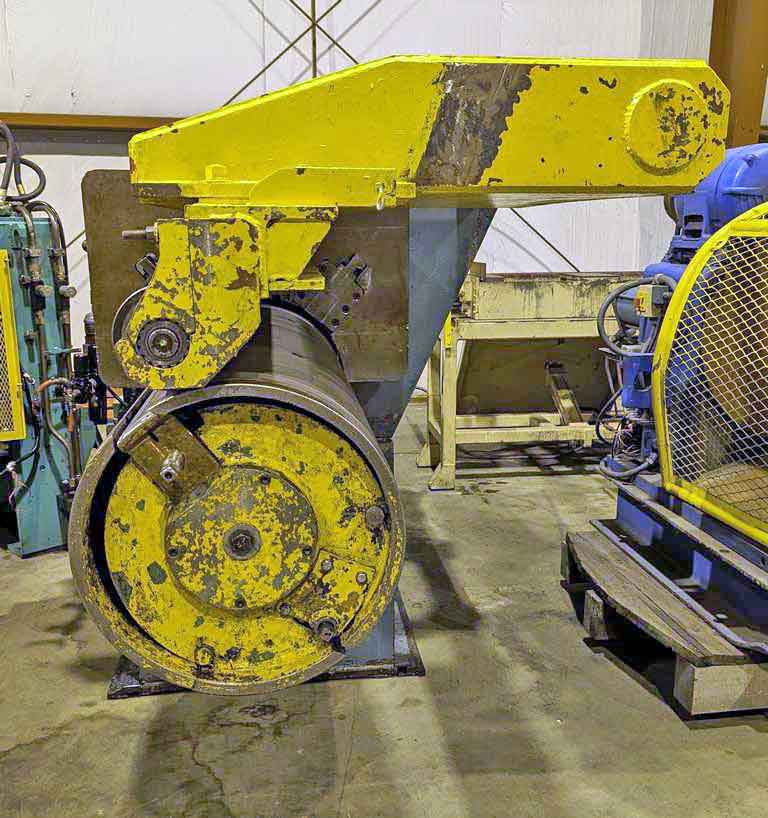

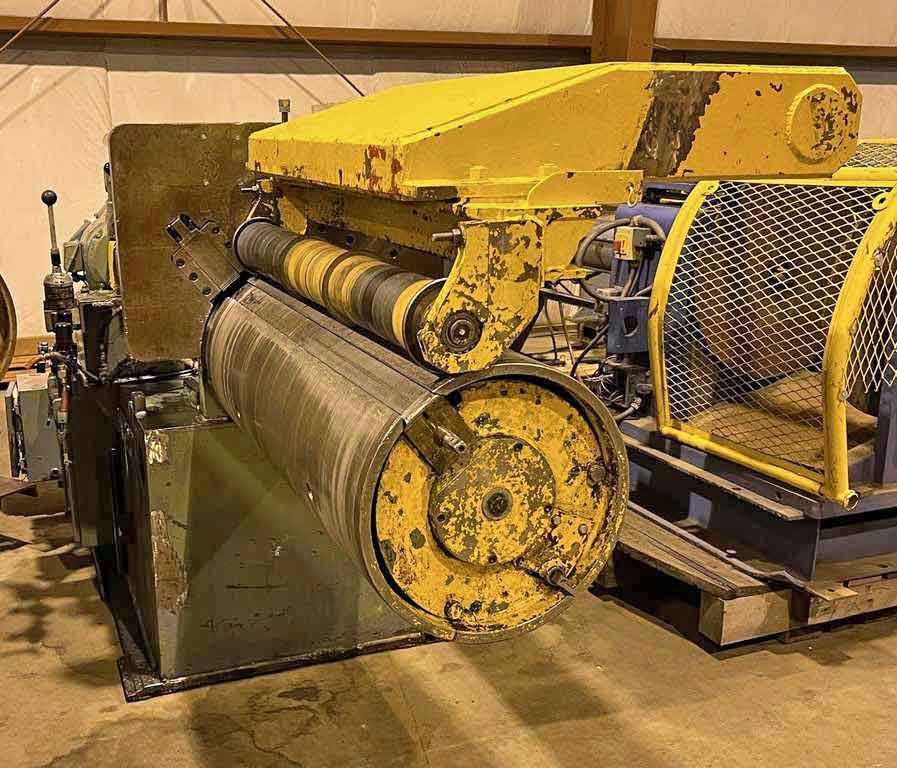

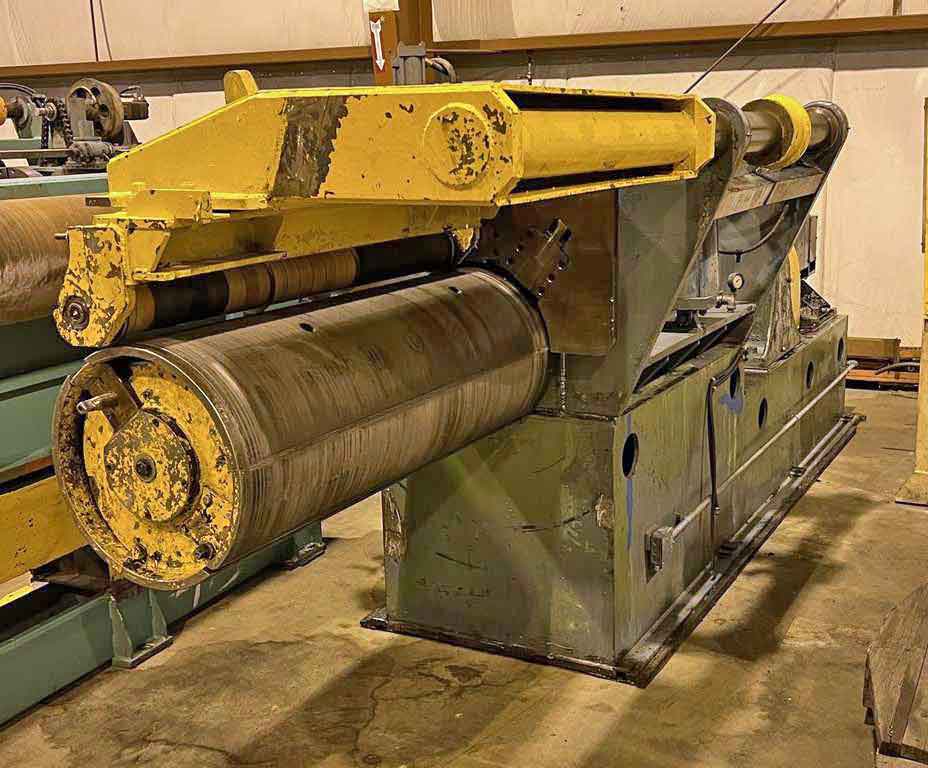

-Recoiler:
20" Dia. x 52" Face Drum
Spare Drum, 16" Dia. x 53" Face
Manual Clamp and Expansion
7.5" Dia. Main Shaft
Hydraulic Pushoff
Overarm Separator
64" O.D. Max.

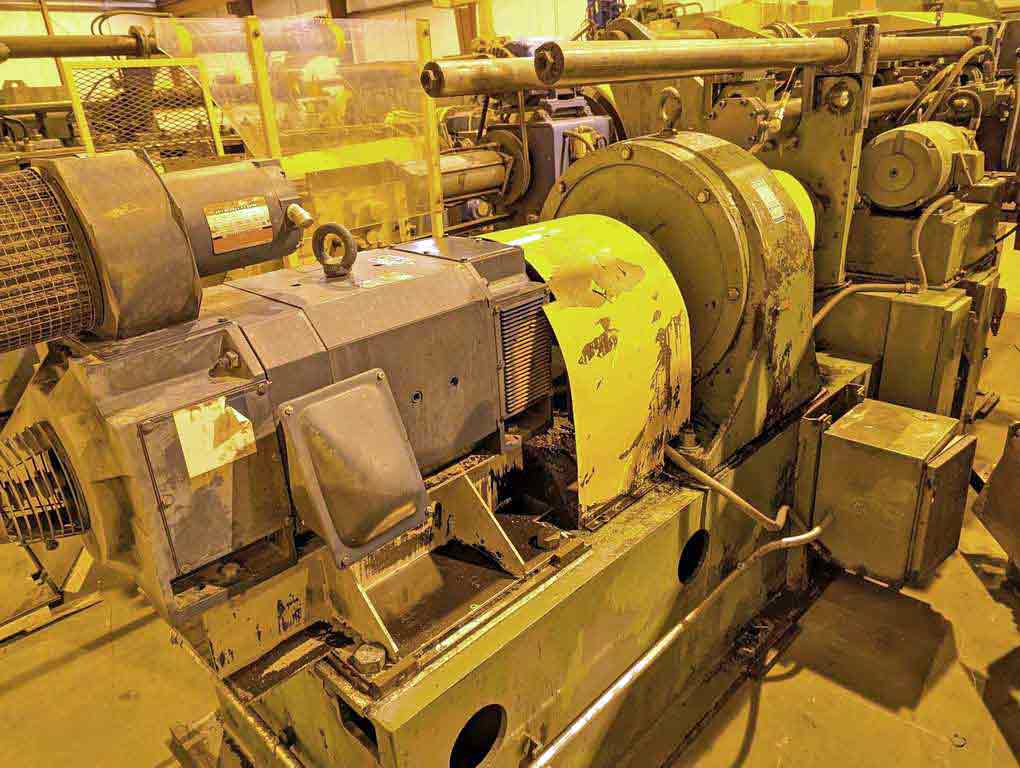

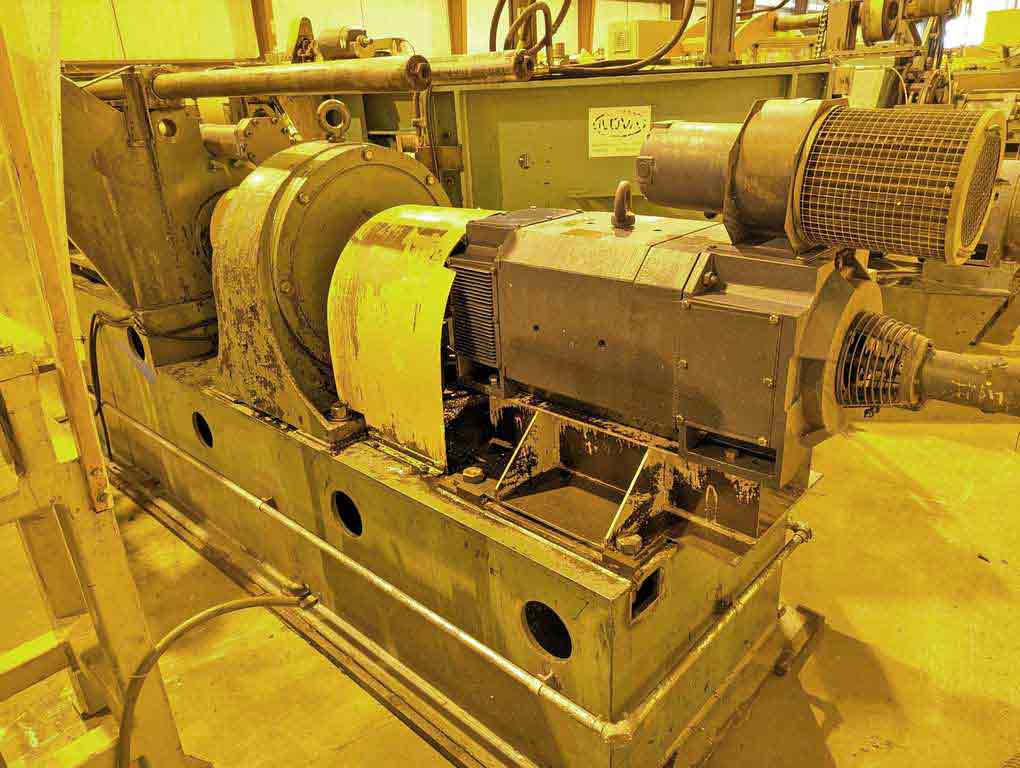

50 HP Reliance DC Motor, 850/2550 RPM, 500 V, w/Blower
Foote Brothers Reducer w/31.4:1 ratio, rated at 76.5 HP at 1750 RPM IN
Self-Contained Hydraulic Power Unit, 5 HP AC Motor, 220/440 V
Passline: 41" from Floor to Center of Drum
Overall Size: 213" L x 62" W x 69" High

-No Electrics

-Line Direction: Left To Right

-Removed and in Storage: Toledo, OH.
