62" x 0.080" Bradbury Flat Trak E-Drive Leveler, 5 HI

Ref # 12189-HK

Click on photo to enlarge

YEAR: 2017

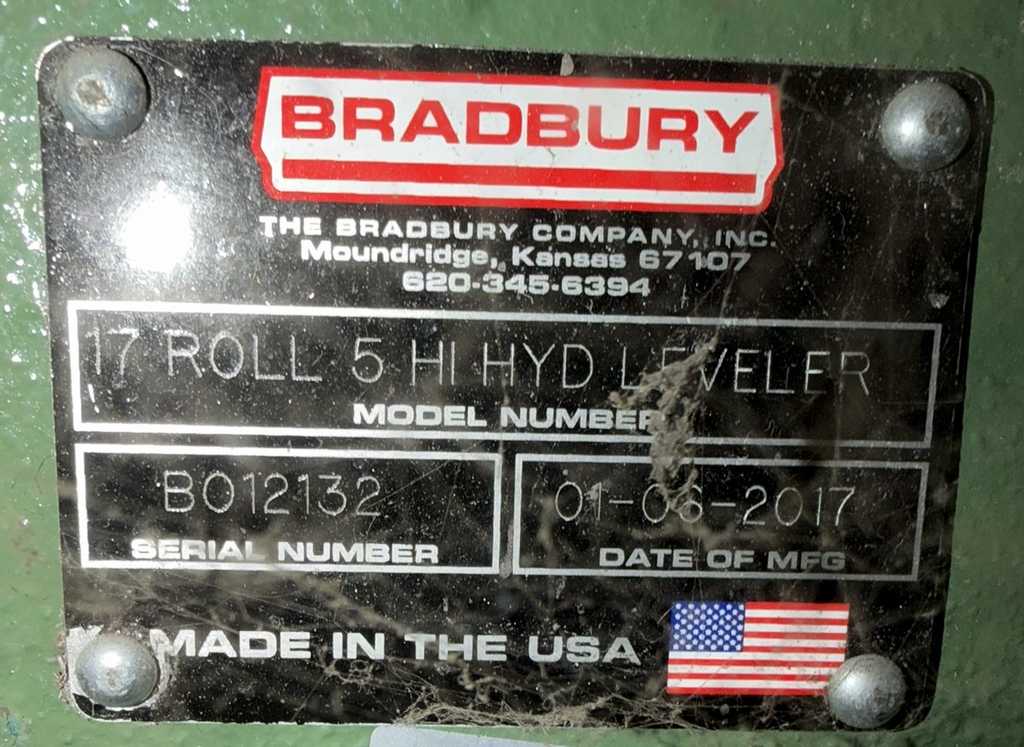

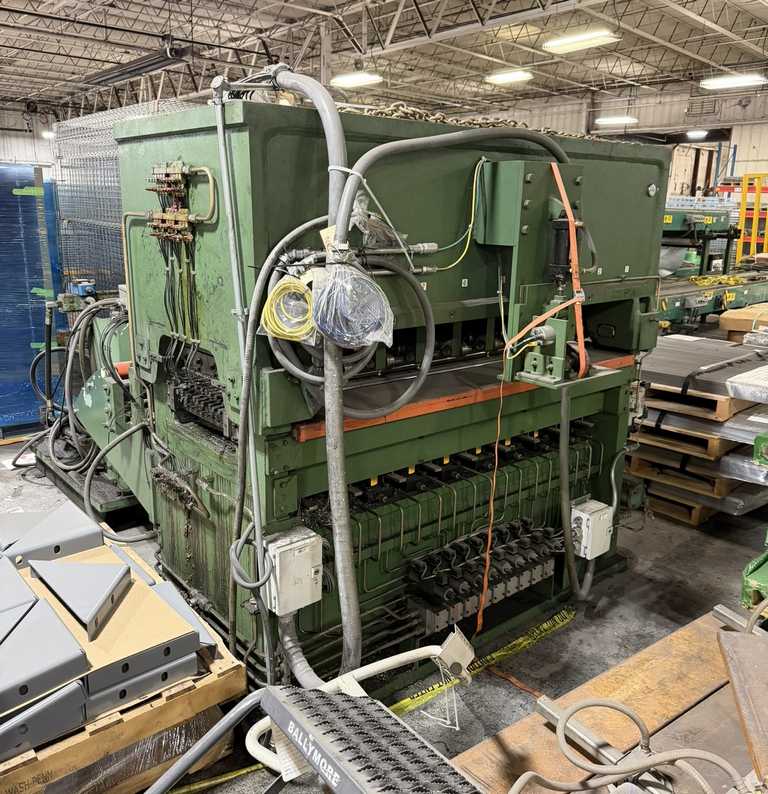

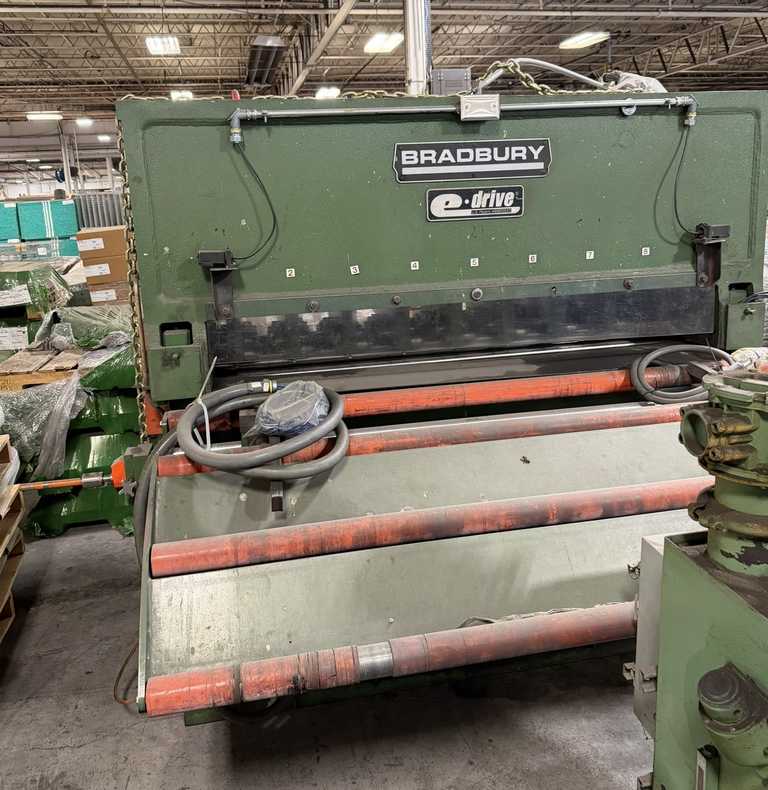

Bradbury Flat Track Precision E-Drive Leveler - 5 HI

Thickness Capacity:
Galv. Steel: 0.023" - 0.054" x 48.5" @ 65,000 PSI
Galv. Steel: 0.023" - 0.054" x 60" @ 55,000 PSI
Stainless Steel: 0.023" - 0.036" x 48.5" @ 65,000 PSI
Aluminum: 0.019" - 0.080" x 62" @ 20,000 PSI

-62" Product Width
-17 Work Rolls, 8 over 9
-1.3125" Dia. x 68" Face Rolls
-Rolls are Hardened and Polished Alloy Steel

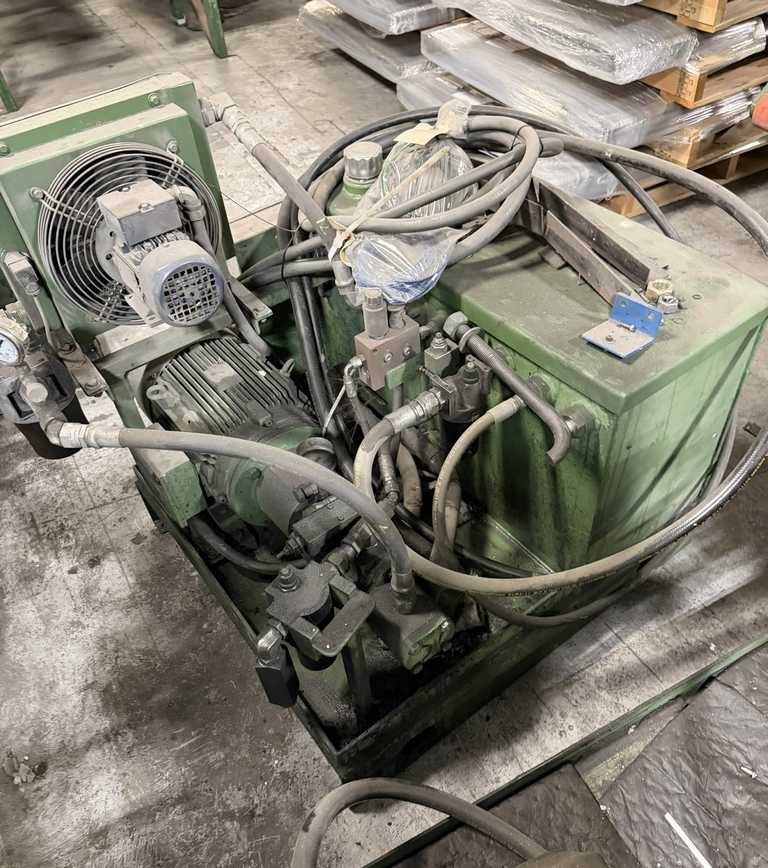

-9 Flights of Adjustable Backups, Hydraulic Adjustment

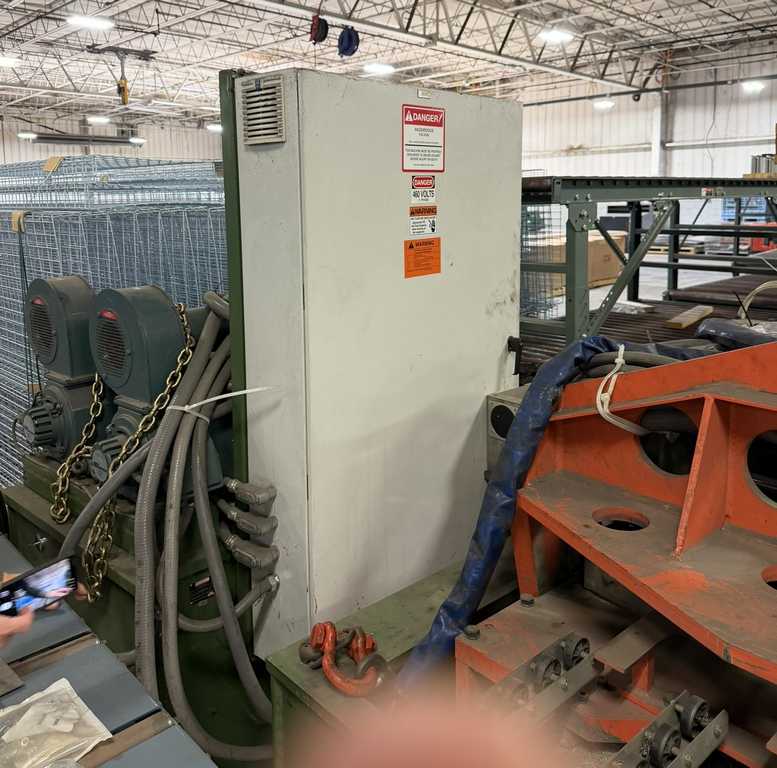

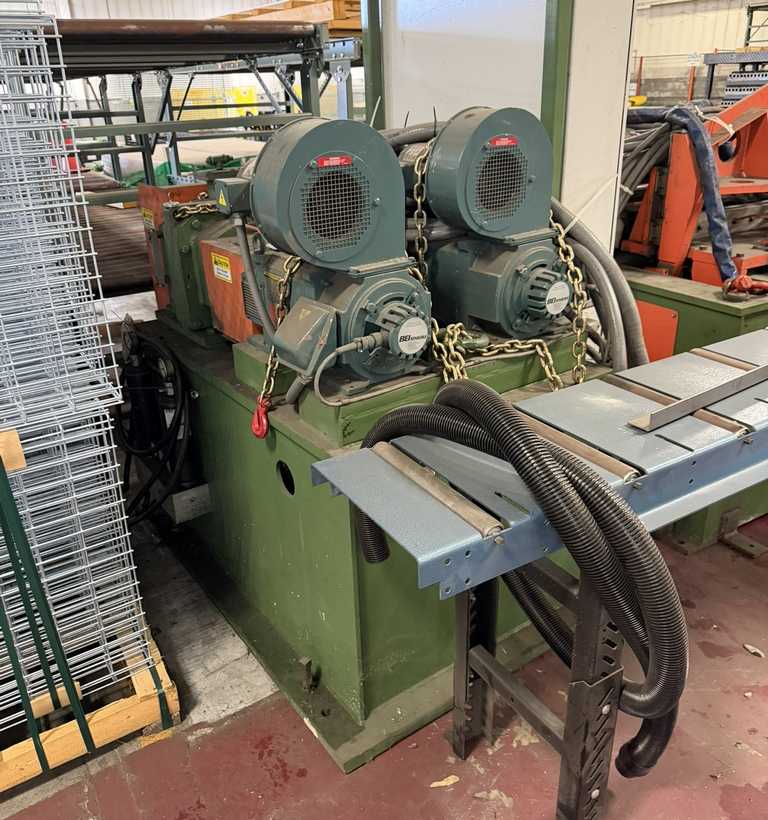

-Dual (2) - 30 HP Baldor DC Motor Drive
-Entry Cascade Rolls
-Passline Height: 42"
-Line Speed: 150 FPM Max.
-Line Direction: Right to left

-Approx. Shipping Weight: Leveler - 16,000 lbs.
Drive Base - 5,000 lbs.

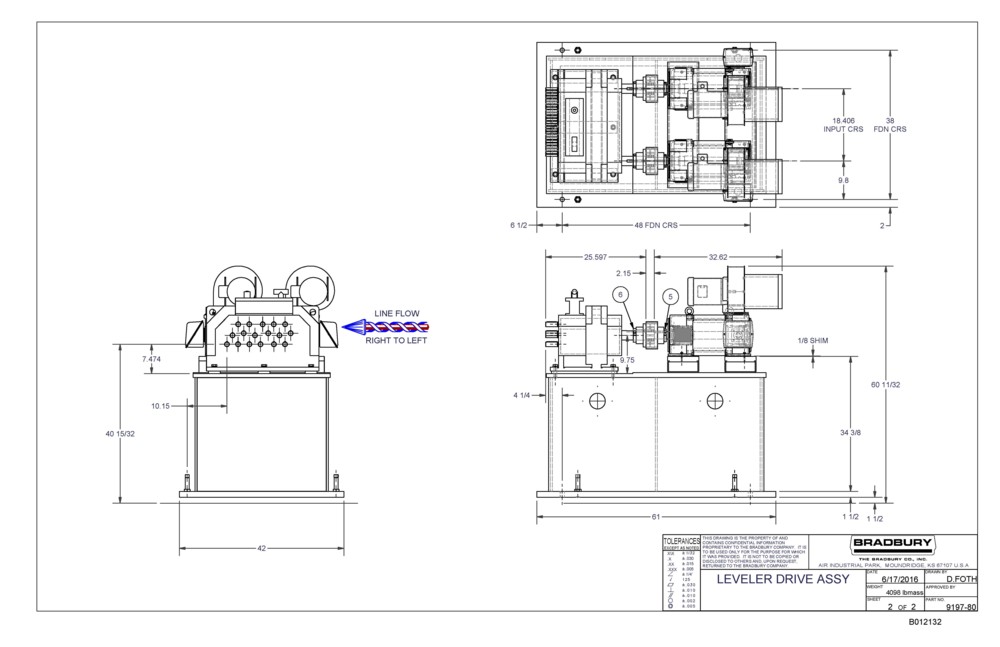

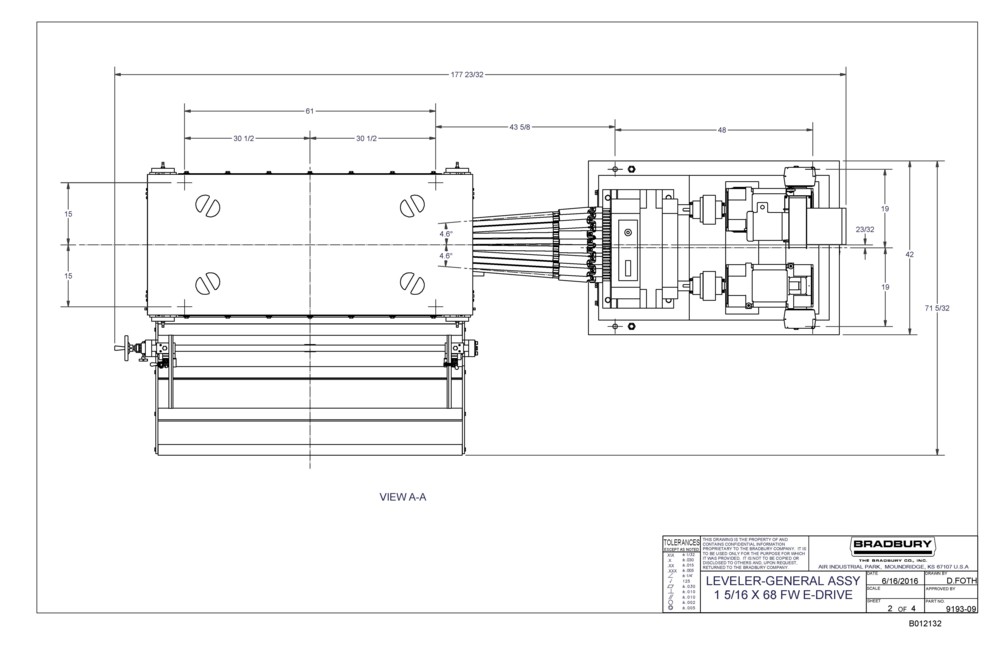

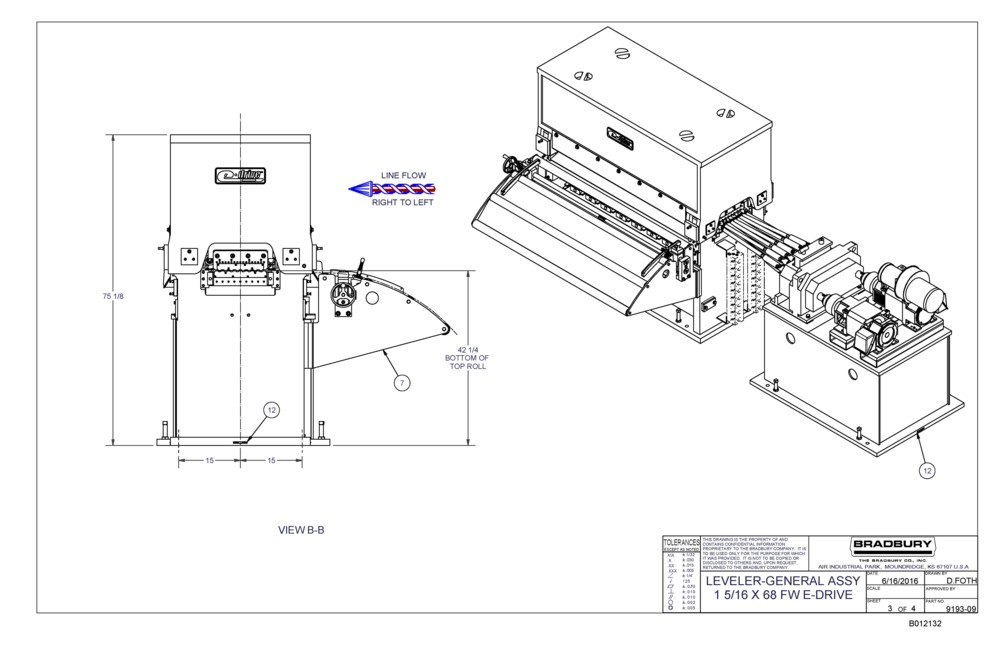

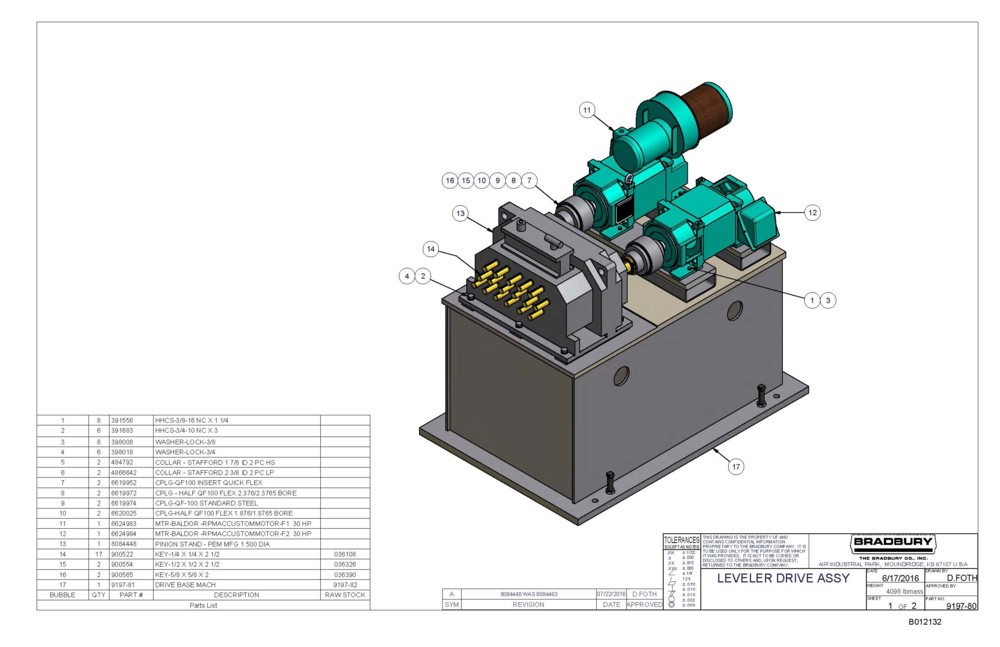

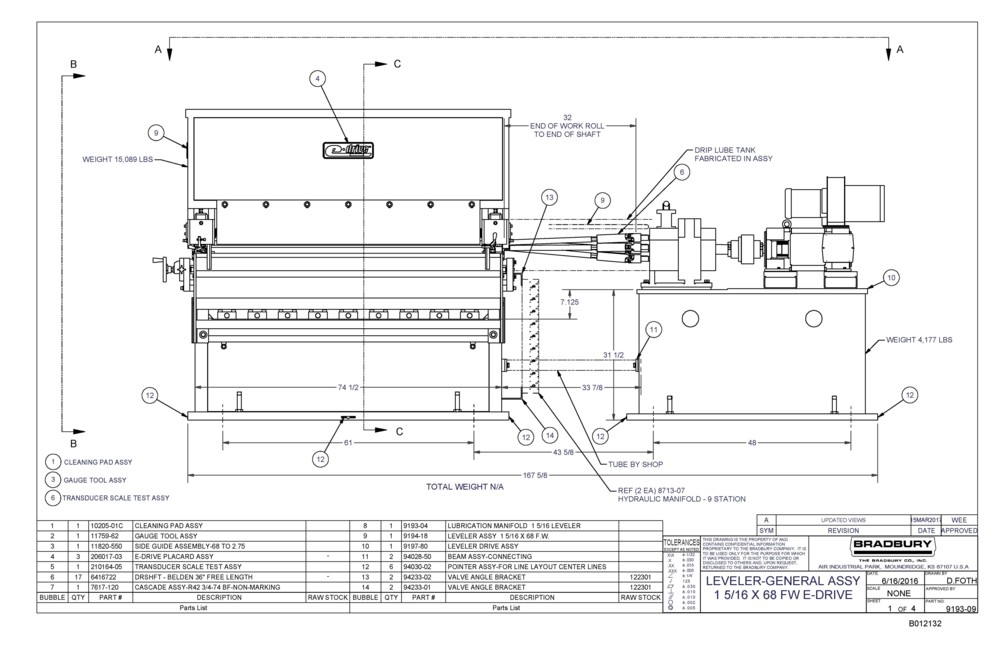

-Mechanical Drawings Included

-In Storage: Toledo, OH
