54" x 8.00" x 40,000# Loopco Slitting Line
Maximum Width: 54"
Maximum Thickness: 0.187"
Line Direction: Right to Left
Consisting of the following:

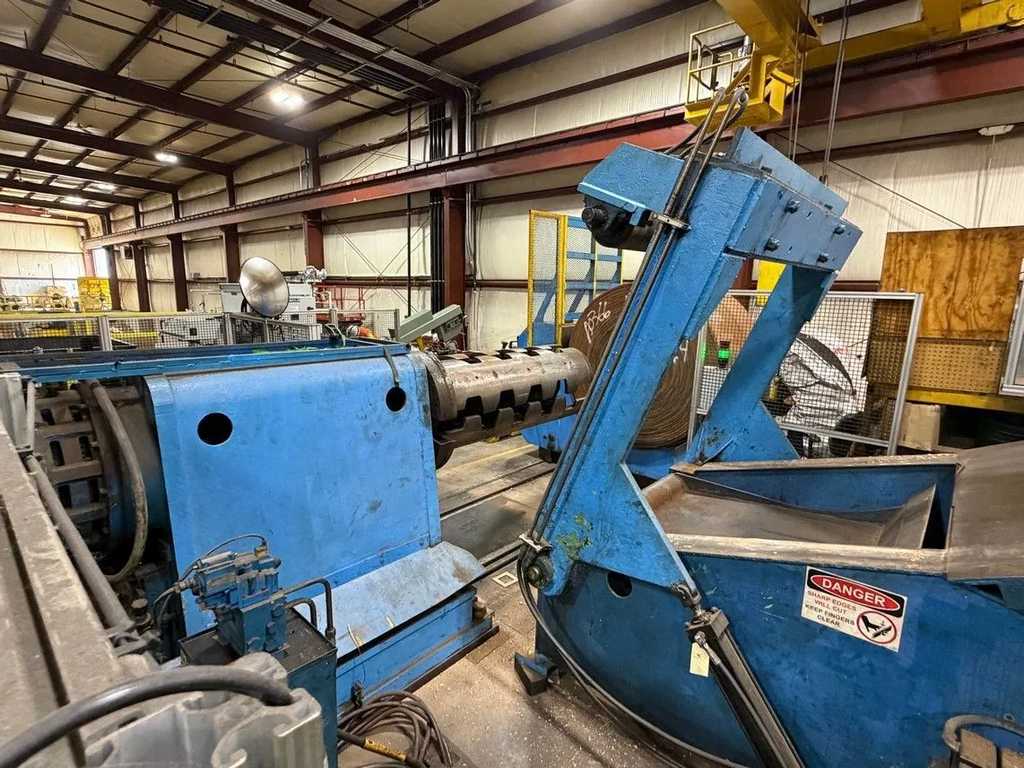

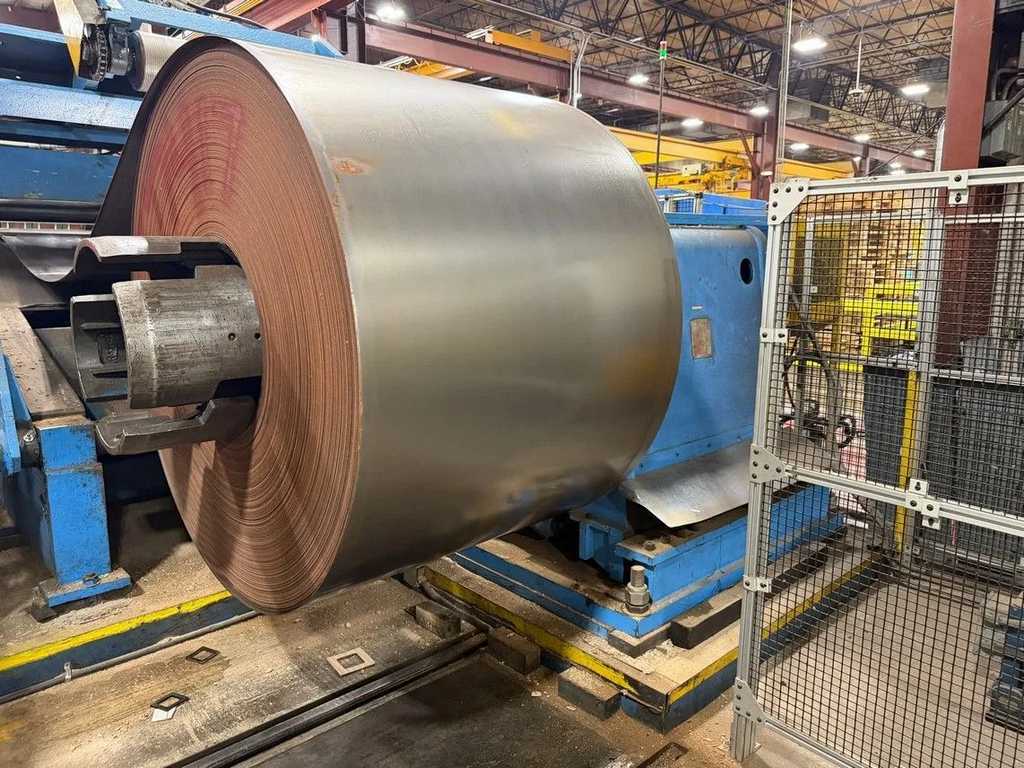

-Mandrel Uncoiler:
20" - 24" Coil I.D. Capacity
Pumpkin Tooth Mandrel
Hydraulic Expansion
Hydraulic Slide Base
Water Cooled Brake

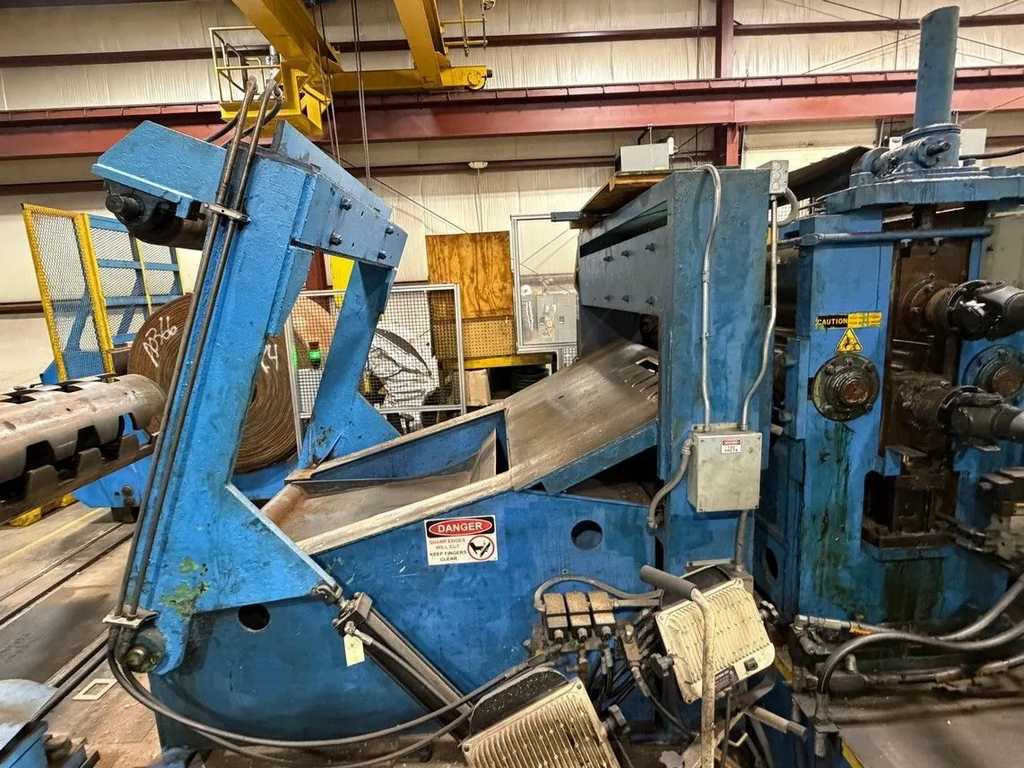

-Entry Unit:
Hydraulic Peeler Table
Powered Holddown Roll
Pinch Rolls

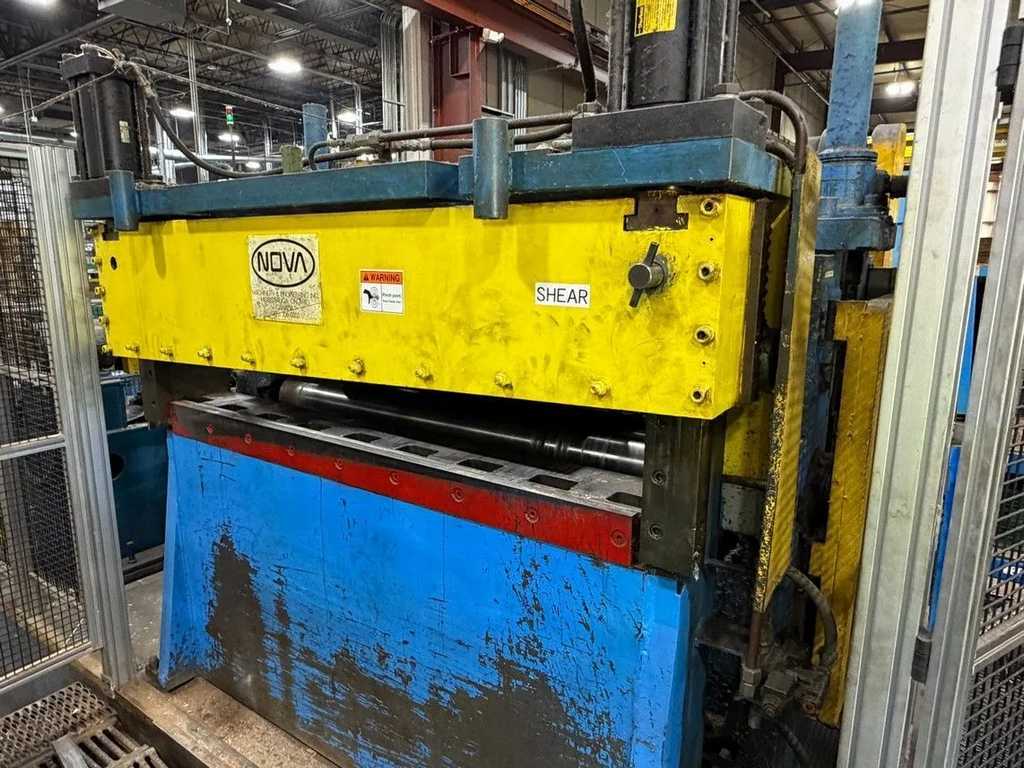

-Entry Crop Shear: Nova (2010)

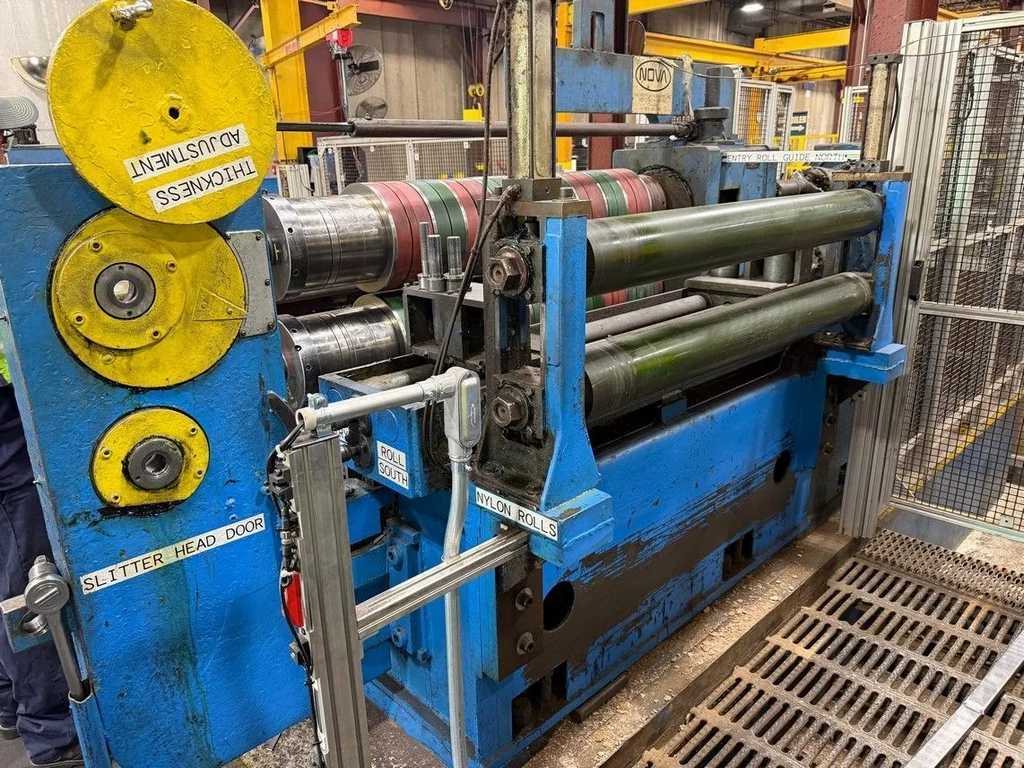

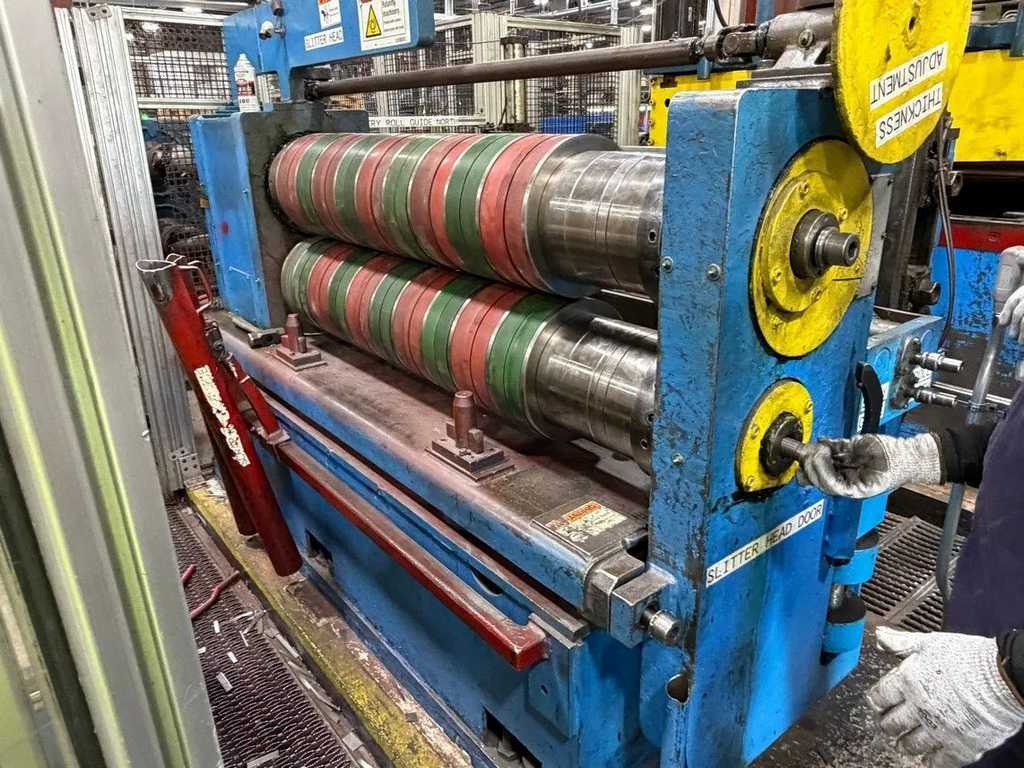

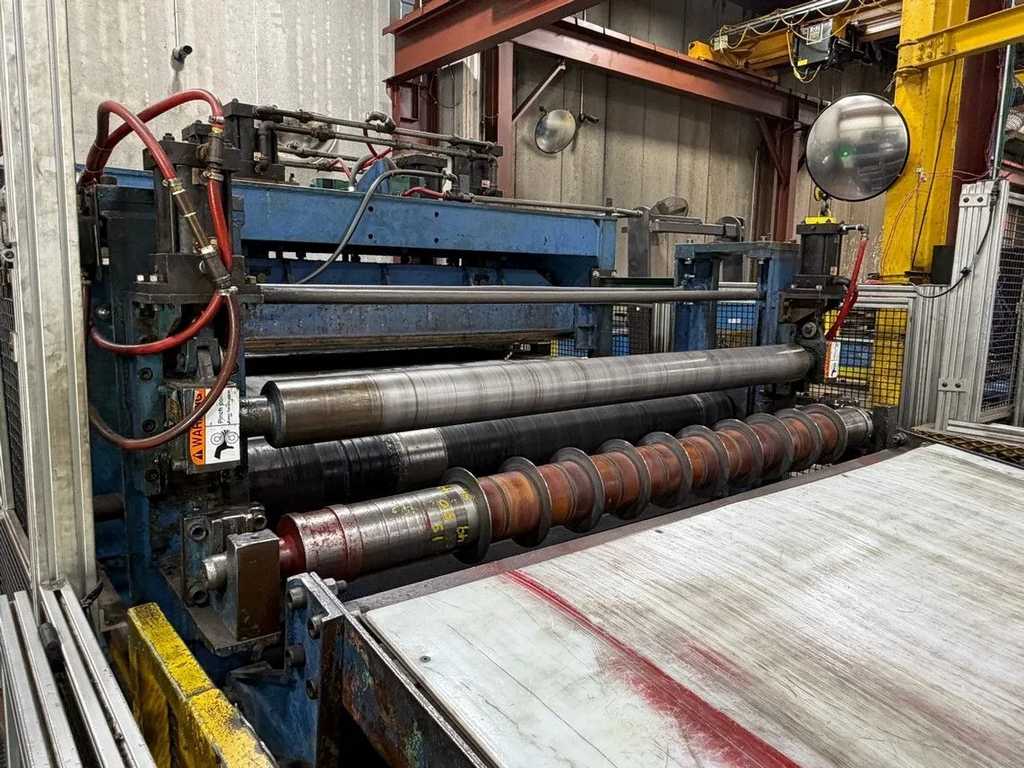

-(2) Slitter Heads (1 needs Rebuild):
8" Diameter Arbors
Swinger Outboard Support
Entry Pinch Rolls
Entry Side Guides, Manual Adjustment
AC Motor Assist

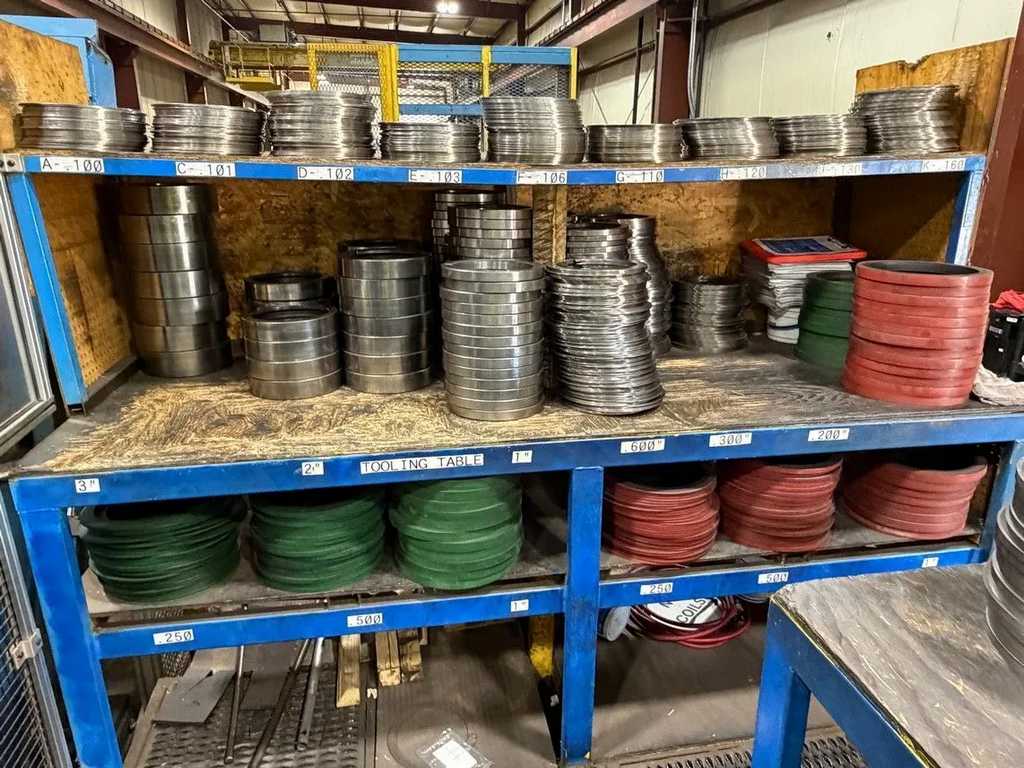

Slitter Tooling

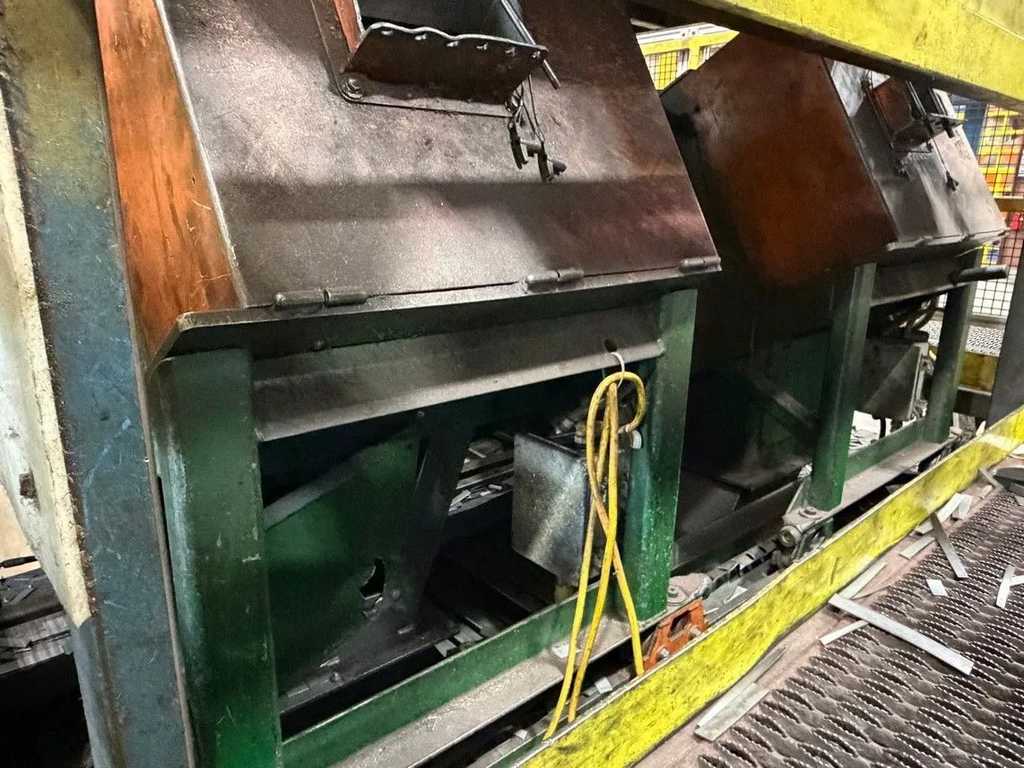

-Scrap Choppers: Sweed (2010)
Dual Chopper Heads
Spare Chopper Head
Scrap Conveyor

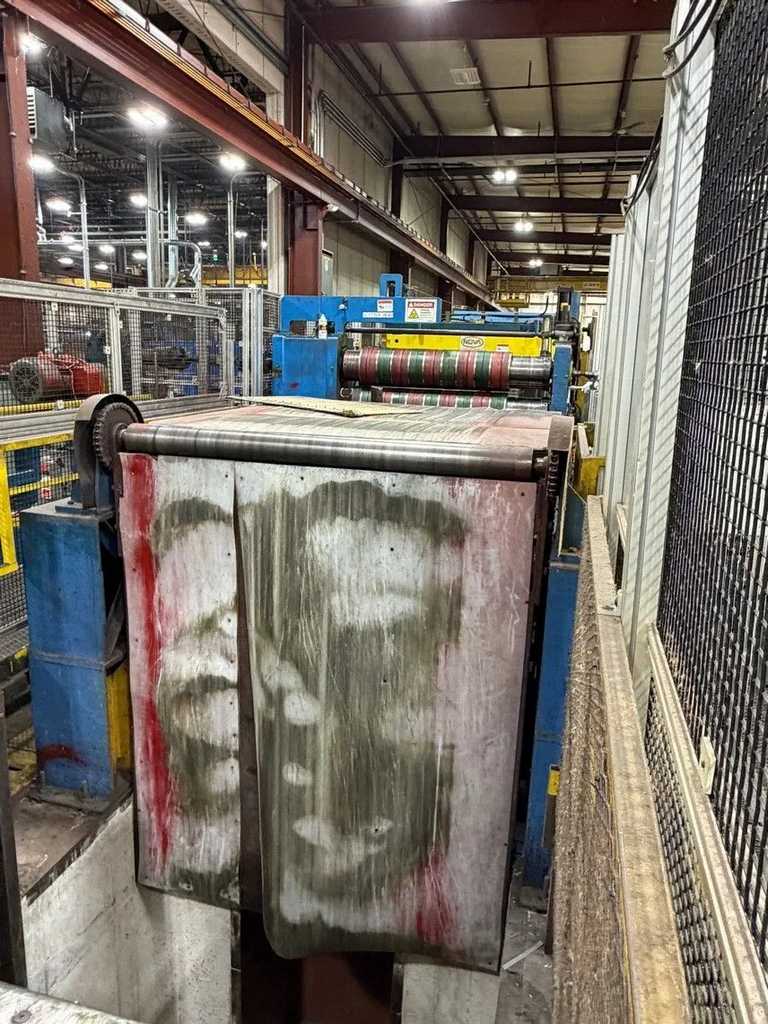

-Looping Pit Tables:

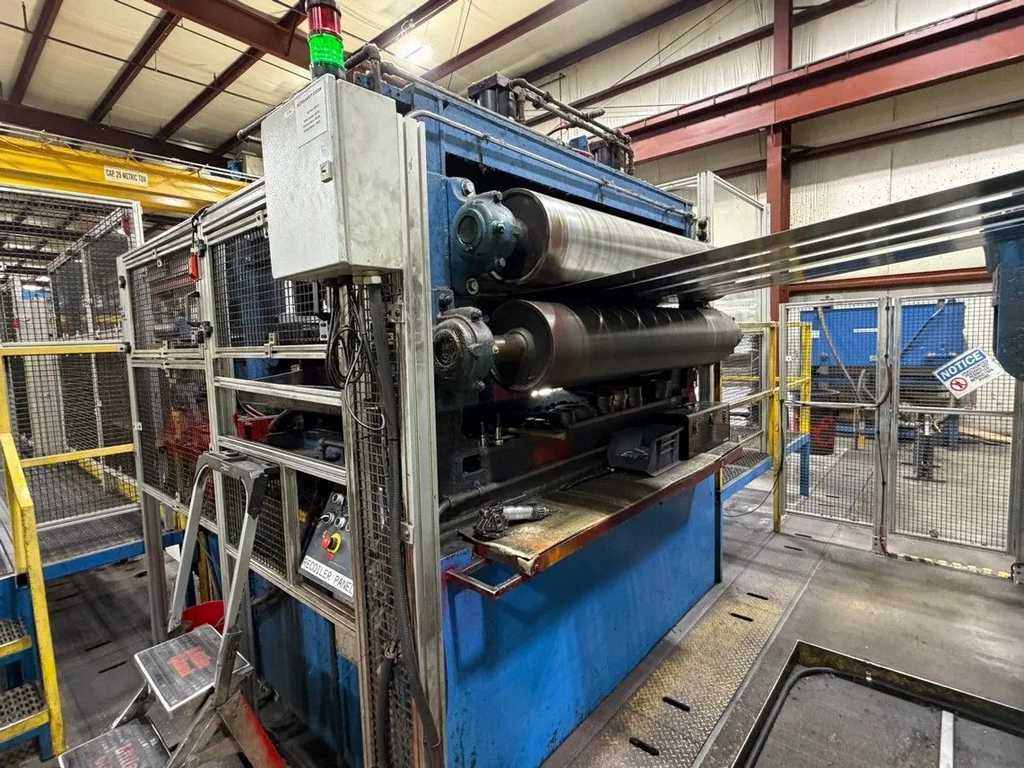

-Tension Stand: Nova
Entry Separator Bar
Entry Passline Roll
Dual Drag Tension Pads
Exit Passline Rolls

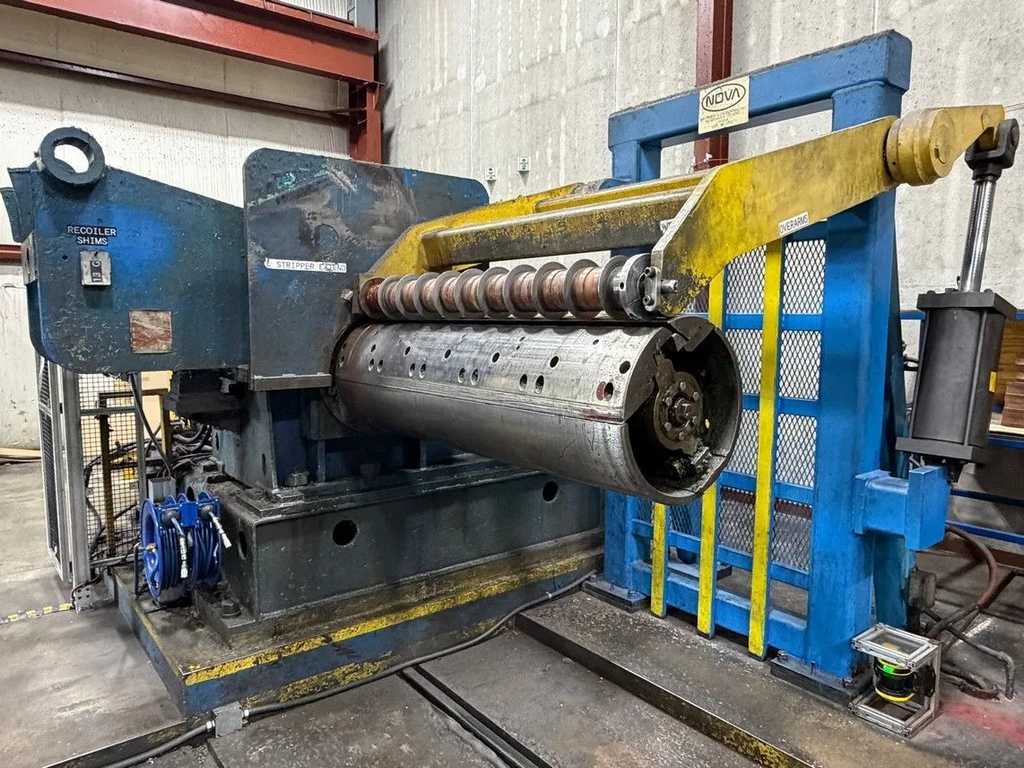

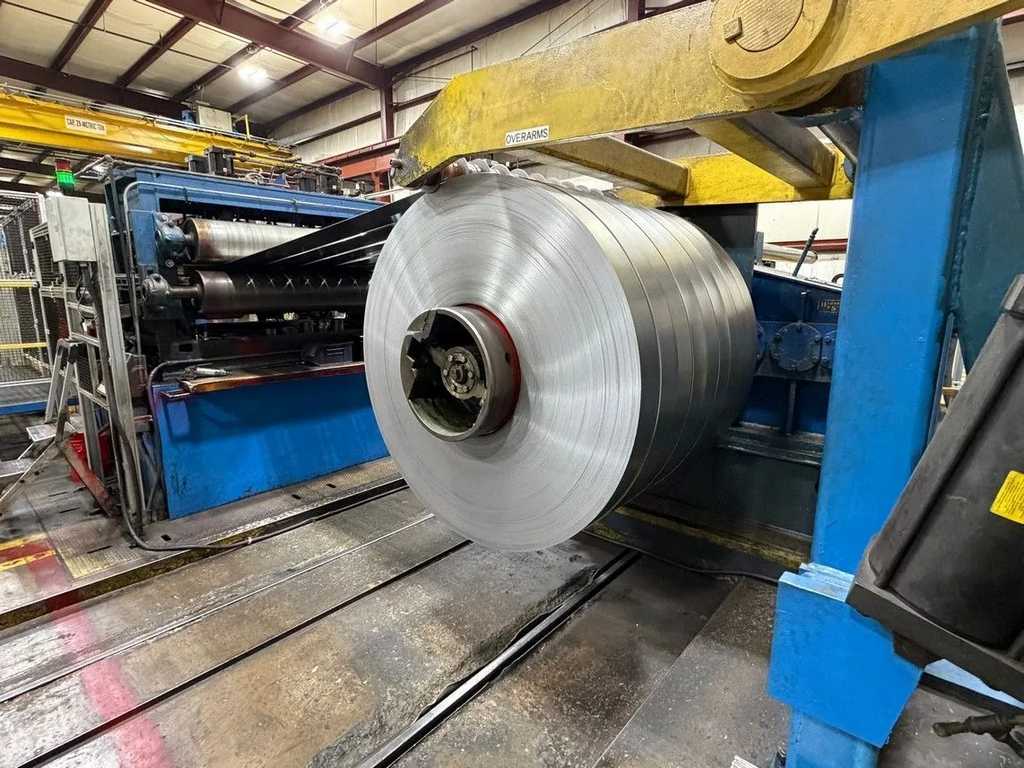

-Recoiler:
58" Wide Drum
20" Coil ID
Hydraulic Gripper and Expansion
Hydraulic Pushoff
100 HP DC Motor
Free Standing Overarm Separator

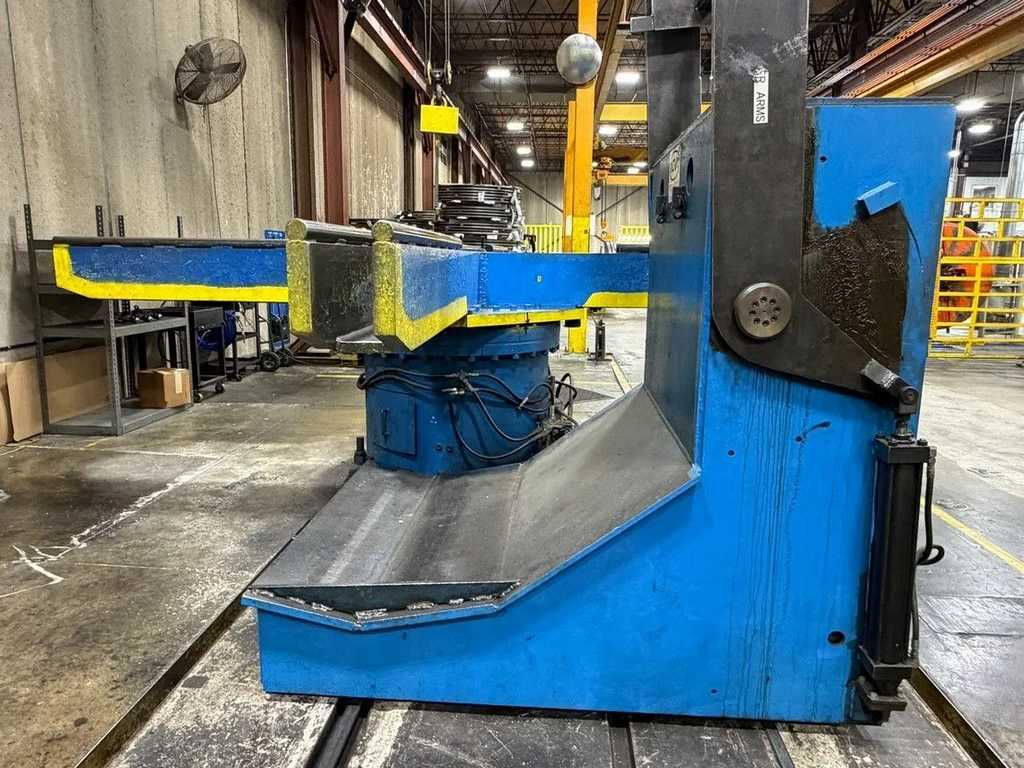

-Exit Coil Car:
Above Floor L-Shaped Design
Coil Keeper Arm
-Exit Turnstile:
(4) C-Hook Arms
Powered Rotation

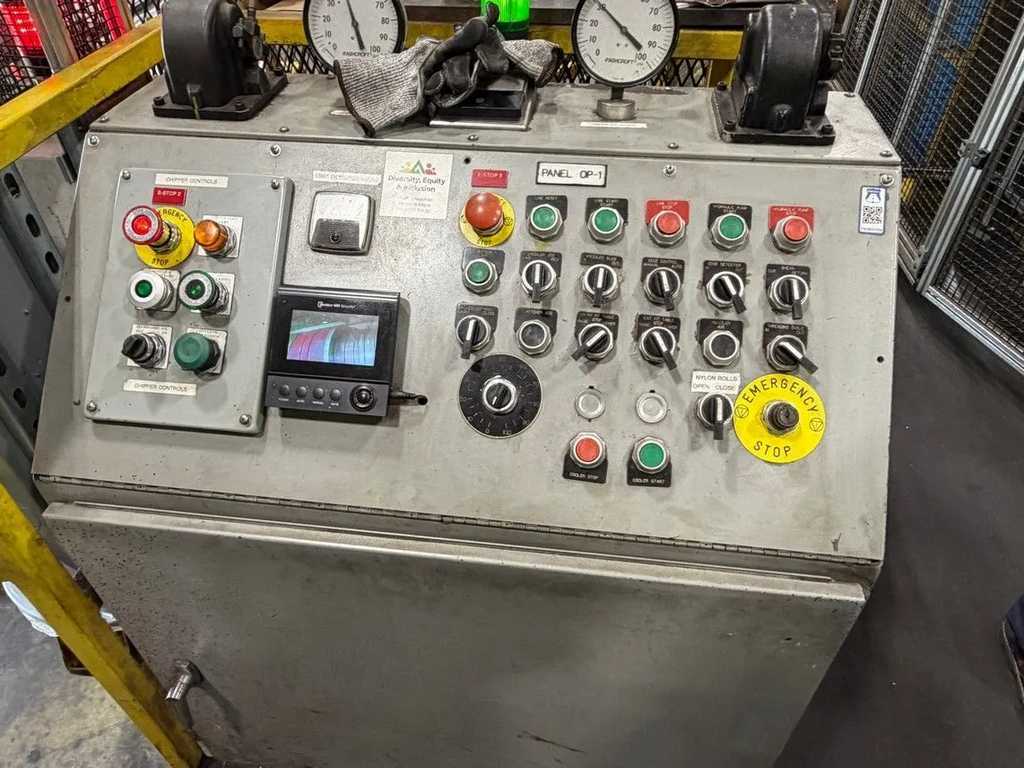

-Main Operators Control Panel:
|
