YEAR: 2005

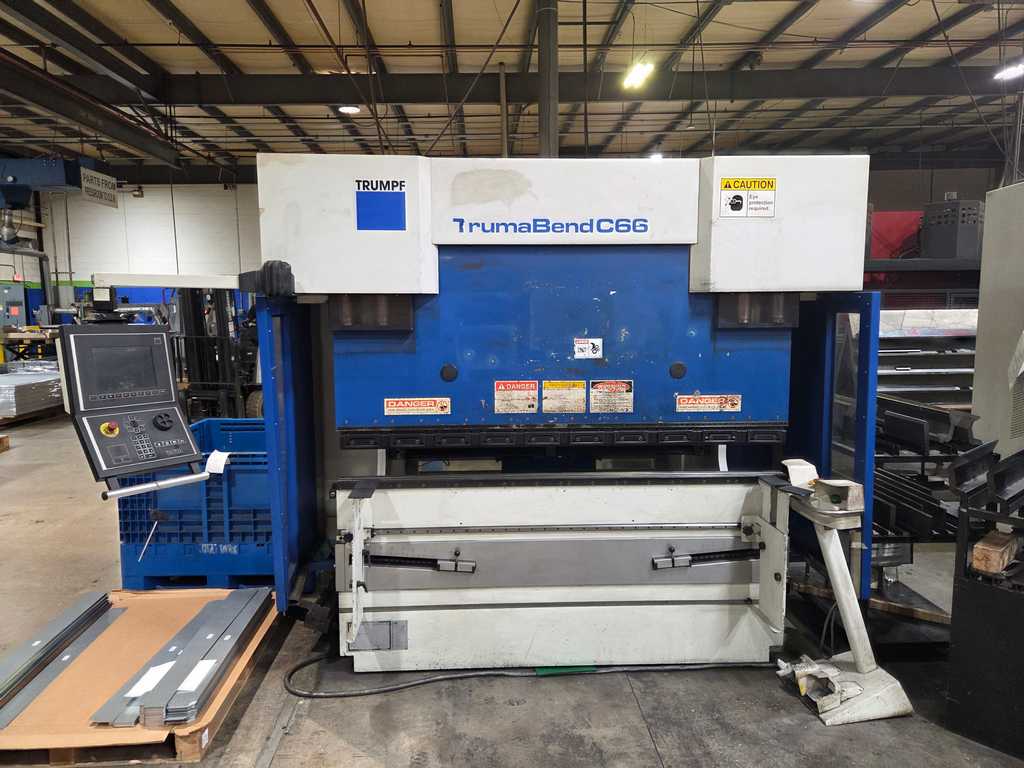

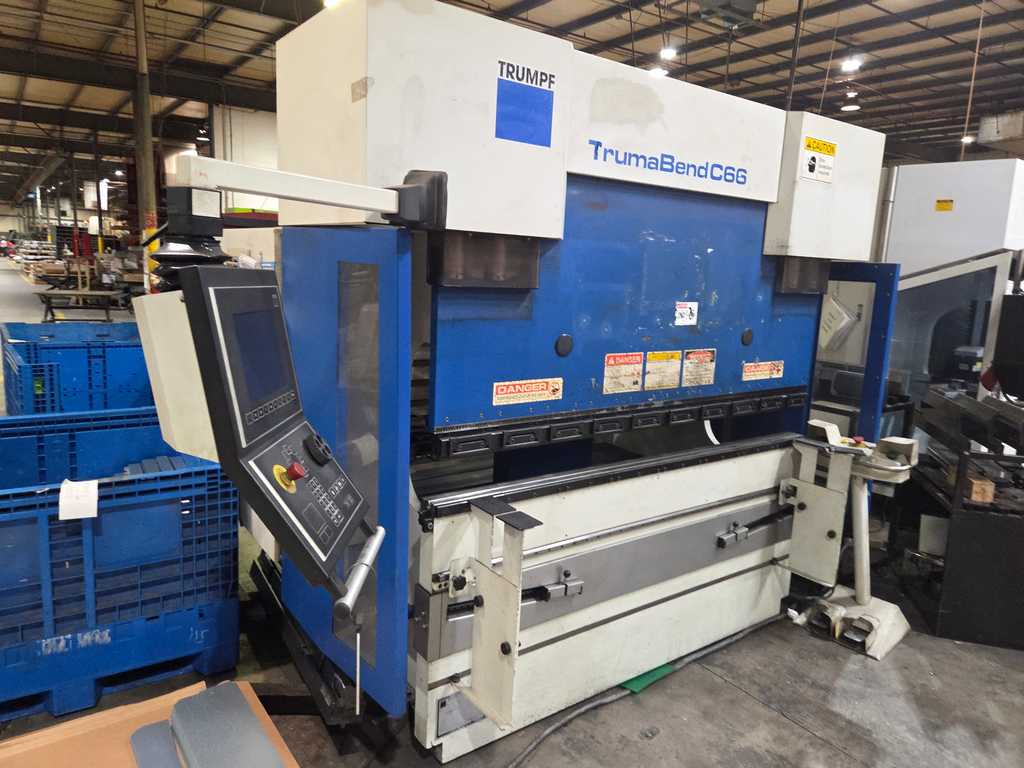

73 Ton Trumpf Press Brake

Model: TrumaBend C66
Tonnage: 73
Bed Length: 80"
Distance Between Housings: 69"
Length Between the Housings: 93"
Stroke: 7.87"
Open Height: 14"
Closed Height: 5.9"
Y-Axis Rapid Downward Movement: 200mm/Sec.
Y-Axis Operational Speed Max.: 15mm/Sec.
Press Speeds: Rapid Advance: 472 IPM
Bending: 5 IPM
Return: 472 IPM
Main Motor HP: 10
Max. Operating Pressure: 4,466 PSI
Motor Specs: 460 V
Approx. Weight: 12,500 lbs.
Approx. Dimensions: 102" x 69" x 92"

Consisting of:

-Palm Buttons mounted on Pedestal Station with Foot Pedal
-Delem DA-65TW Graphic Control
-Trumpf CNC Multi Axis Back Gauge (X, Y, R, Z1, Z2)
-Misc. Tooling

-Removed and in storage
