60" x 0.139" x 30,000# Rowe/Voss Cut To Length Line W/6 Hi Leveler
Width Capacity: 60"
Coil Weight: 30,000#
Thickness: 0.019" - 0.139" @ 30,000 PSI Yield
0.019" - 0.125" @ 40,000 PSI Yield
0.022" - 0.107" @ 50,000 PSI Yield
Line Speed: 150 FPM
Line Direction: Right to Left
Consisting of the following:
-Paxson Coil Car:
Above Floor Type
Self-Contained Hydraulics
Hand Pendant Control
-Rowe Uncoiler:
Model: 30060-DSV
S/N: 16619
Capacity: 30,000#
Coil O.D. Capacity: 60"
Powered Expansion
Variable Speed Driven Mandrel
Overarm Holddown Roll
-Paper Winder:
-Rowe Thtreading Table:
-Rowe 11 Roll Straightener:
Model: 11V60-HD
S/N: 16621
Capacity: 0.030" - 0.110" Mild Steel
5 Straightening Rolls
2 Pinch Rolls
4 Coil Breaker Rolls

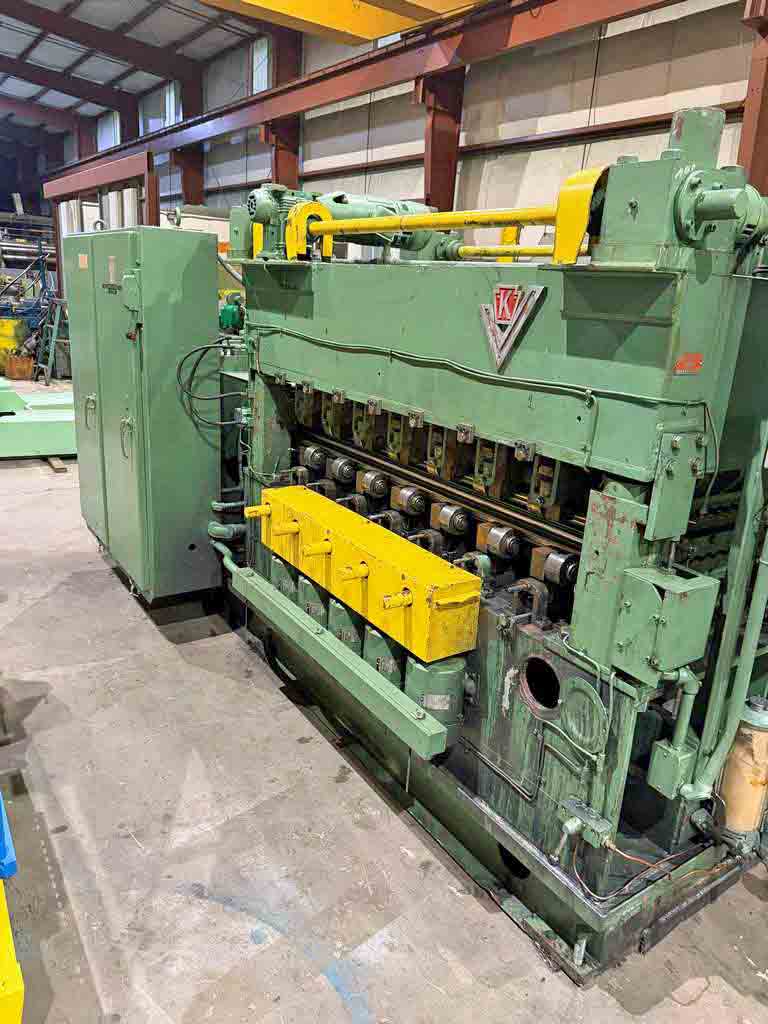

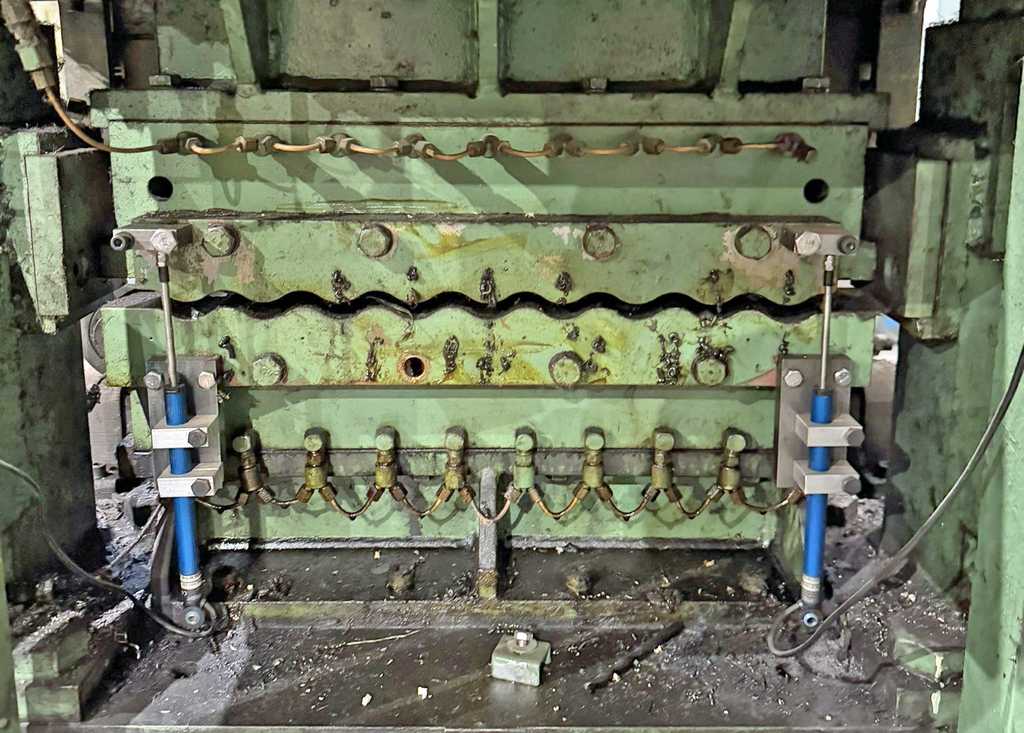

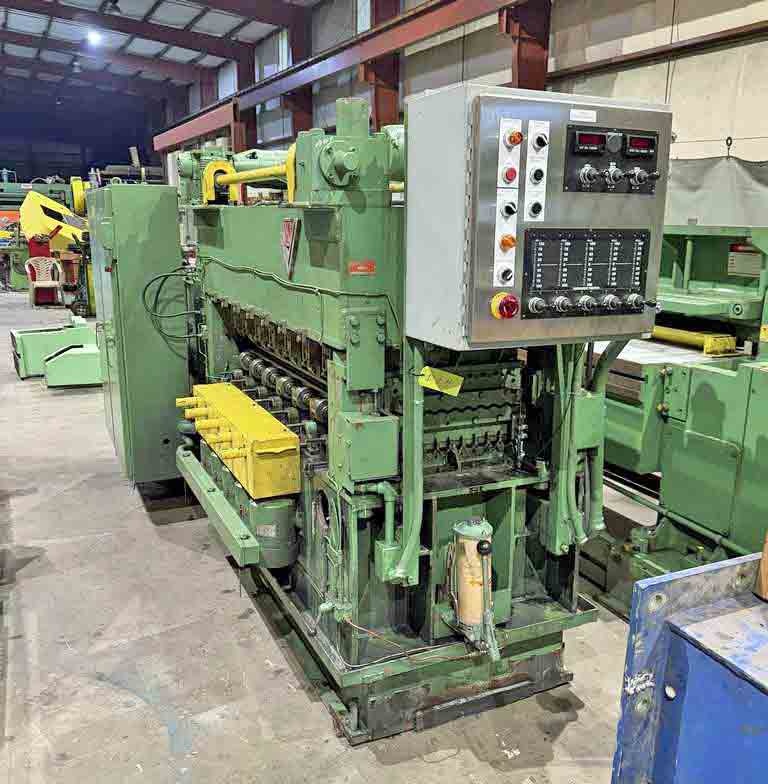

-Herr Voss Precision Leveler: 6 HI
Converted to 6 HI in 2023 by Herr Voss
Model 66/1.750-19/7-6HI-R.H.

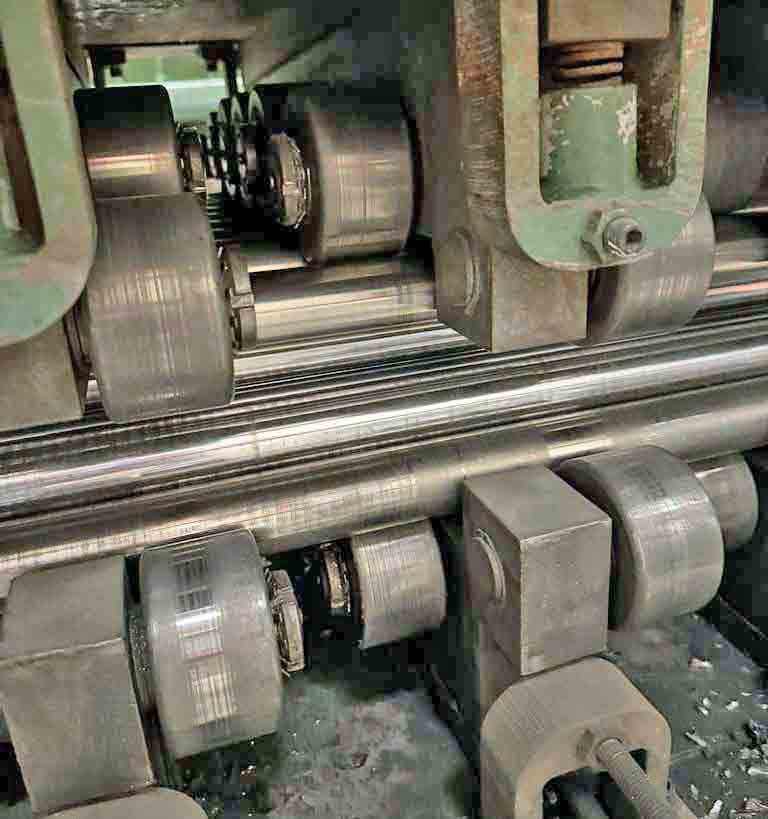

19 Work Rolls, 9 over 8
1.750" Dia. x 66" Face Rolls
7 Flights of Back-ups
5 Flights Motorized
75 HP Reliance DC Drive Motor, w/Blower
1750/2100 RPM, 500 V

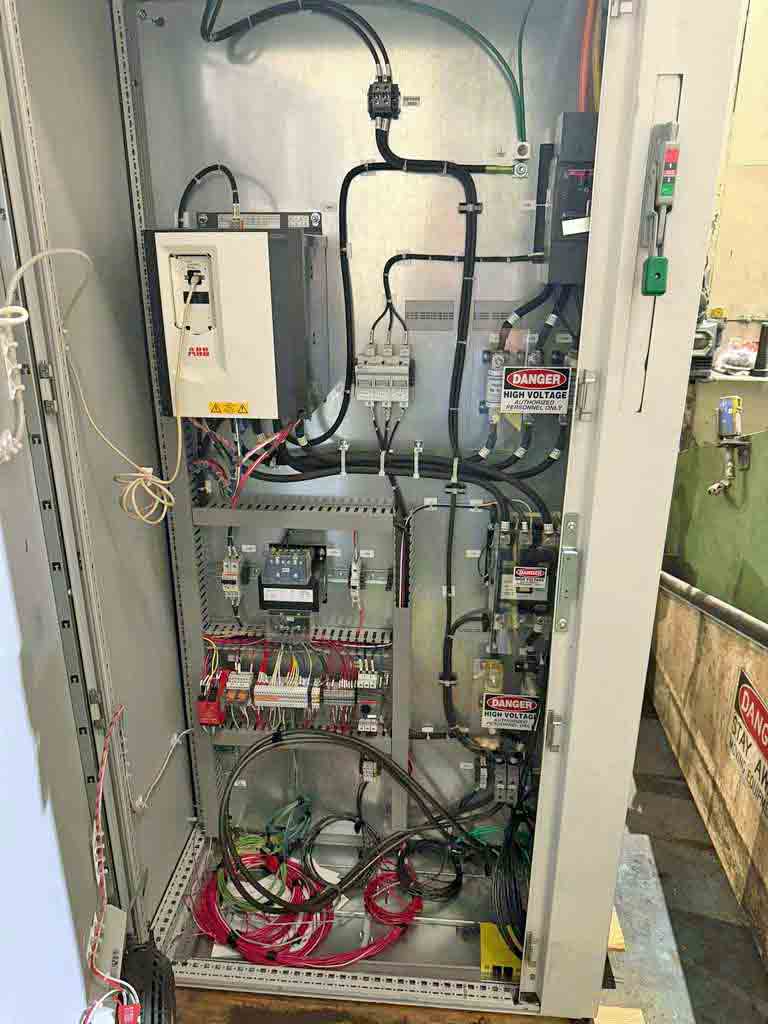

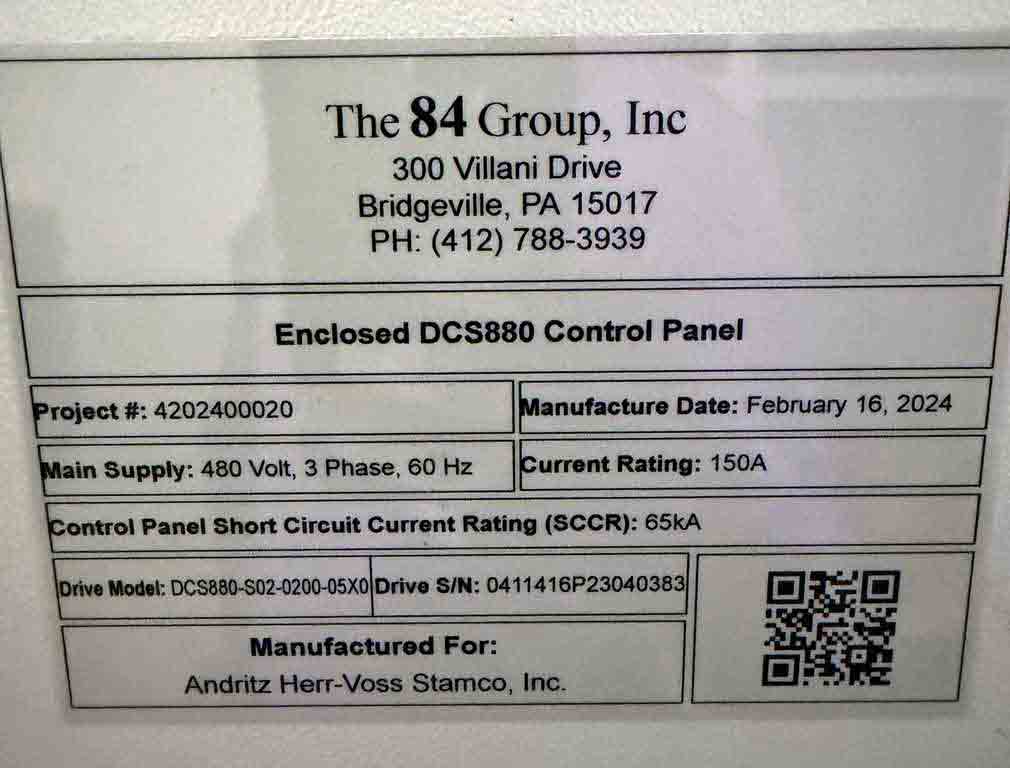

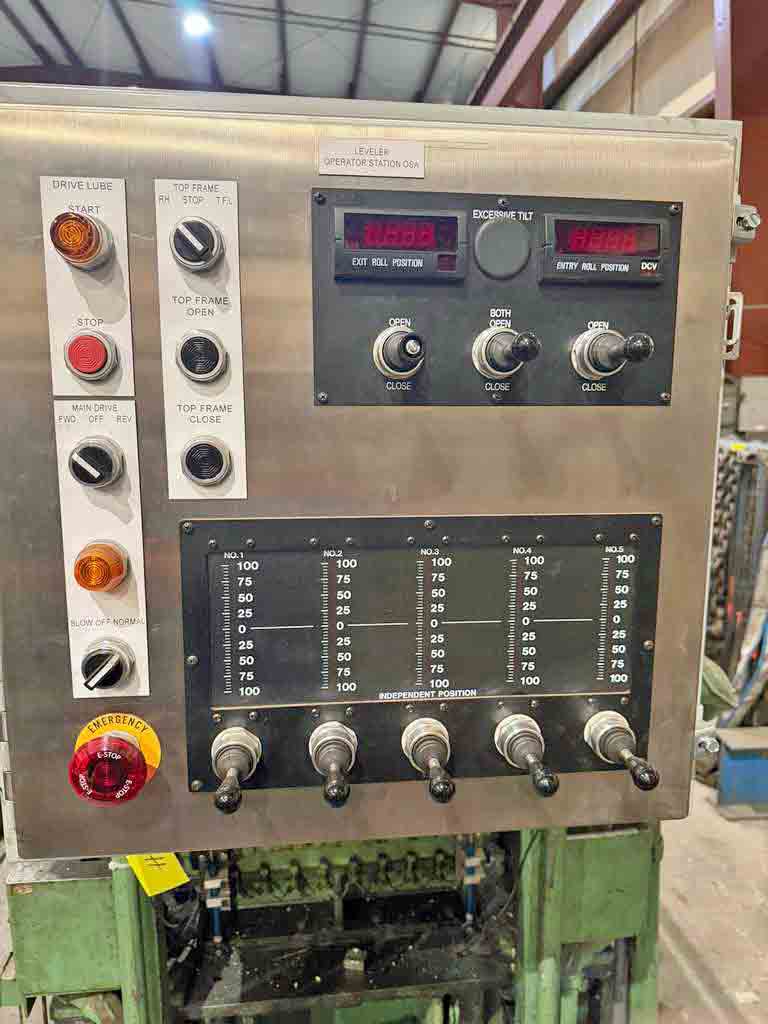

New Controls in 2024
-Rowe Hump Table:
Entry Side Guides
Adjustable Hump
-Vinyl Applicator:

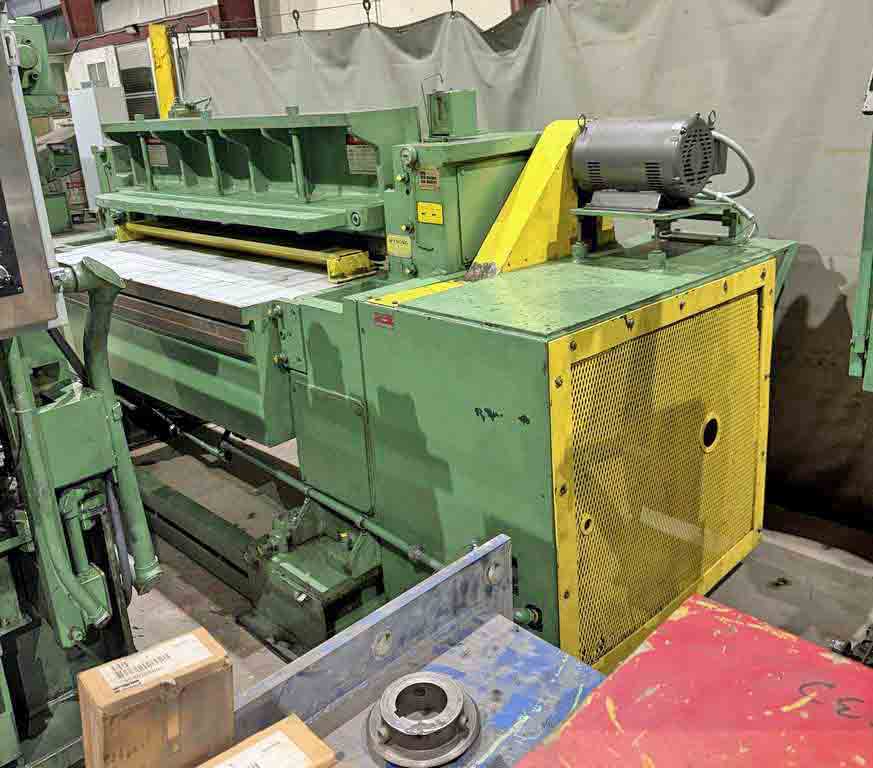

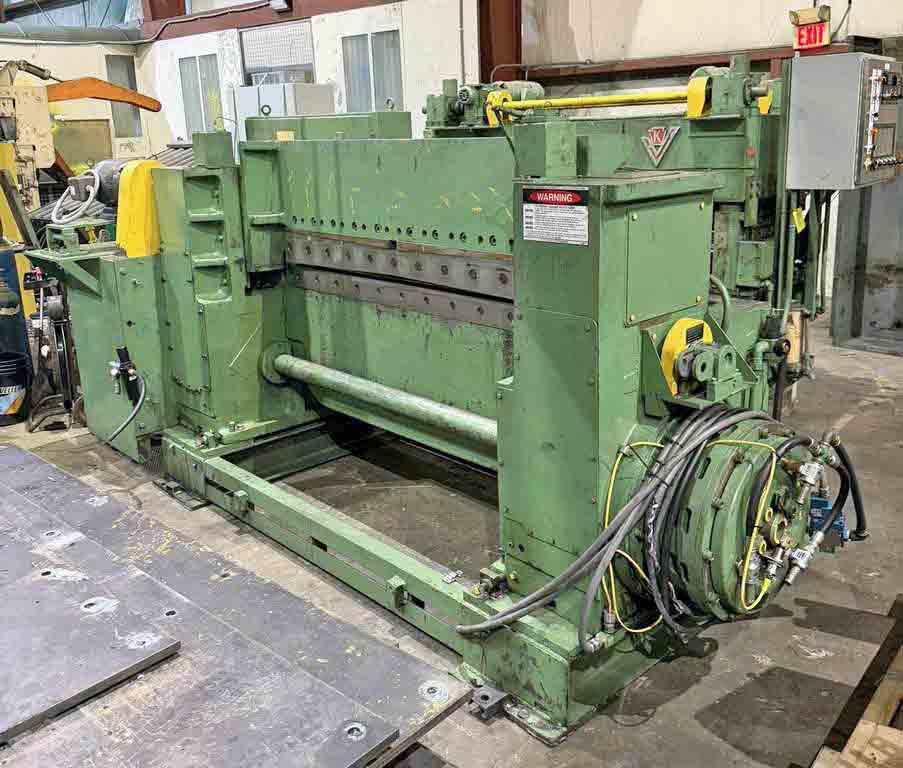

-Wysong High Speed Shear:
Bow-Tie Top Blade
Wichita Clutch and Brake
Baldor 15 HP AC Drive Motor
-Rowe Belt Runout Table & Gauge Head:
(2) Driven Belts
-Rowe Stacker:
Model: STKR-DTS-50-16
4 Side Skate Wheel Drop Stacker
Powered Width Adjustment
Powered Length Adjustment
Side Discharge
16' Long Capacity
-Line is in storage: Toledo, OH.
|
