72" x 0.325" x 72,000# Delta Cut To Length Line

Ref # 12061

Click on photo to enlarge

YEAR: 1997


72" x 0.325" x 72,000# Delta Cut-To-Length Line

Model: 72-72 CTL

-Coil Width: 72" (+ Mill Edge)
-Coil Weight: 72,000 lbs.
-Coil ID: 22" - 30"
-Coil OD: 36" - 80"
-Gauge Range: 0.010" - 0.325"
-Sheet Width: 20" - 72"
-Sheet Length: 15" - 305"
-Line Direction: Right to Left

Consisting of the following:

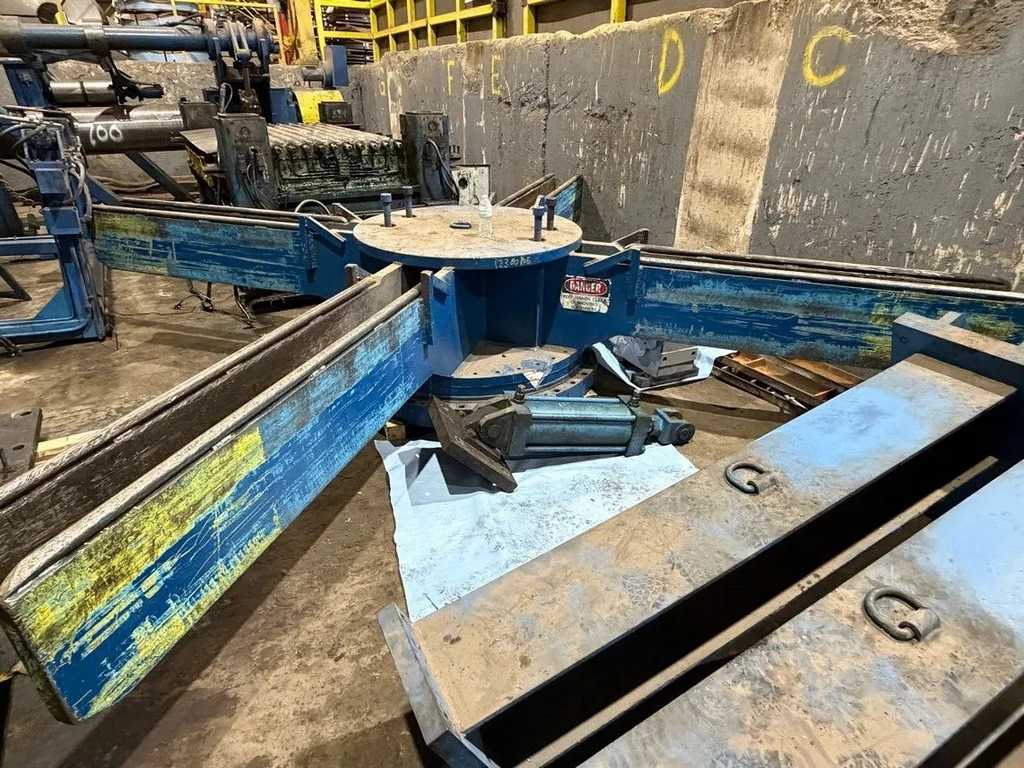

-Entry 4 Arm Turnstile:
C-Hook Type Arms
Powered Rotation

-Entry Coil Car:
Above Floor L Type

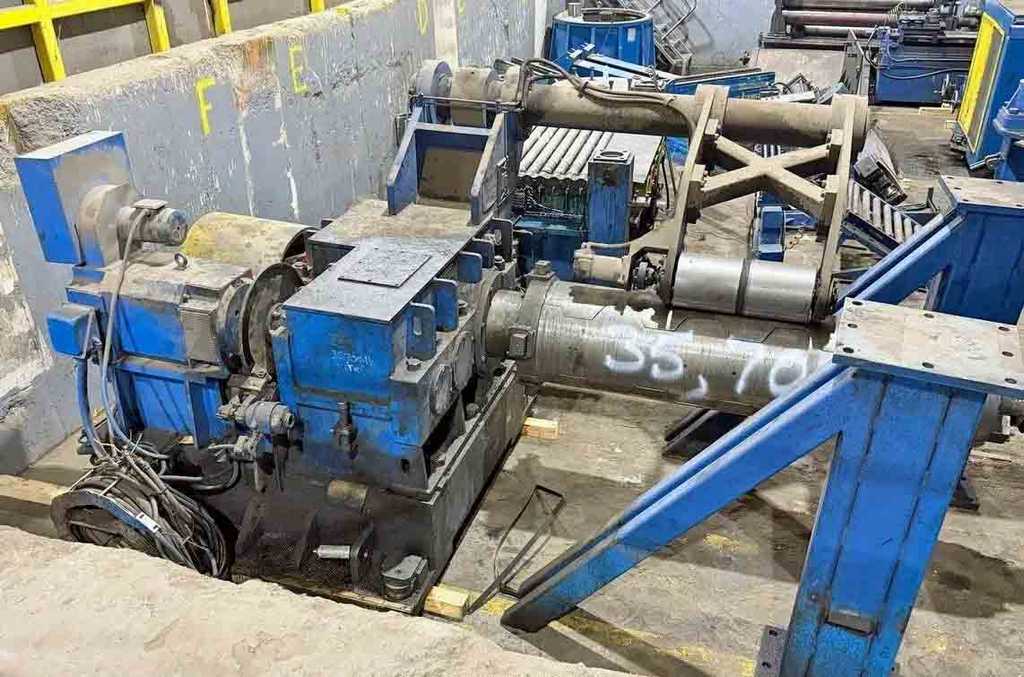

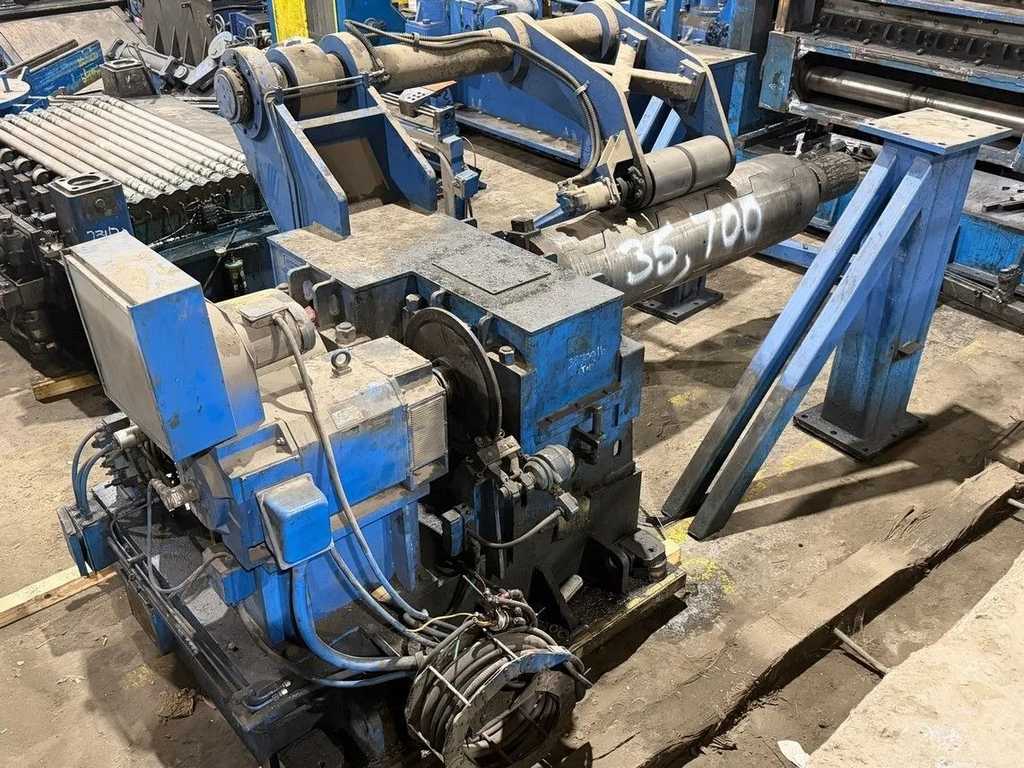

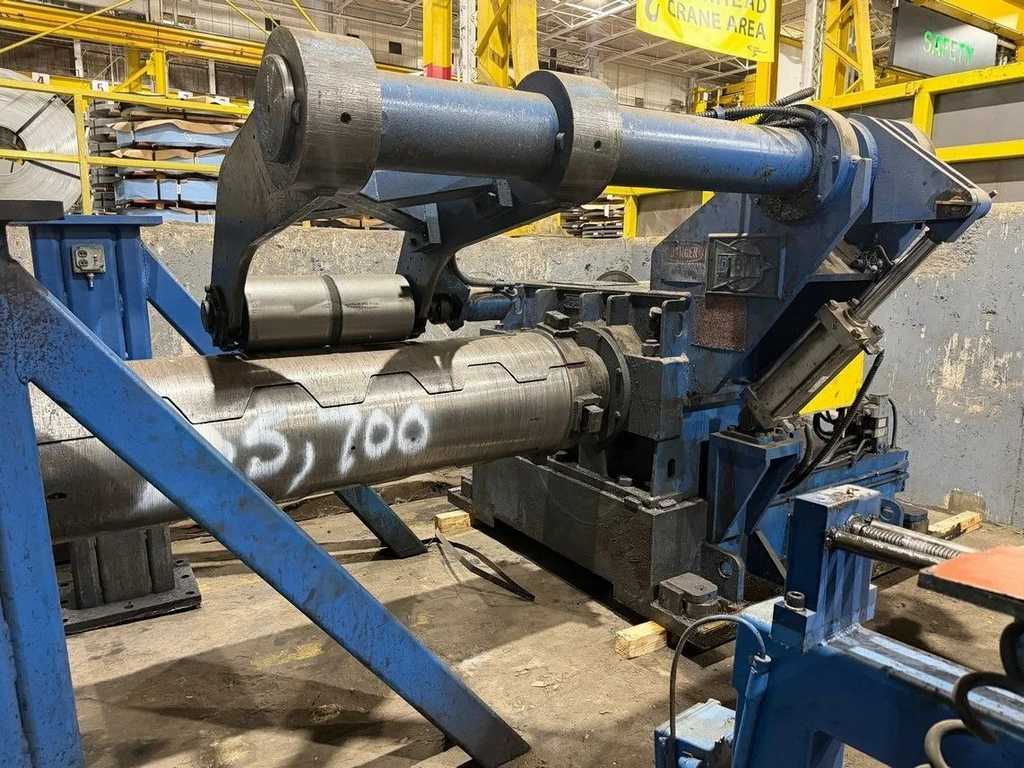

-Uncoiler:
Hydraulic Expansion
Pumpkin Tooth Mandrel
DC Motor Driven
Air Operated Disc Caliper Brake
Powered Holddown Roll
Sliding Base

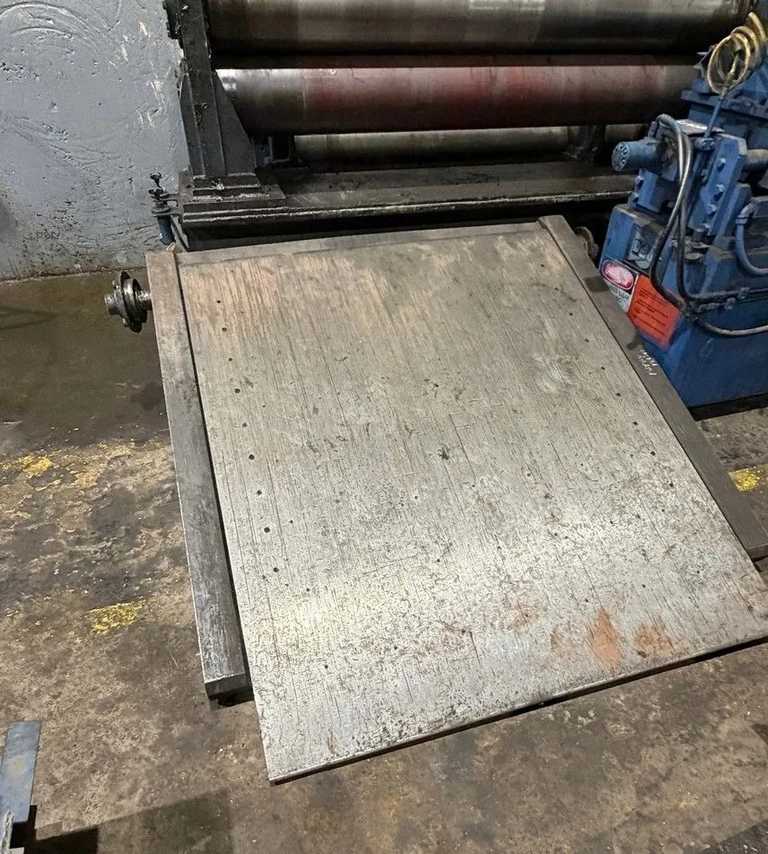

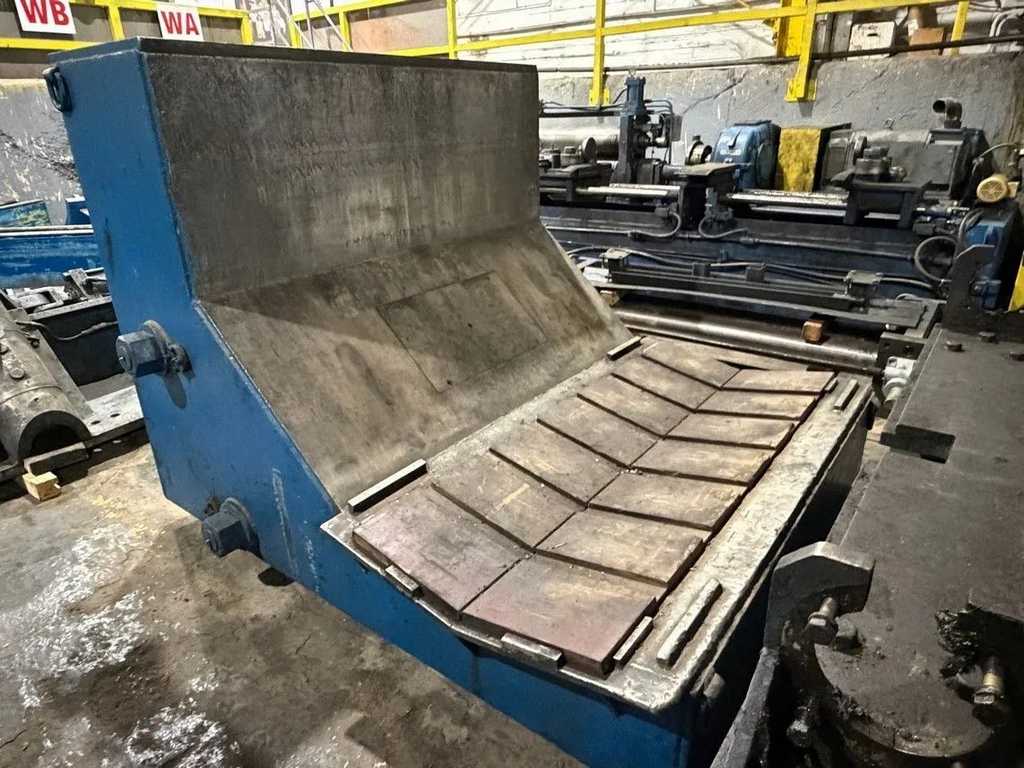

-Peeler Table:

-Entry Side Guides:

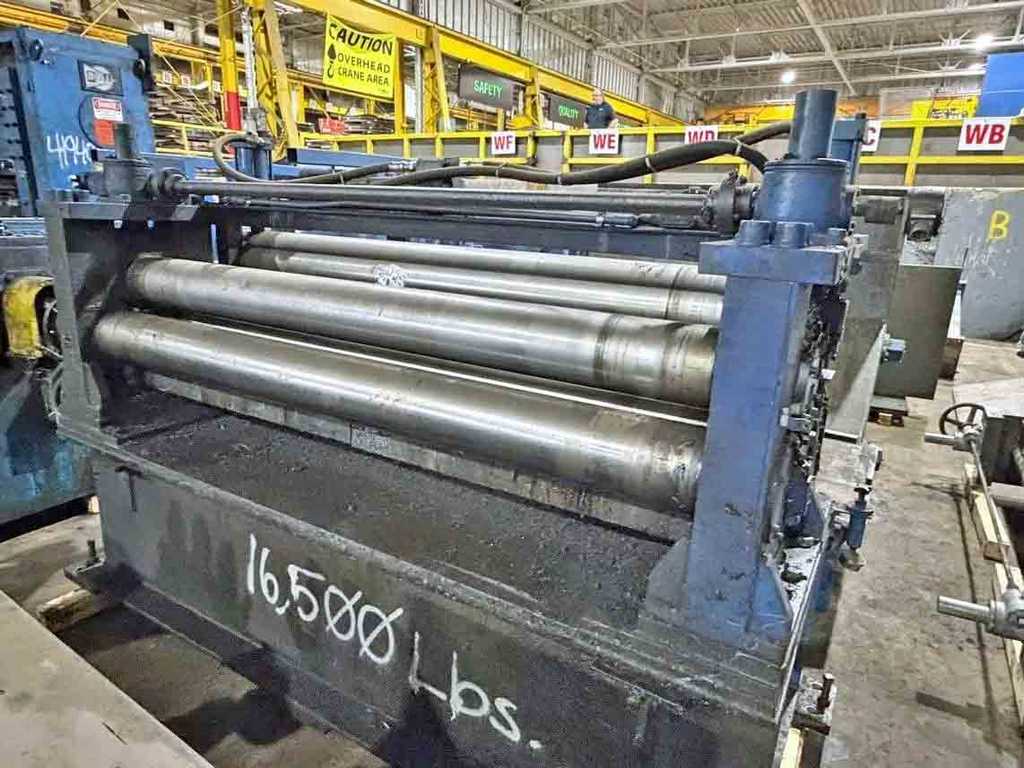

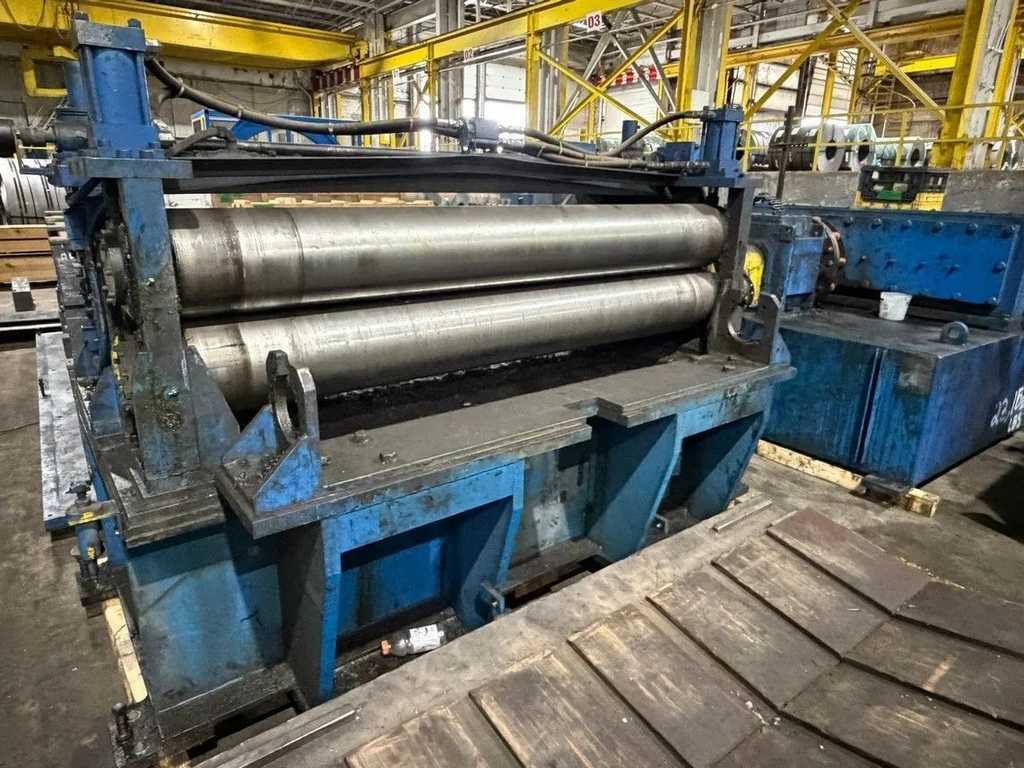

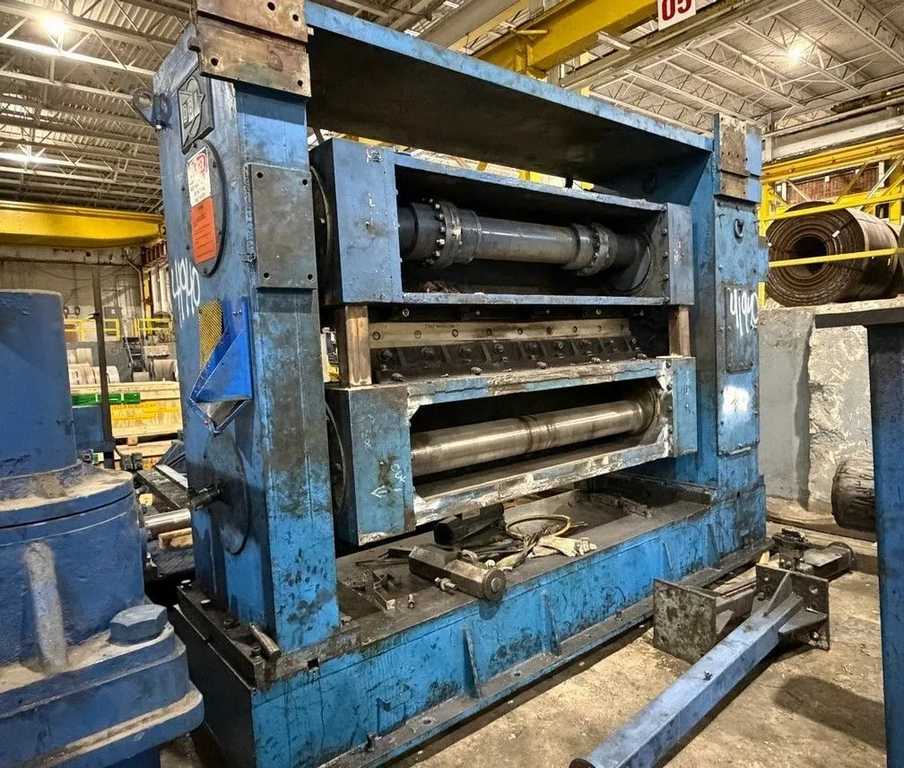

-Heavy Gauge Flattener:

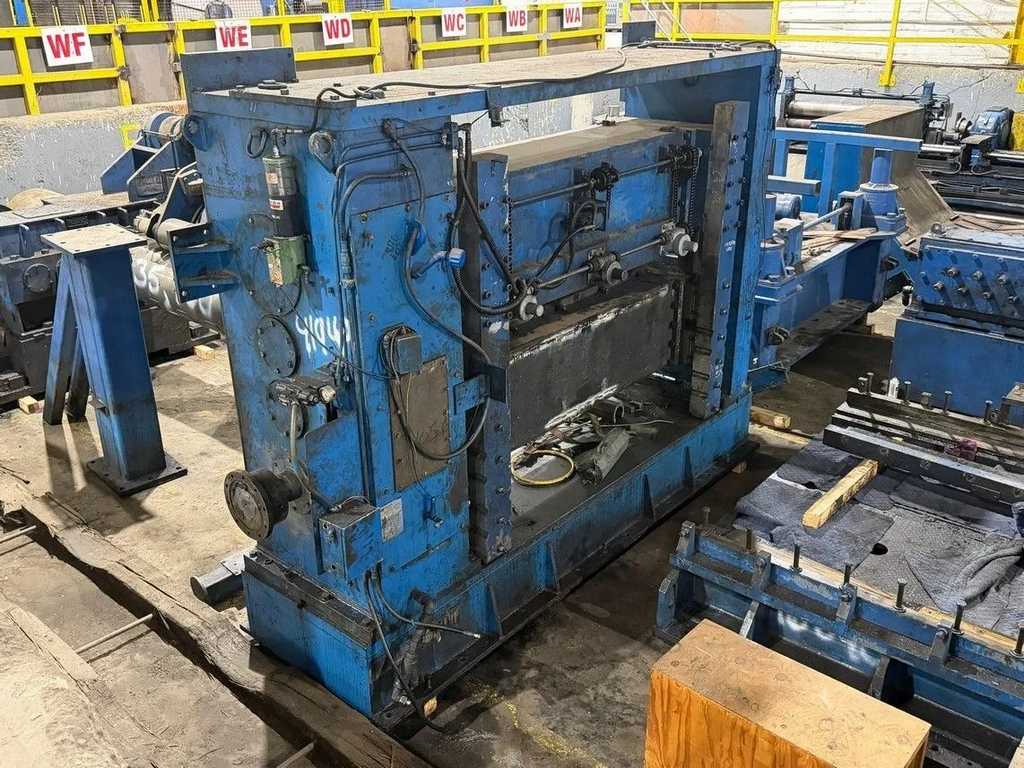

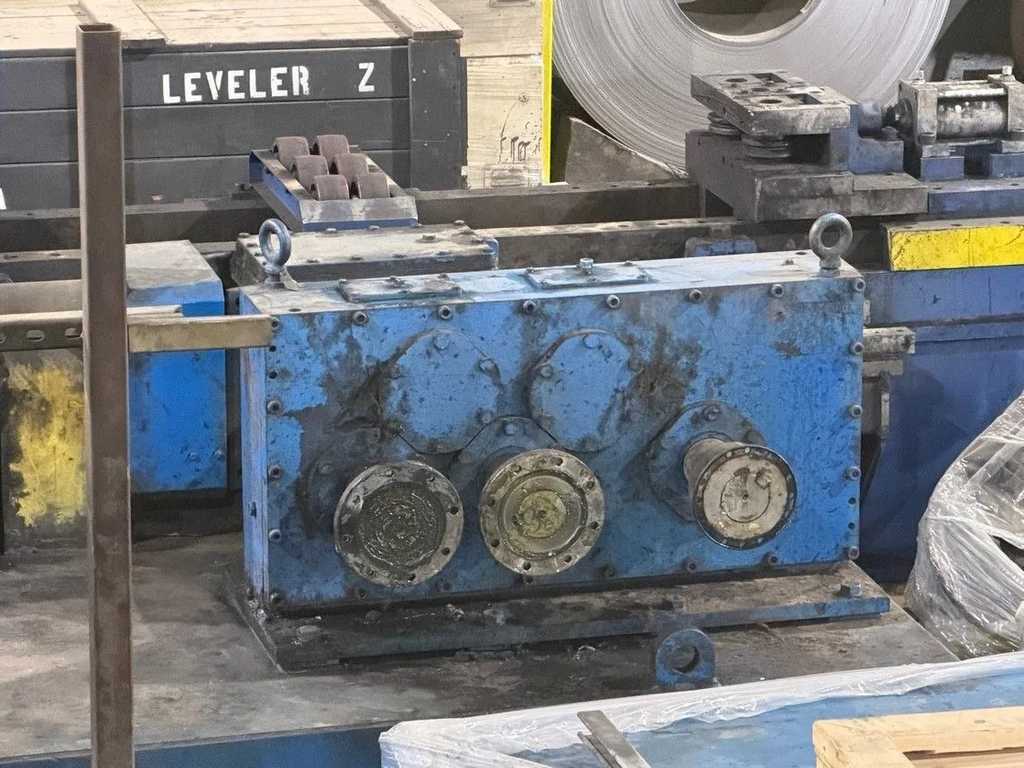

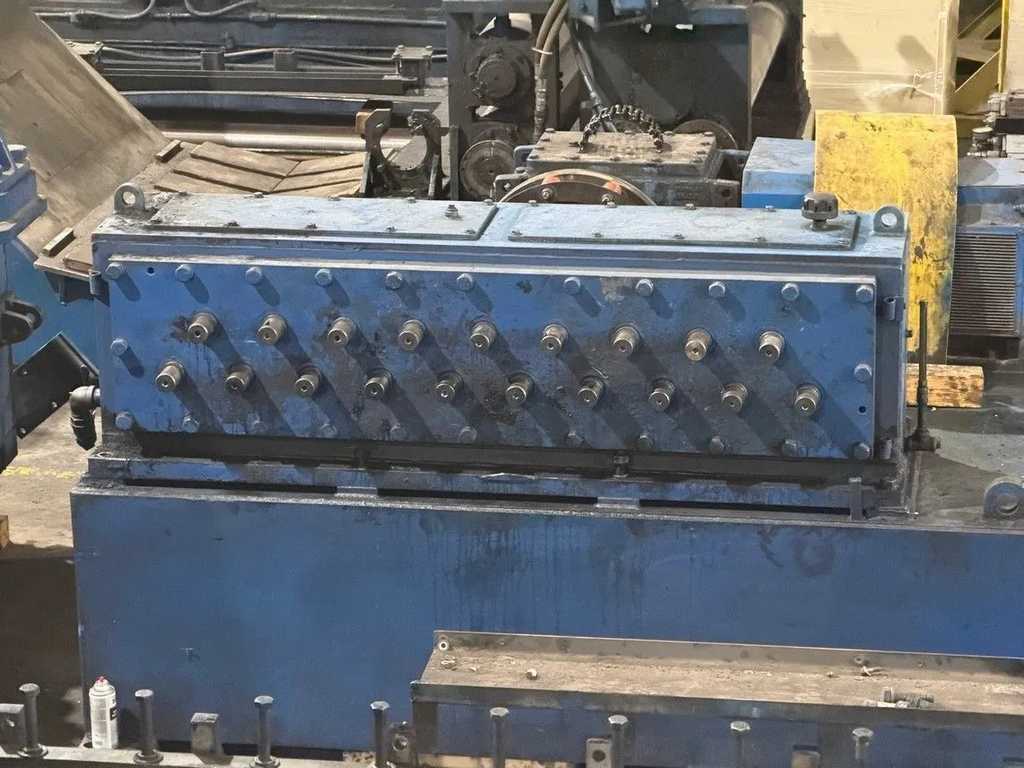

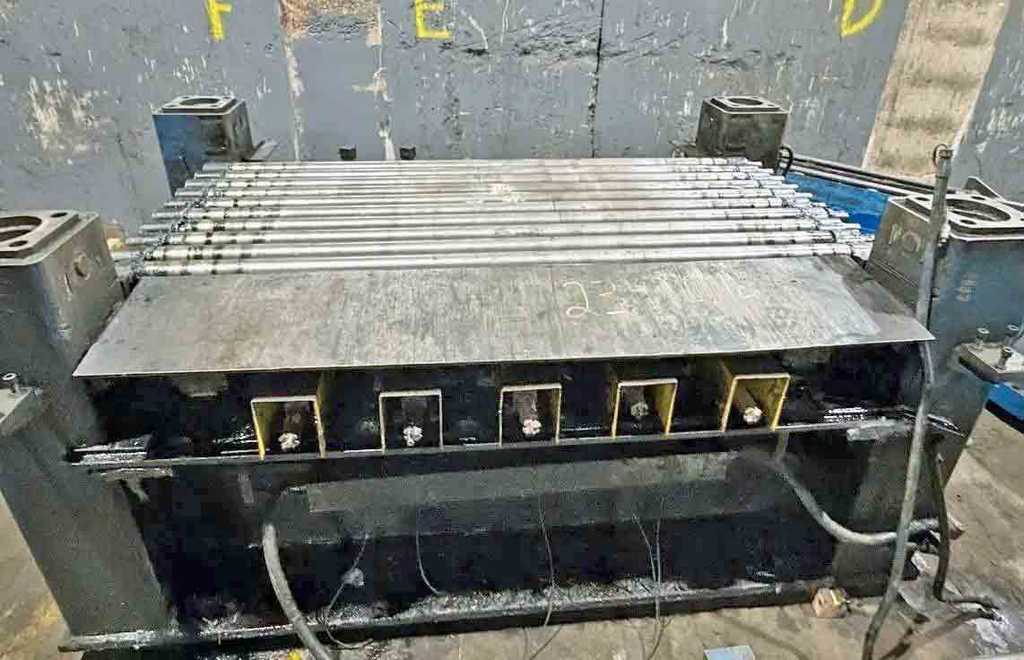

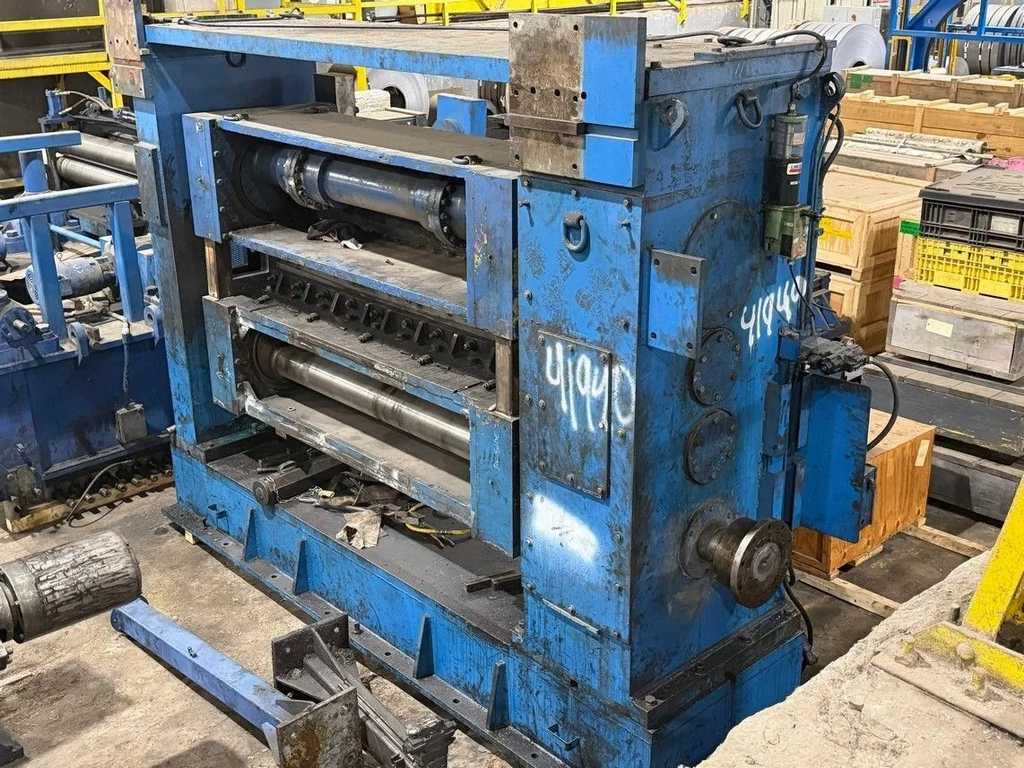

-19 Roll Leveler:
9 over 10 Work Rolls
7 Flights of Backups, 5 Flights Adjustable

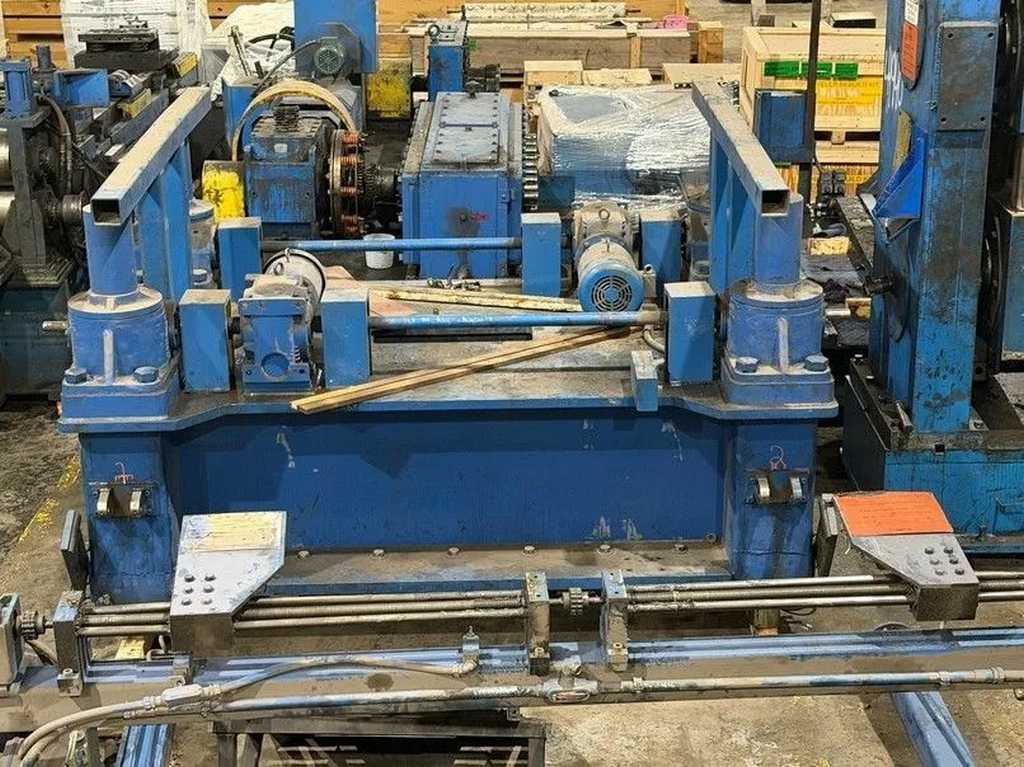

-Rotary Shear:

-25' Stacker:
20,000 lb. Bundle Capacity

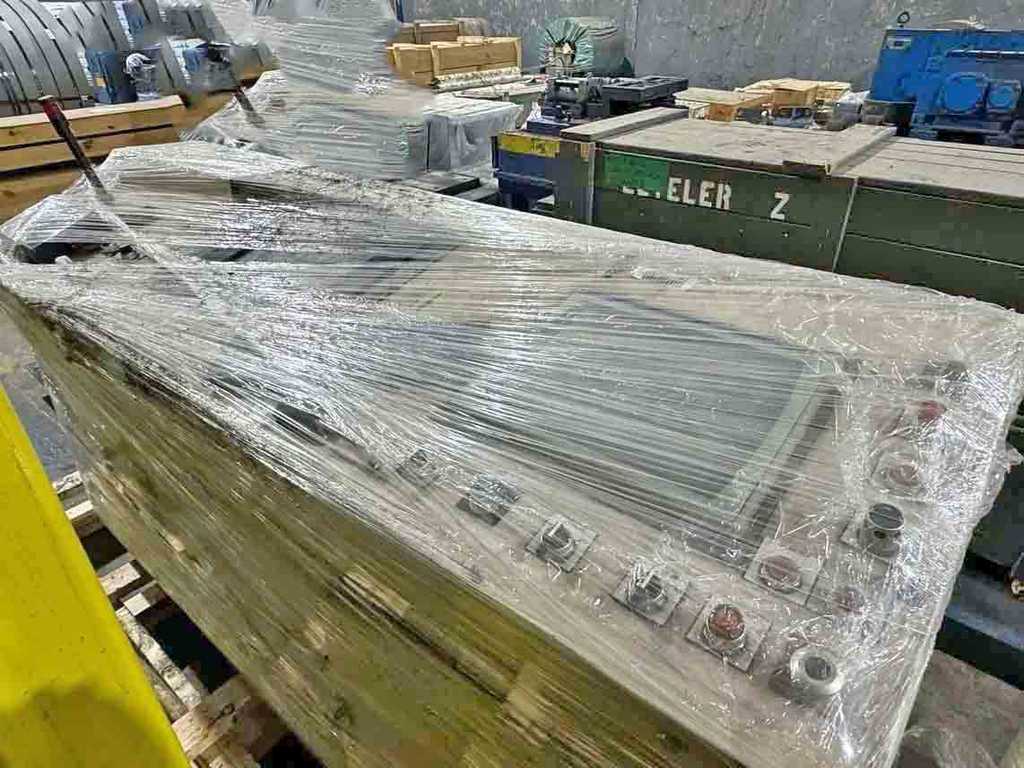

-Main Operators Control Panel:

-Removed and in storage:
