72" x 0.500" x 60,000# Delta Cut To Length Line
Consisting of the following:
-"L" Type Coil Car:
52" Wide Deck
40" Centerline of "V" to side mast allowing for an 80" OD Coil
9" Dia. x 27" Long Lift Cylinder Body
Approx. 15" from floor to bottom of "V" Cradle
Self-Contained Hydraulic Power Unit

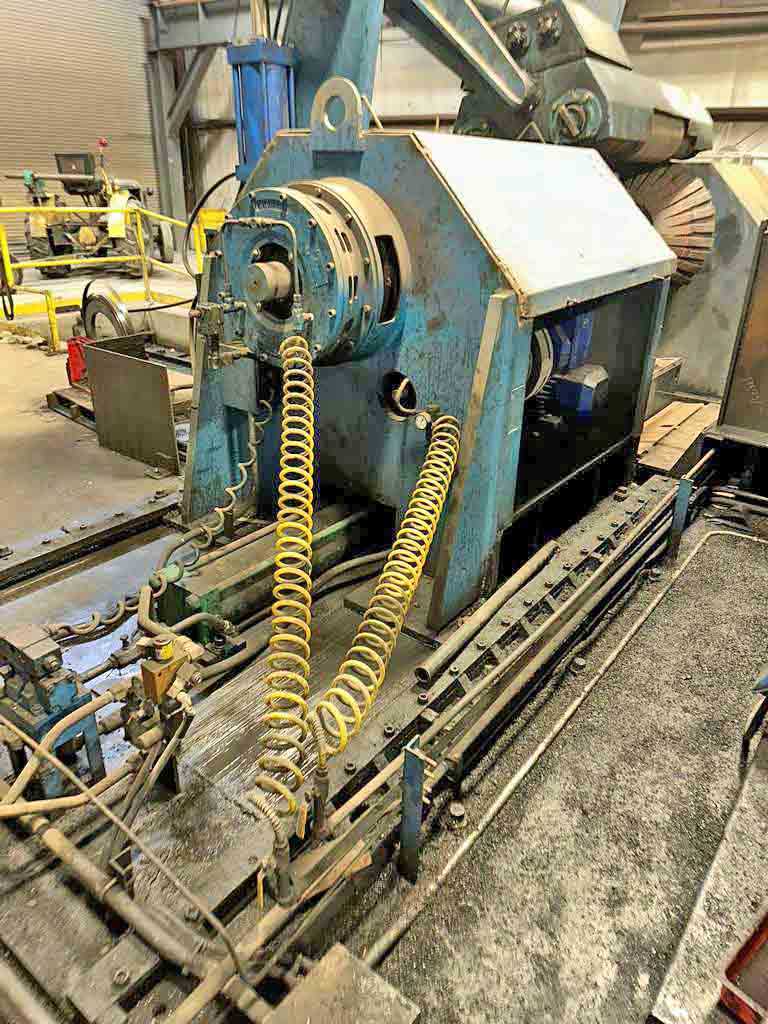

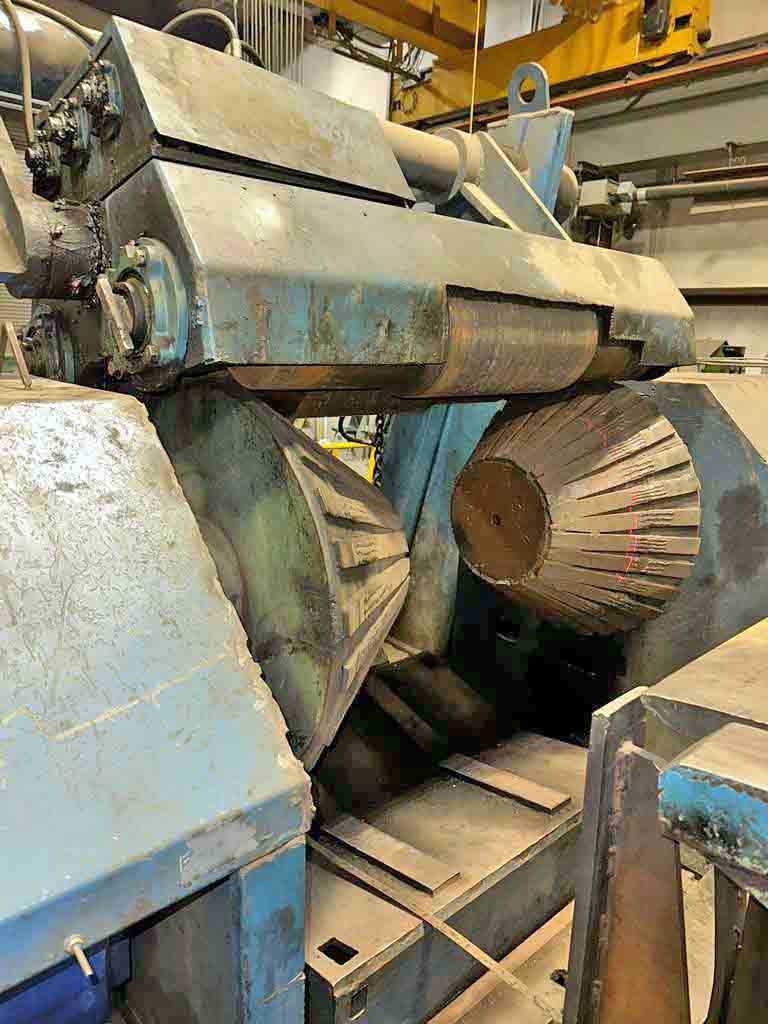

-Delta Cone Type Uncoiler:
Solid Non-Expanding Mandrels
Sliding Bases
Wichita Brakes on both Mandrels
45" from Centerline of Mandrel to base
Feedup Drive, Renold WormMaster 60:1 Reducer & Motor
Wichita Clutch
-Delta Entry Unit:
Fully Articulating Peeler Table pivots up and down and extends.
Pinch Rolls - 10" Dia. x 78" Face

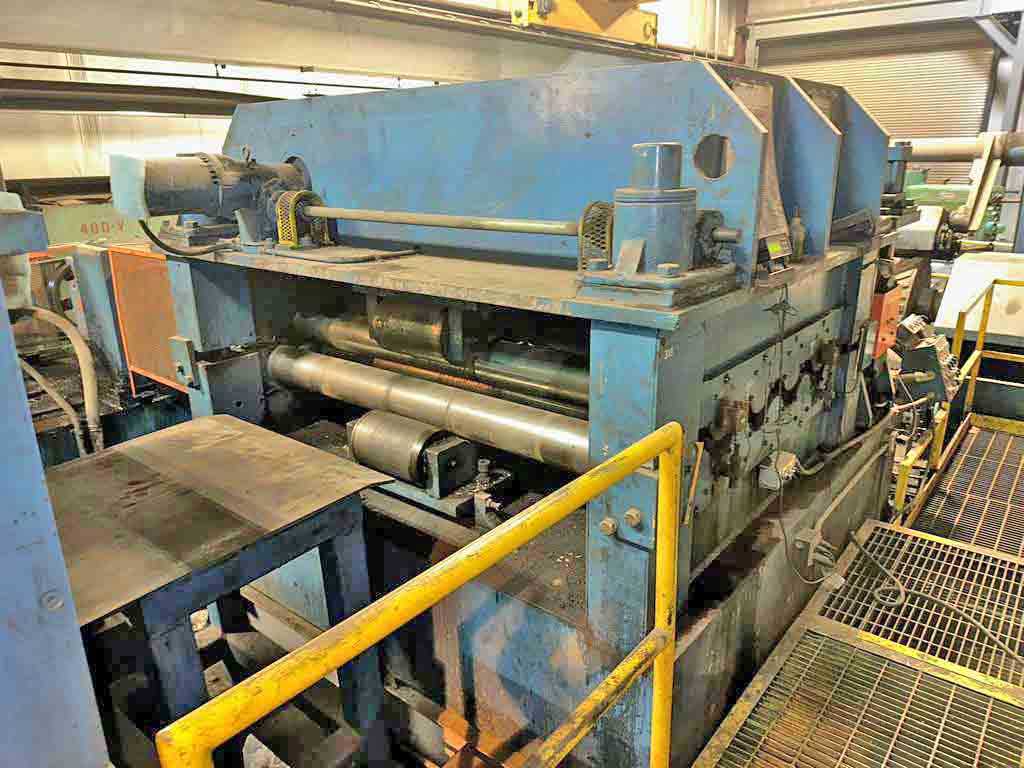

-Delta Straightener:
9 Work Rolls
10" Dia. x 78" Face Rolls (needs confirming)
4 over 5 Roll Configuration
One Set of 14.5" Wide Backups Rolls on Center of Work Rolls

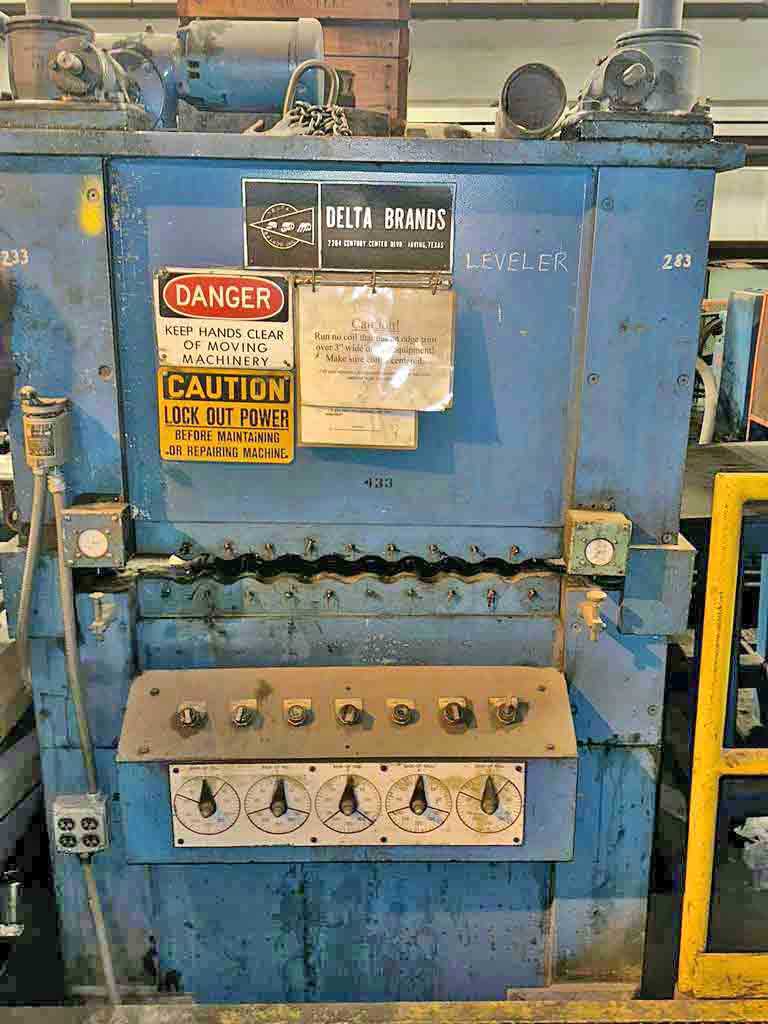

-Delta Leveler:
19 Work Rolls
2.5" Dia. x 78" Face Work Rolls
9 over 10 Roll Configuration
5 Adjustable Flights of Backup Rolls (Cam Type)
-The Straightener & Leveler share the same Drive Train:
0.500" Gauge x 72" Wide Mild Steel
100 HP
Line Speed: 0 - 100 FPM
-Side Guides:
-Double-Stub Edge Trimming Unit: Stamco
Eccentric Adjustment
Motor 125 HP DC, 500 V, 1750 RPM, 203 Amps
Horsburgh & Scott Reducer: 102 HP, 1.0 Ratio
-Scrap Chopper:
Paddle Type
One set of Choppers for each side

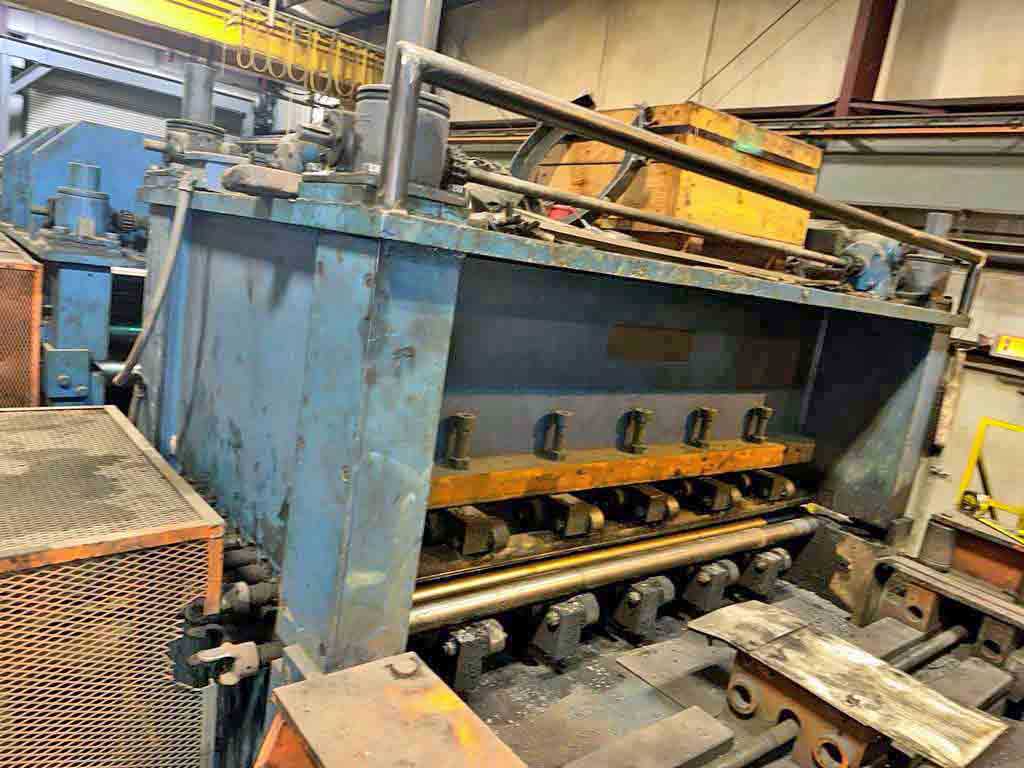

-Delta Shear:
Model: SS-652-000
0.500" Gauge Max. x 72" Wide Mild Steel
Single Rake Design
Down Acting
Entry and Exit Driven Pinch Rolls
66" Pass Height
75 HP, 230V Motor
-Runout Tables: (2)
40' Long
on Rails

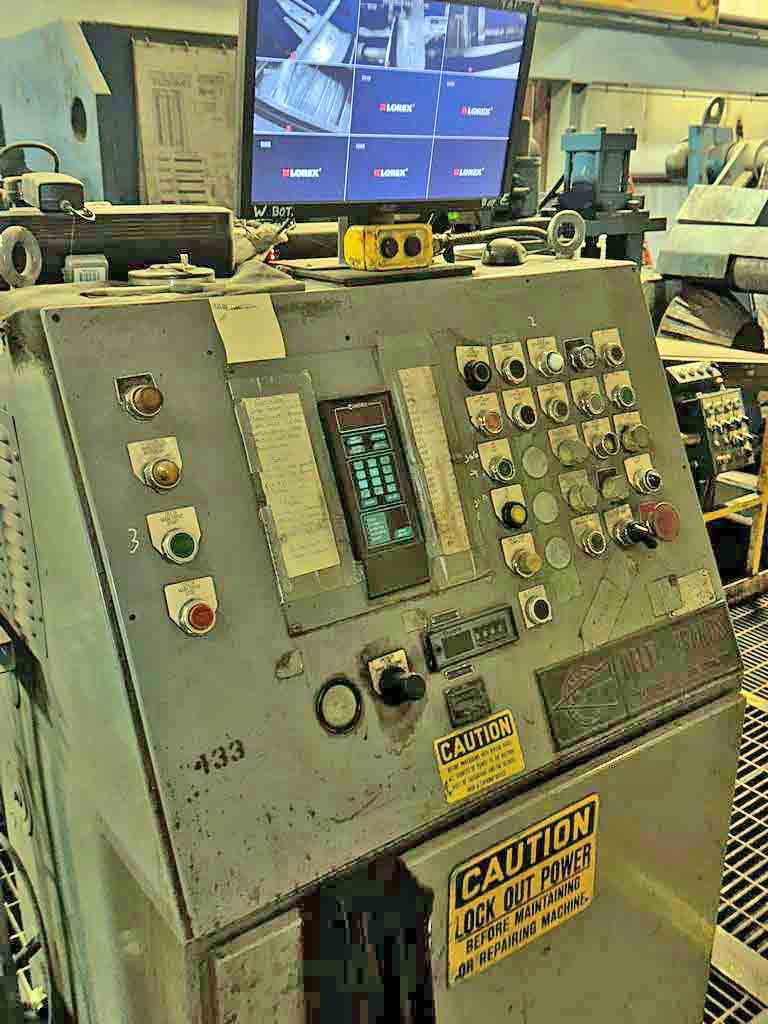

-Operators Console:
-Isolation Transformer:
145 KVA
-Line Direction: Right to Left
-Line is Installed
|
