YEAR: 2007

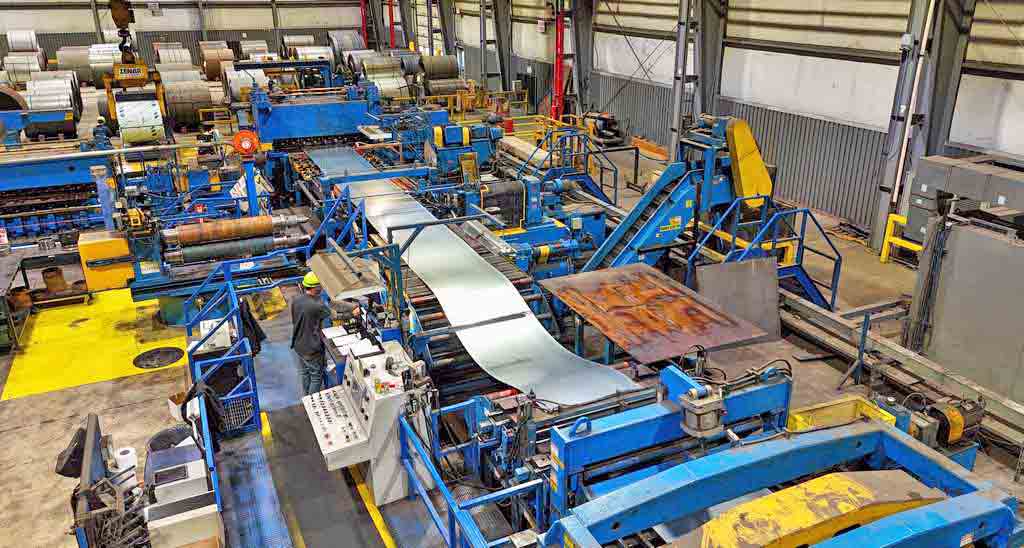

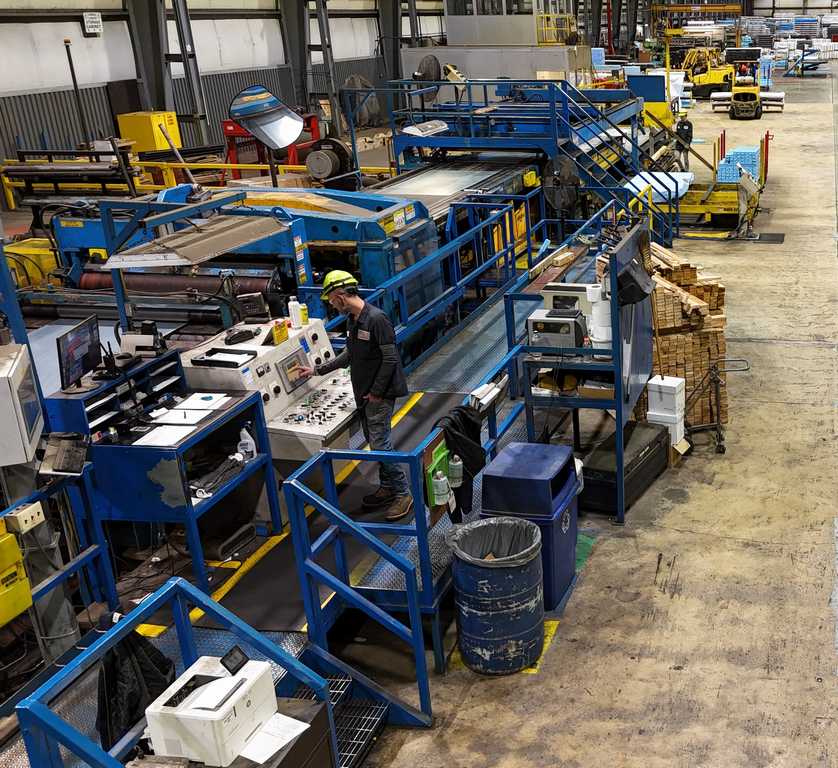

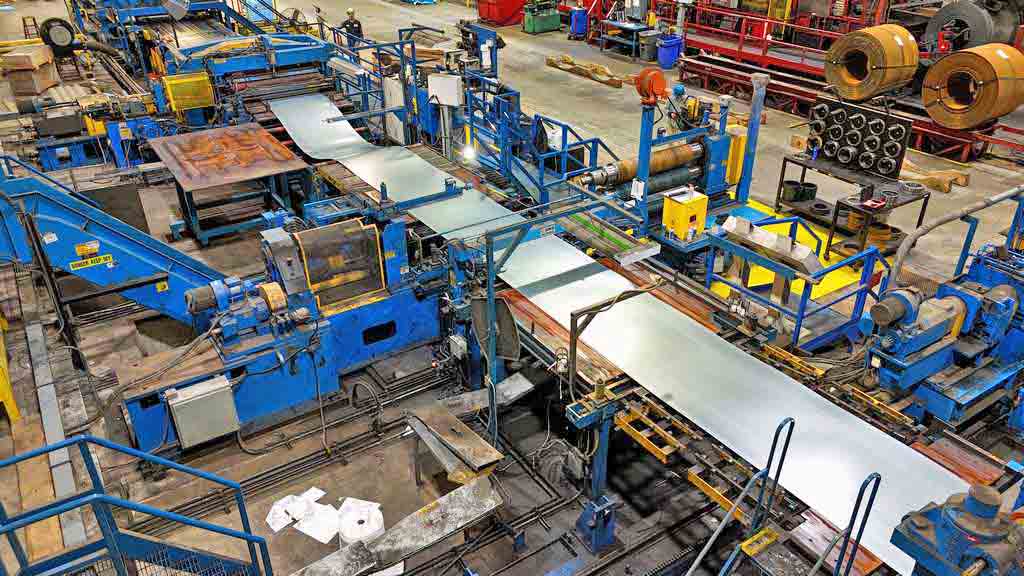

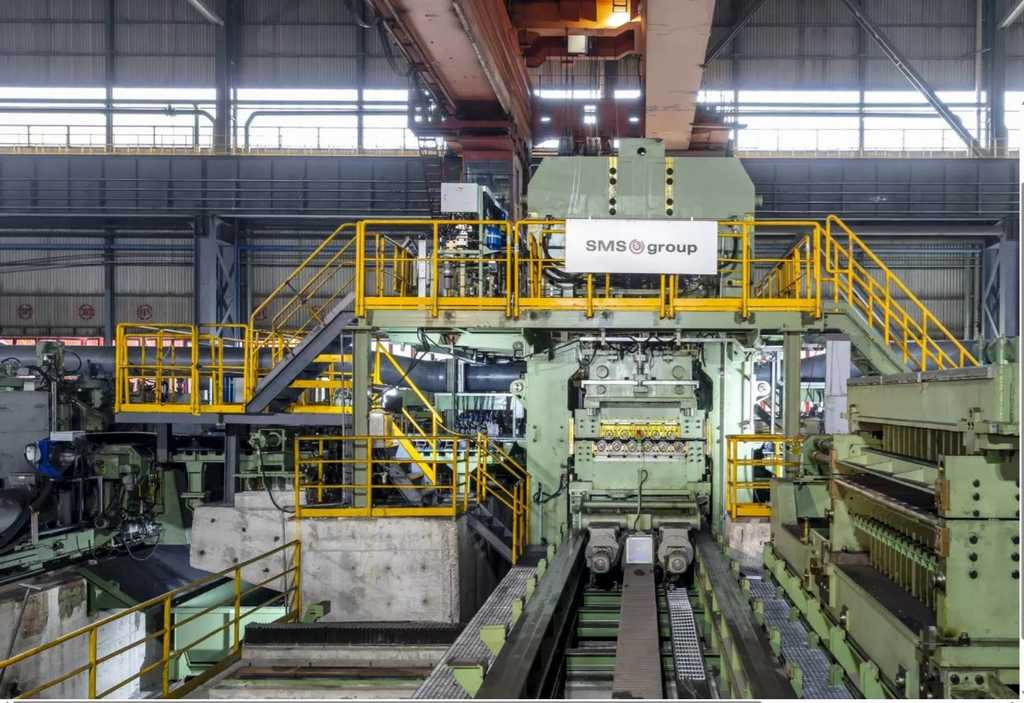

74" x 0.135" x 80,000# SMS Demag/Pro Eco Multi Blank CTL Line
Material: CR, Galv
Incoming Material Quality: To ASTM Standards - Surface Critical
Incoming Strip Crown - Maximum: 2%
Strip Thickness: 0.010" - 0.135"
Shear Strength - Maximum: 120,000 PSI to 0.090"
80,000 PSI to 0.135"
Yield Strength - Maximum: 120,000 PSI to 0.090"
80,000 PSI to 0.135"
- Minimum: 30,000 PSI
Coil Weight at Entry - Maximum: 80,000 lbs
Strip Width at Entry: 18" - 74"
Strip Width at Exit: 18" - 72"
Coil O.D.: 40" - 84"
Coil I.D.: 20" - 24"
Cut Length: 16" - 240"
Reject Length - Maximum: 86"
Stack Weight - Maximum: 20,000 lbs
Stack Height - Maximum: 24" (including dunnage)
Line Speed: Leveler - up to 200 FPM

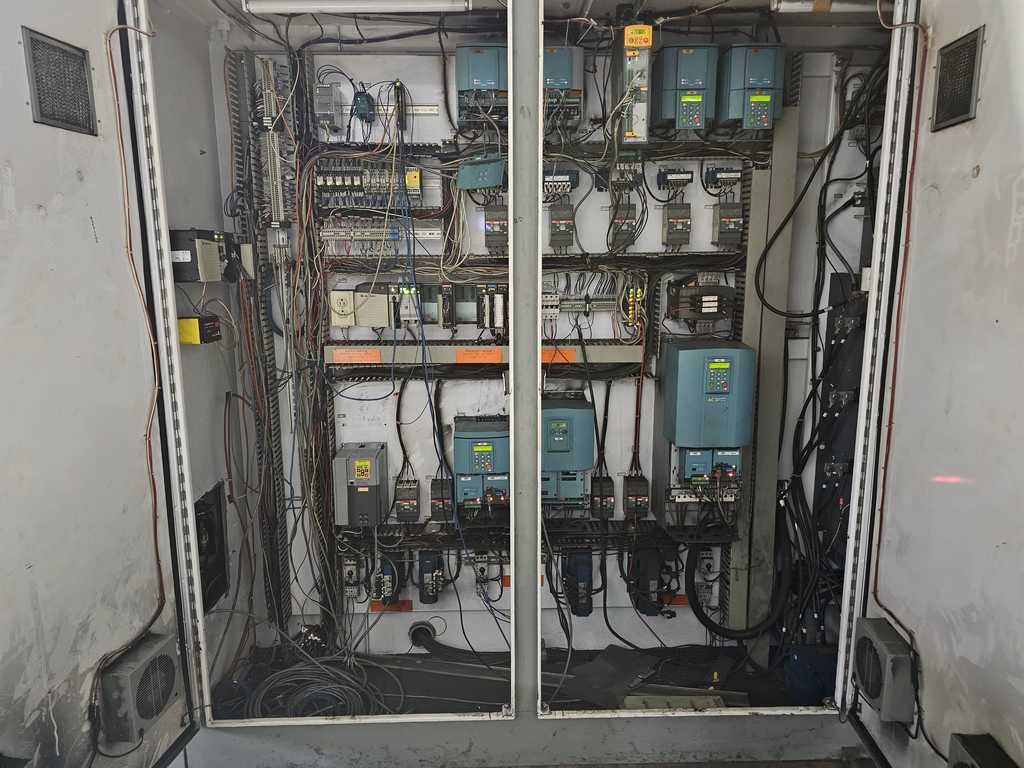

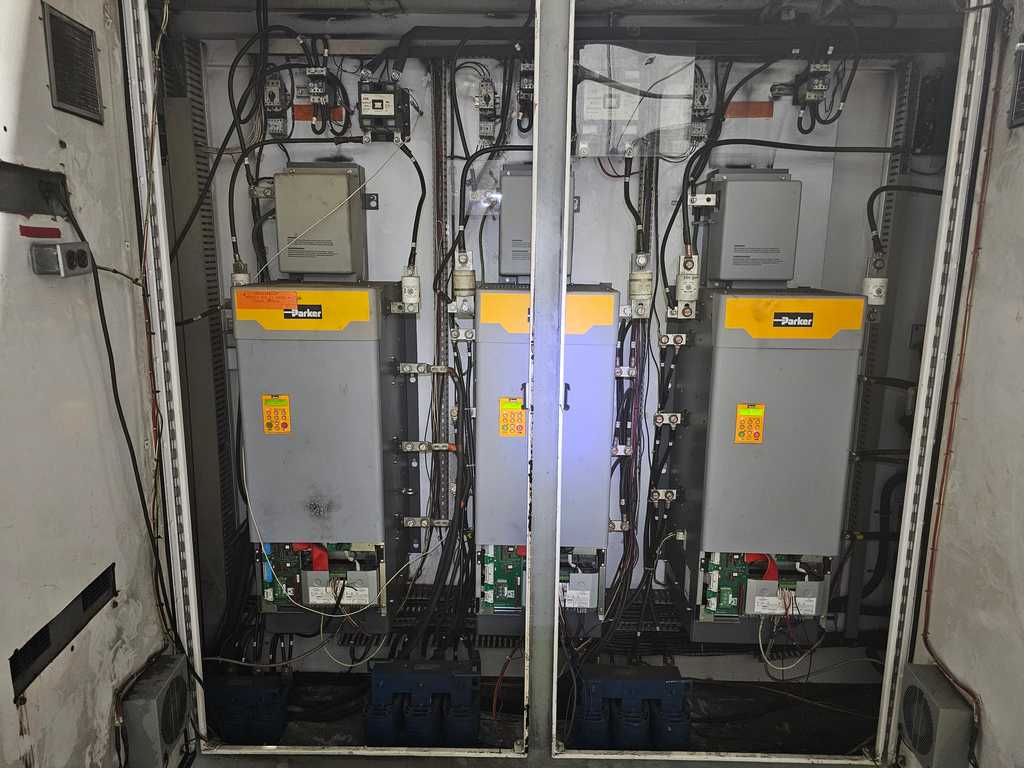

Electrical Supply: 480/3/60
Electrical Control Supply: 120/1/60
Air Supply: 80 PSI
Hydraulic Design Pressure: 1,650 PSI
Hydraulic Working Pressure: 1,500 PSI

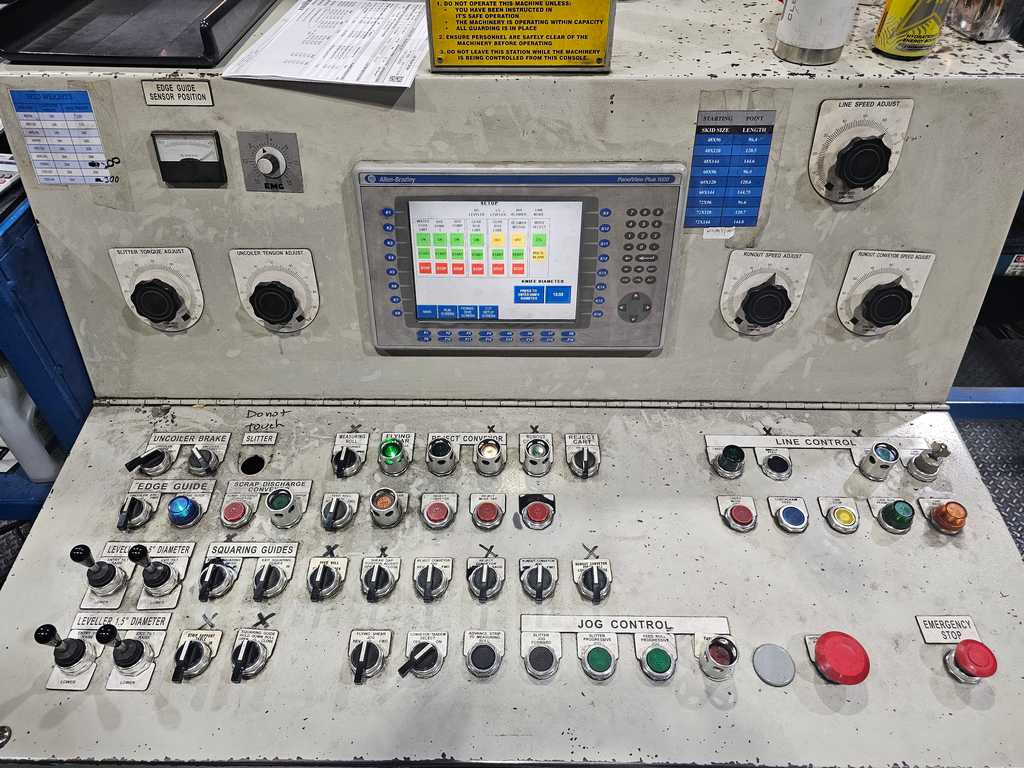

Mode of Operation: Flying Shear Multi Blanking Line
Passline Height - Entry: 58" (Approx.)
- Exit: 18" (Approx.)
Line Direction: Left to Right
Payoff Direction: Over Unwind
Discharge Direction: End
Consisting of the following:
-4 Arm Turnstile:
Power Rotation
C-Hook Slot 6" x 12"
20" ID

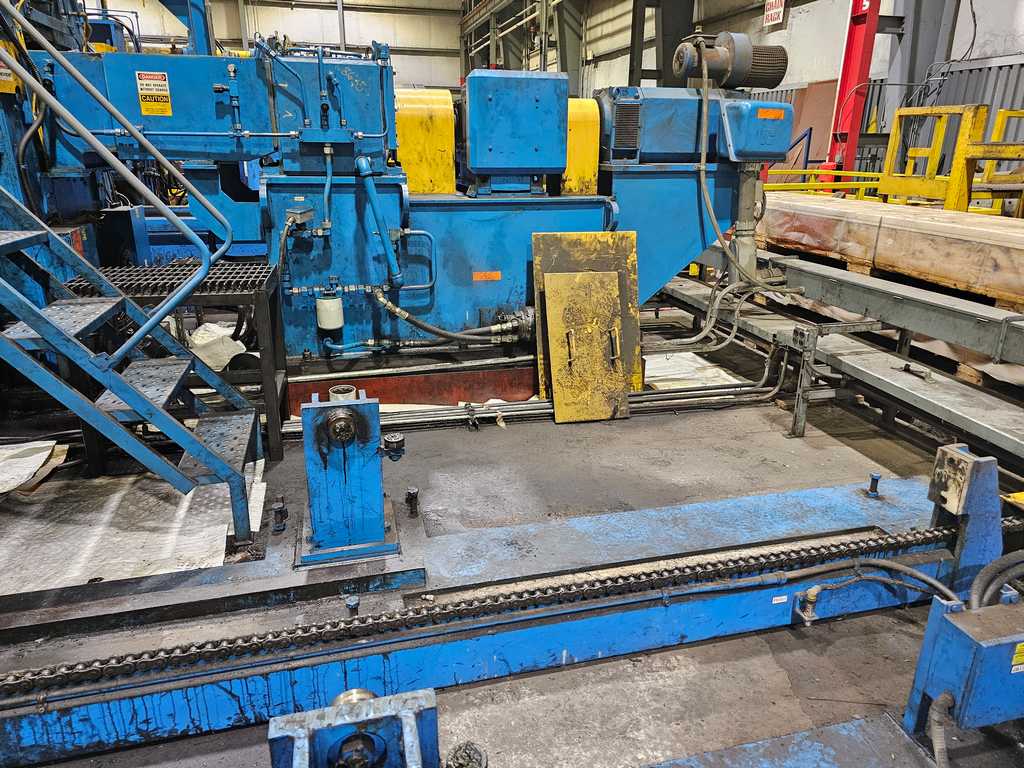

-Entry Coil Car:
L Shaped
Self-Contained Hydraulic Power Unit
84" Max. OD
28" Lift

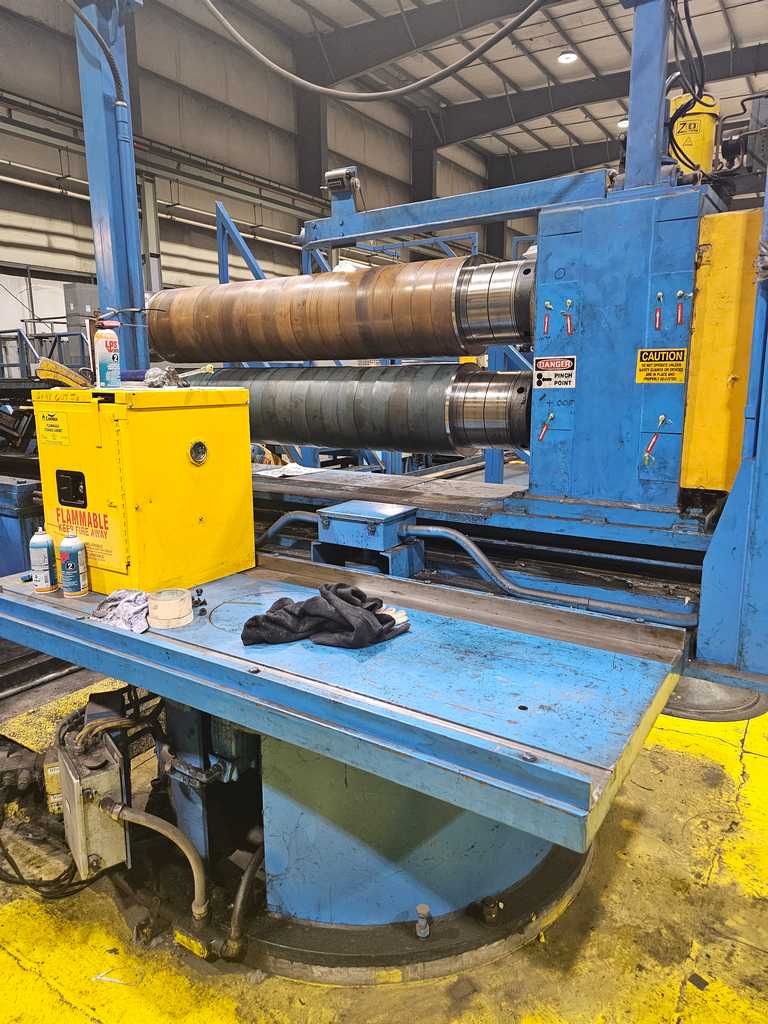

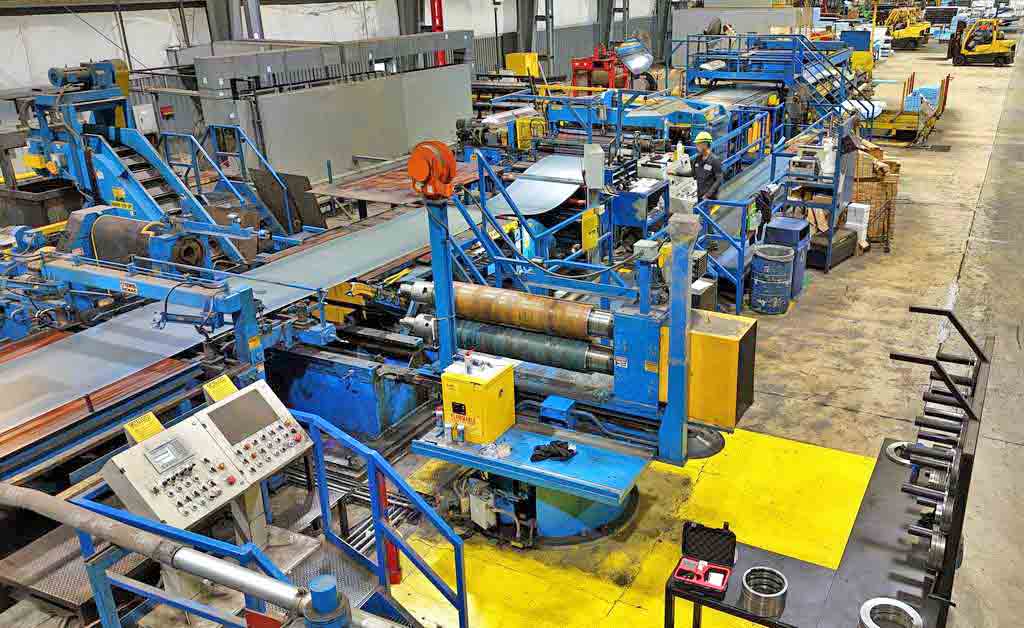

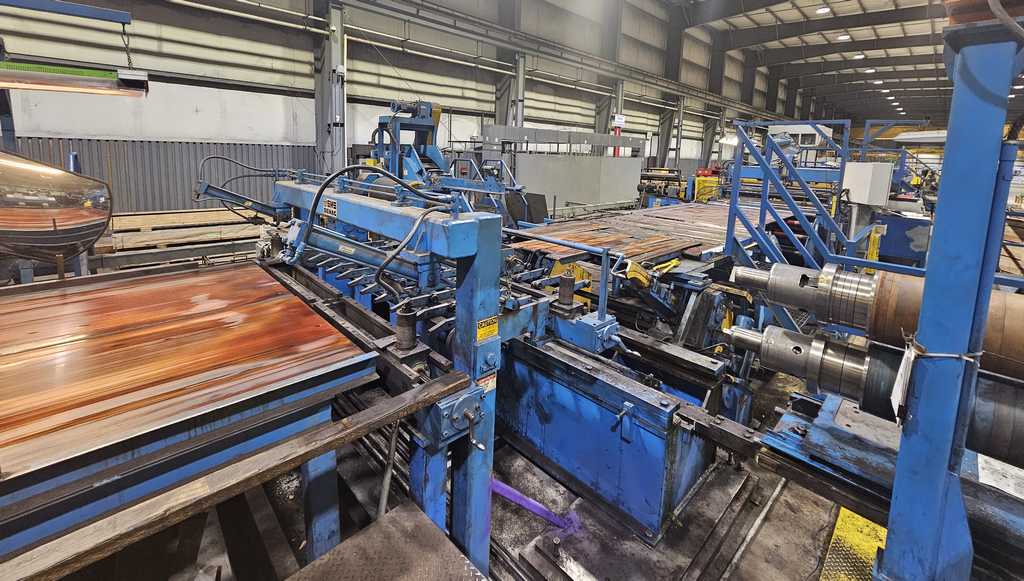

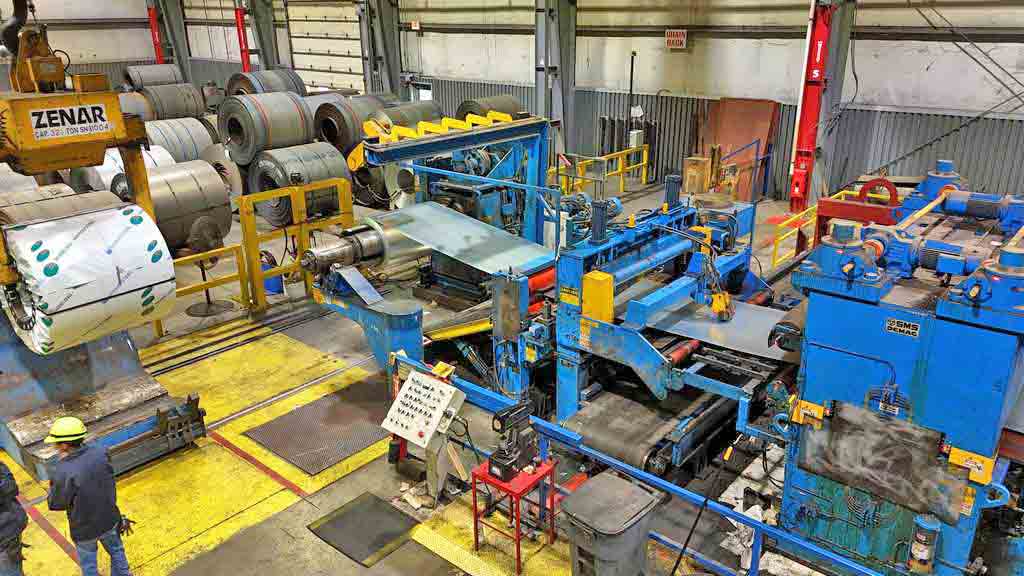

-Single Mandrel Uncoiler:
Hydraulic Expansion
20" - 24" ID
Pumpkin Tooth Mandrel
84" O.D.
Water Cooled Brake
Sliding Base
Holddown Roll
Outboard Support Arm
-Automatic Center Guide Control Unit:
-Peeler Table:

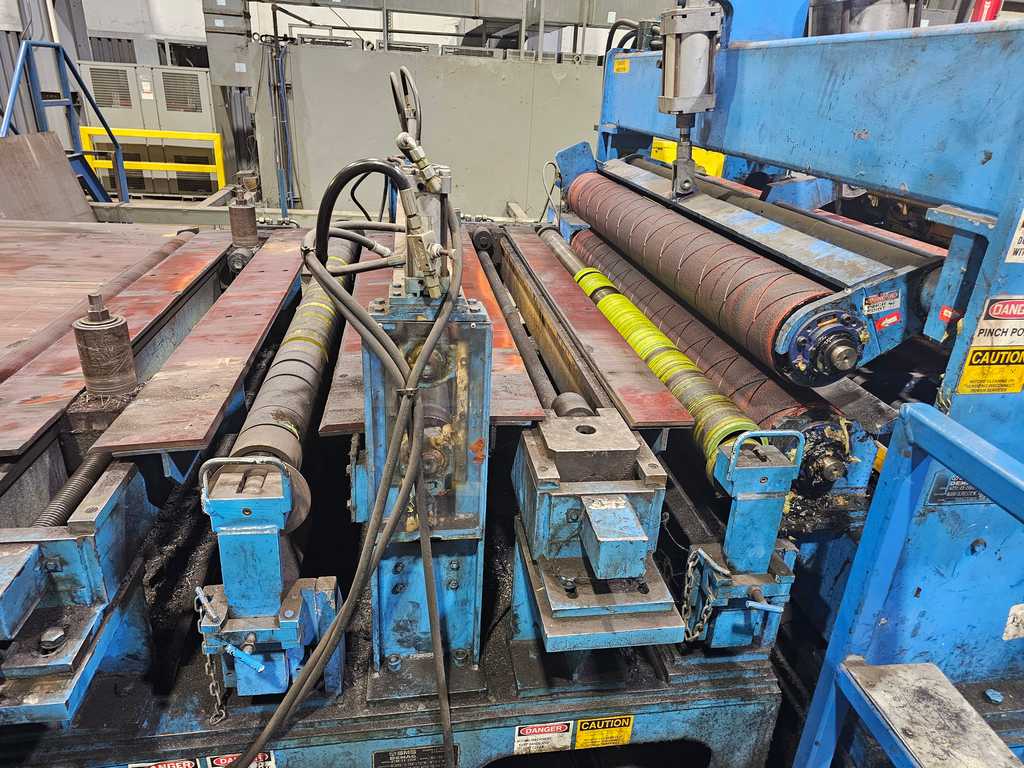

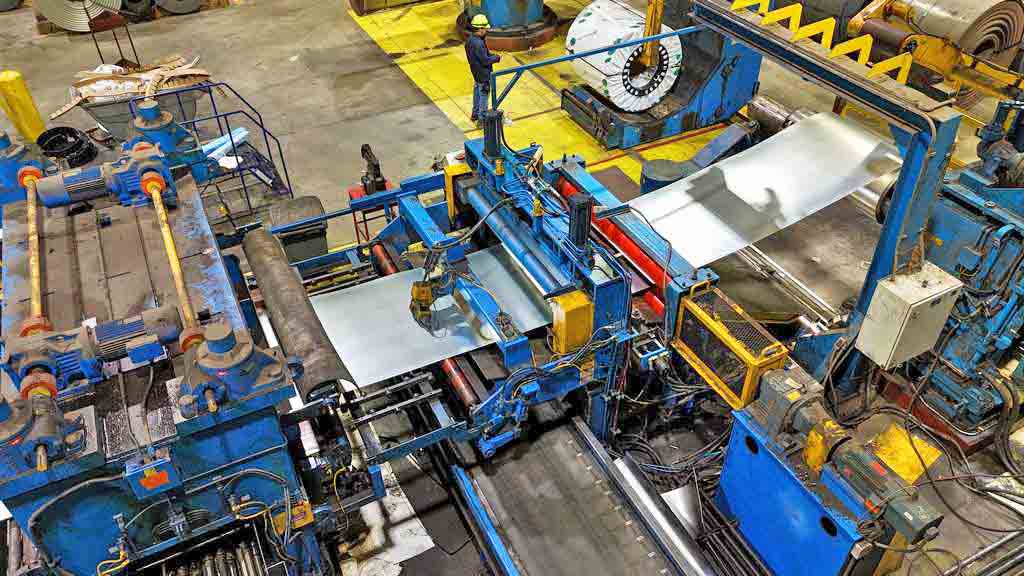

-Driven Pinch Rolls:
Urethane Covered
10" Diameter Upper Roll
8" Diameter Bottom Roll
-Mechanical Centering Guides:
-Hydraulic Crop Shear:
15 Second Cycle Time
-Belt Conveyor for scrap:

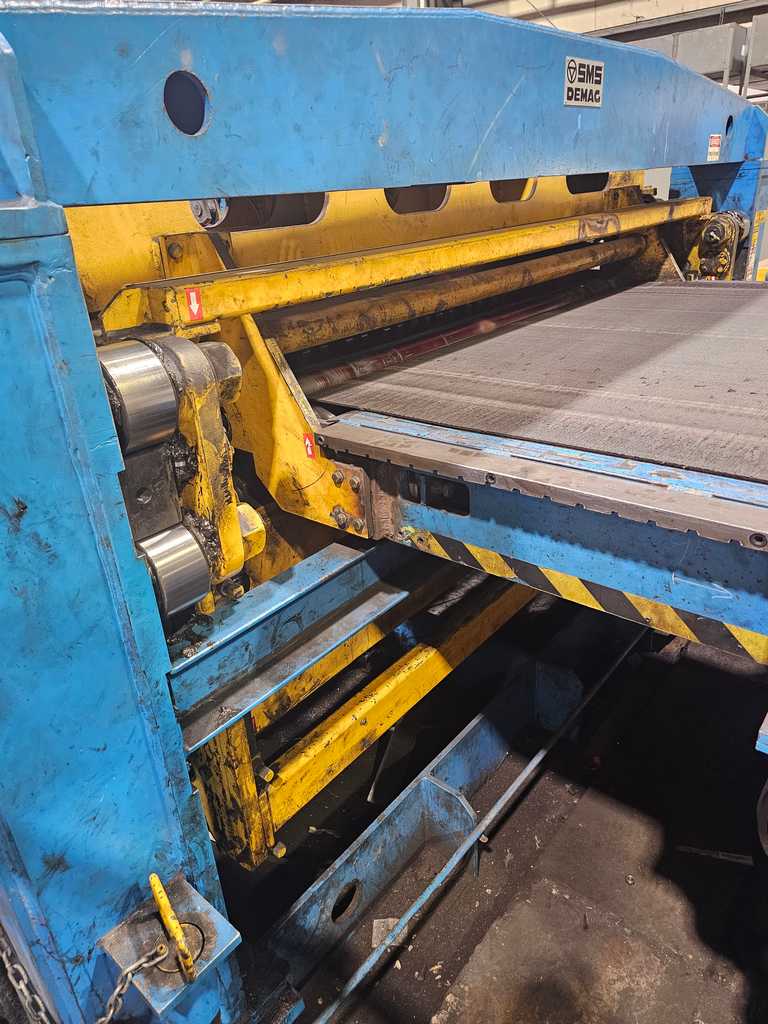

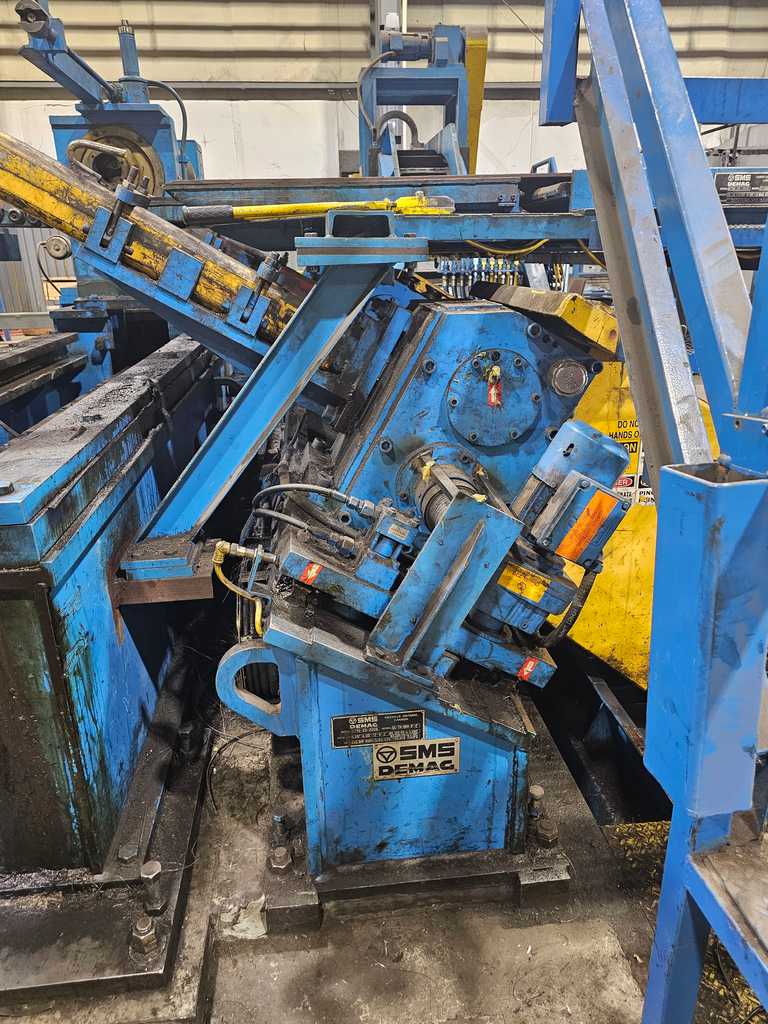

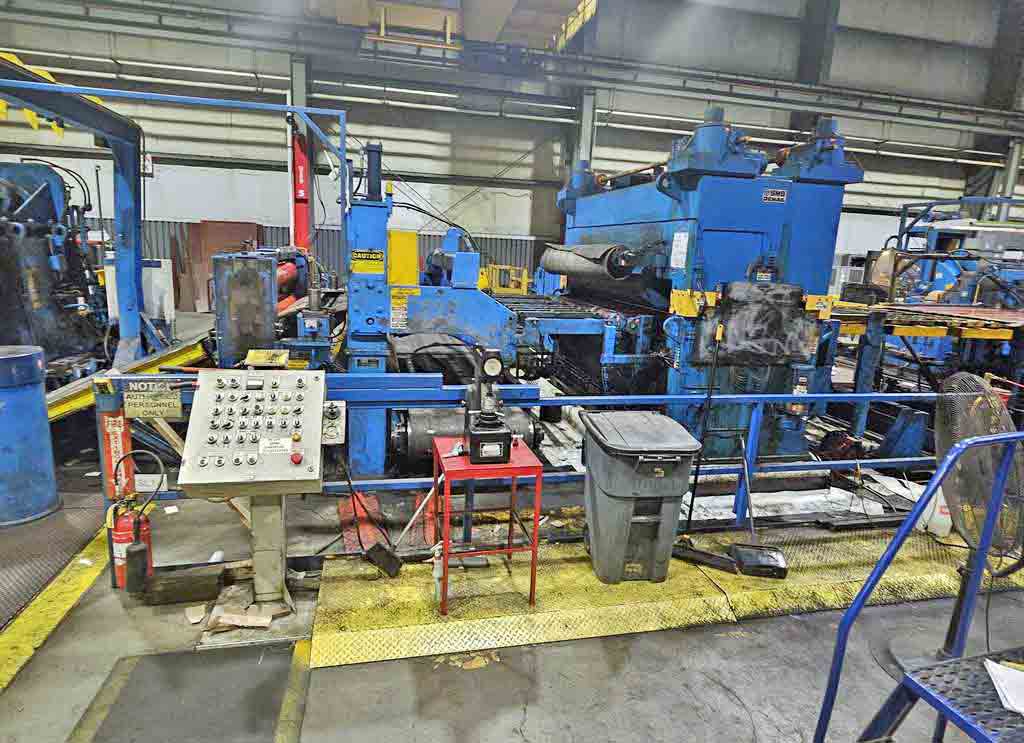

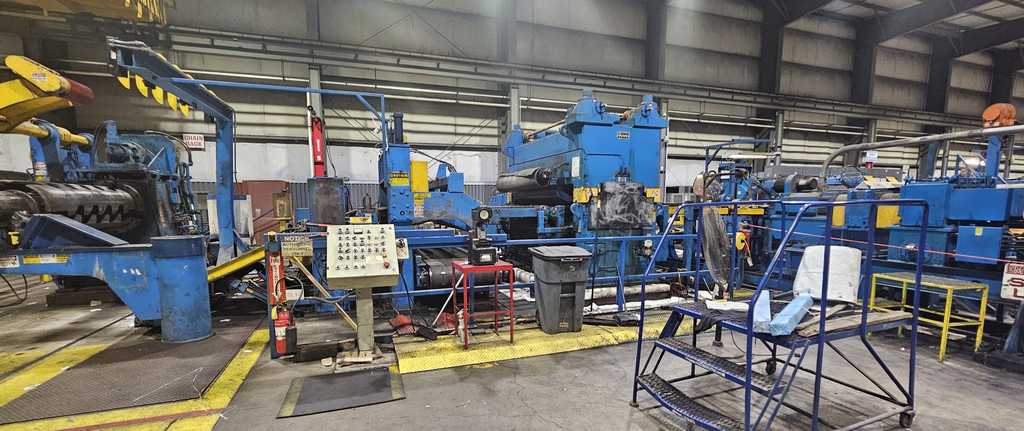

-Leveler: 5 HI
17 Work Rolls
2.50" Dia. x 100" Face Work Rolls
Cassette Type Roll Change
300 HP Drive
-Carryover Table:
-Leveler: 5 HI
19 Work Rolls
1.50" Dia. x 102" Face Work Rolls
Cassette Type Roll Change
250 HP Drive
-Inspection Table:
-Speed Reference Roll:
-Mechanical Centering Guides:

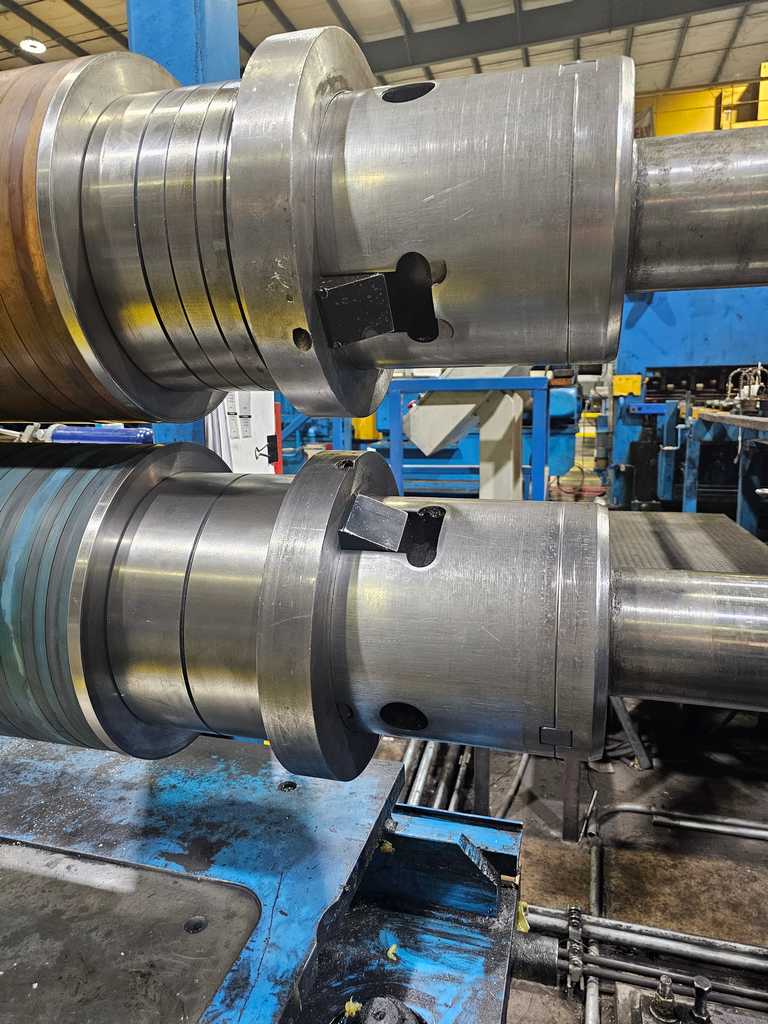

-Slitter Head: "CNC" Controlled
Full Head Arrangement with Automatic Tooling Setup
9" Diameter Arbors
Single Eccentric Arbor Adjustment
DC Drive Motor
-Scrap Choppers:
-Scrap Discharge Conveyor:
-Carryover Table:
At Scrap Choppers
-Loop Pit Equipment:
-Squaring Guides:
-Precision Roll Feed Unit:
8" Diameter Rolls
Urethane Covered

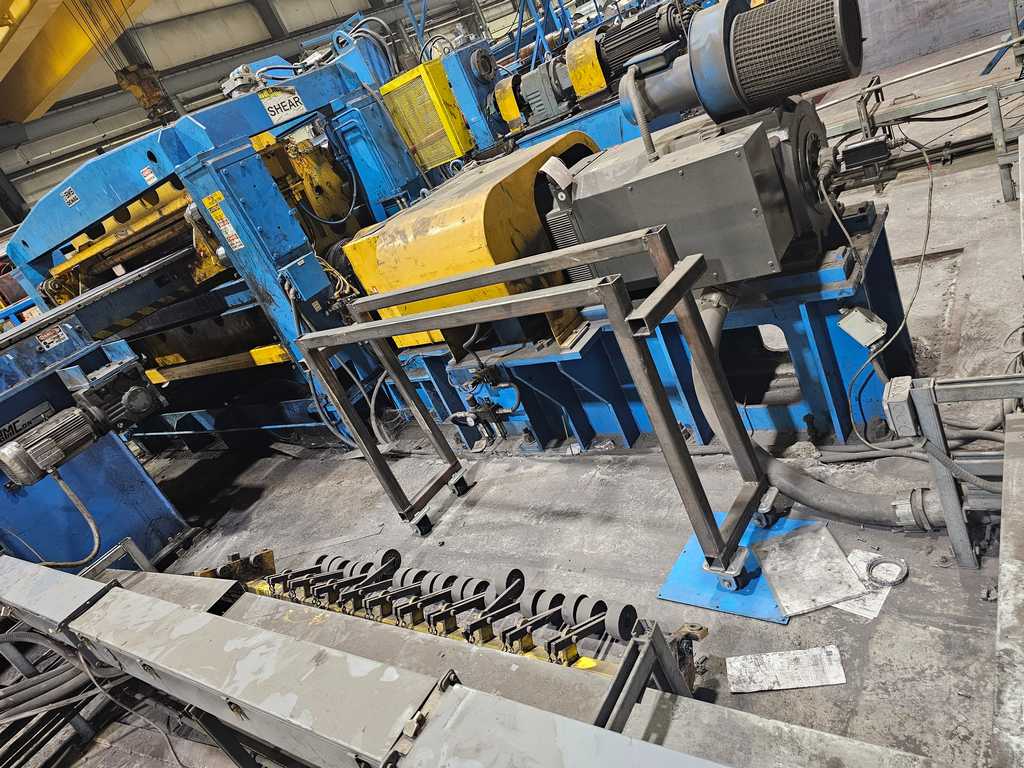

-Reciprocating Flying Shear:
250 HP Drive
16" Minimum Cut Length
-Reject Conveyor:
-Runout Conveyor:
-Reject Cart:
86" - 16" Length

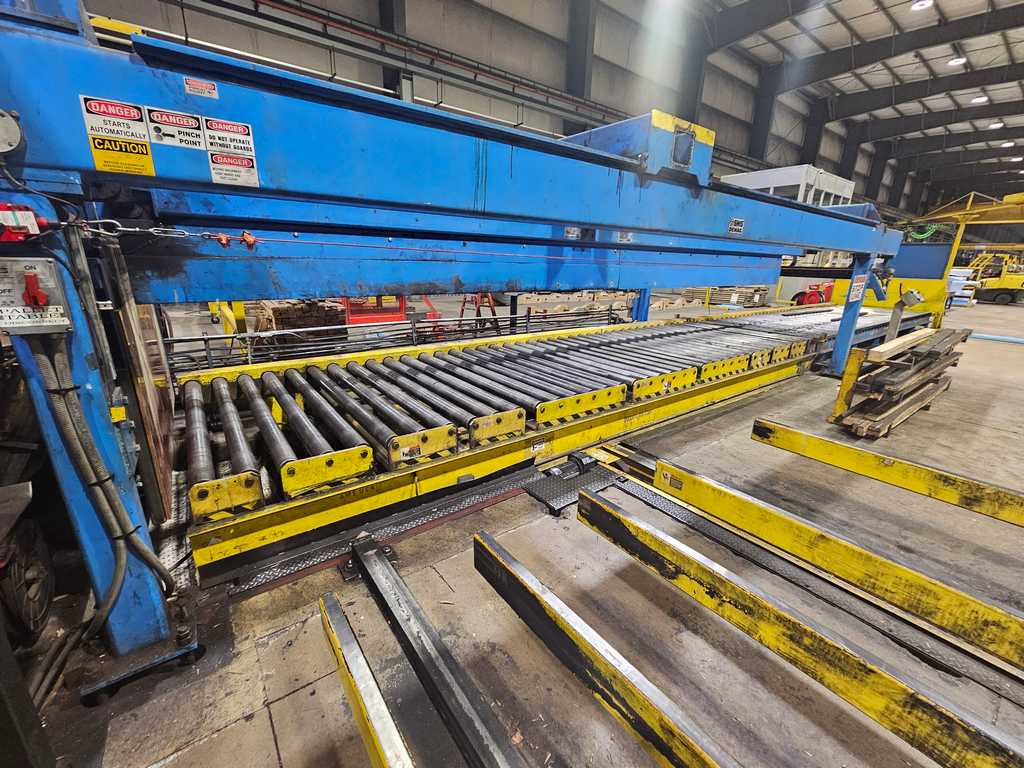

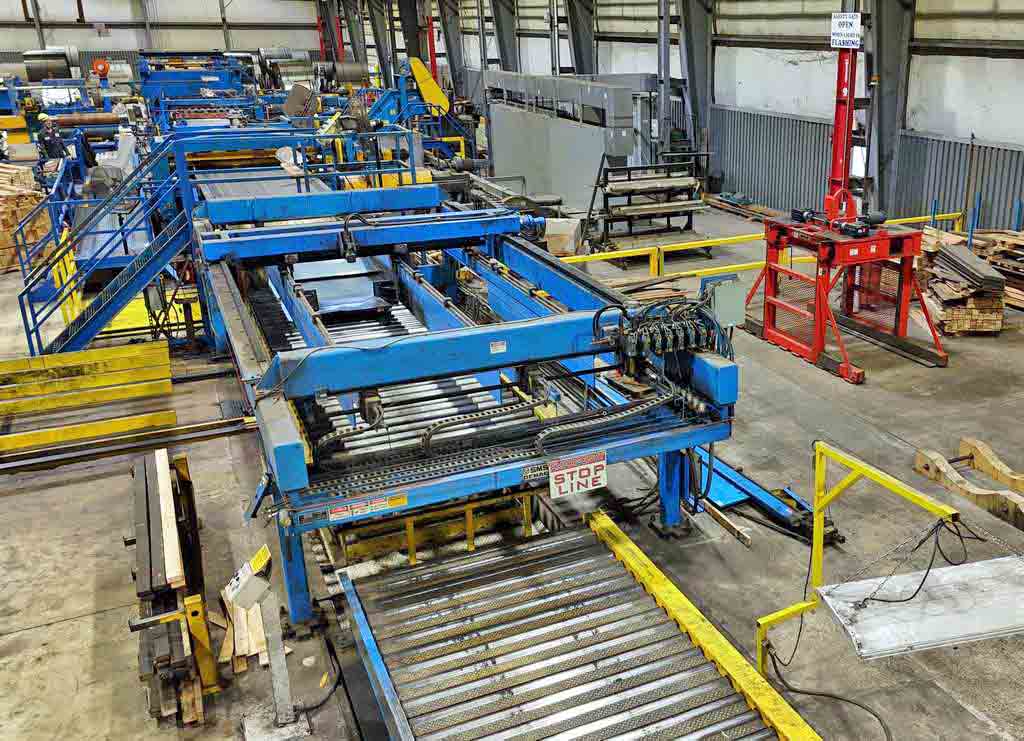

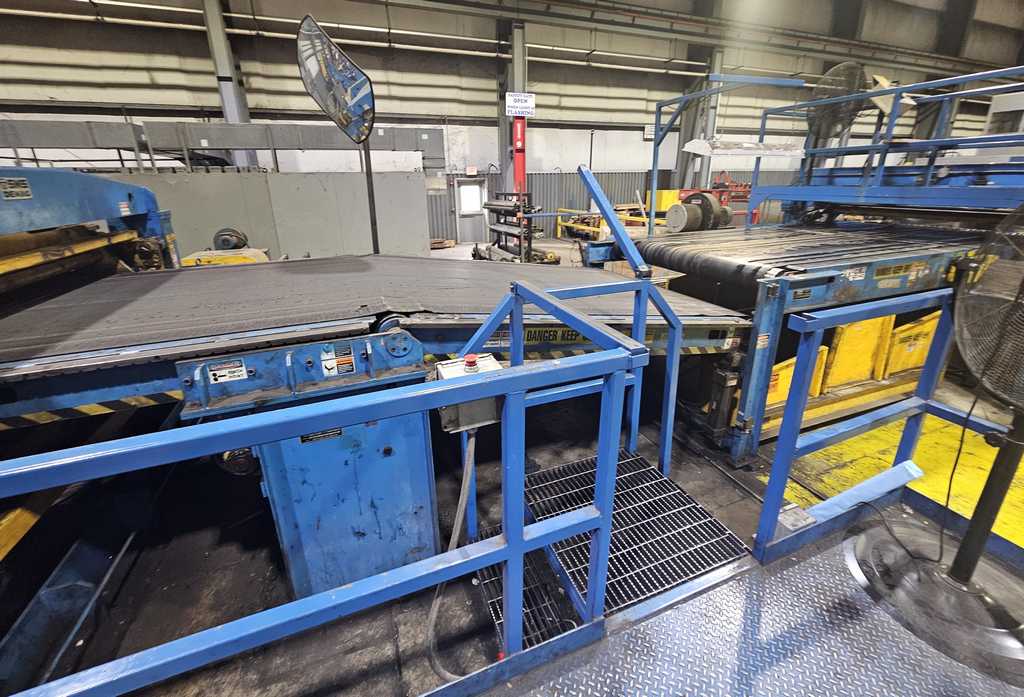

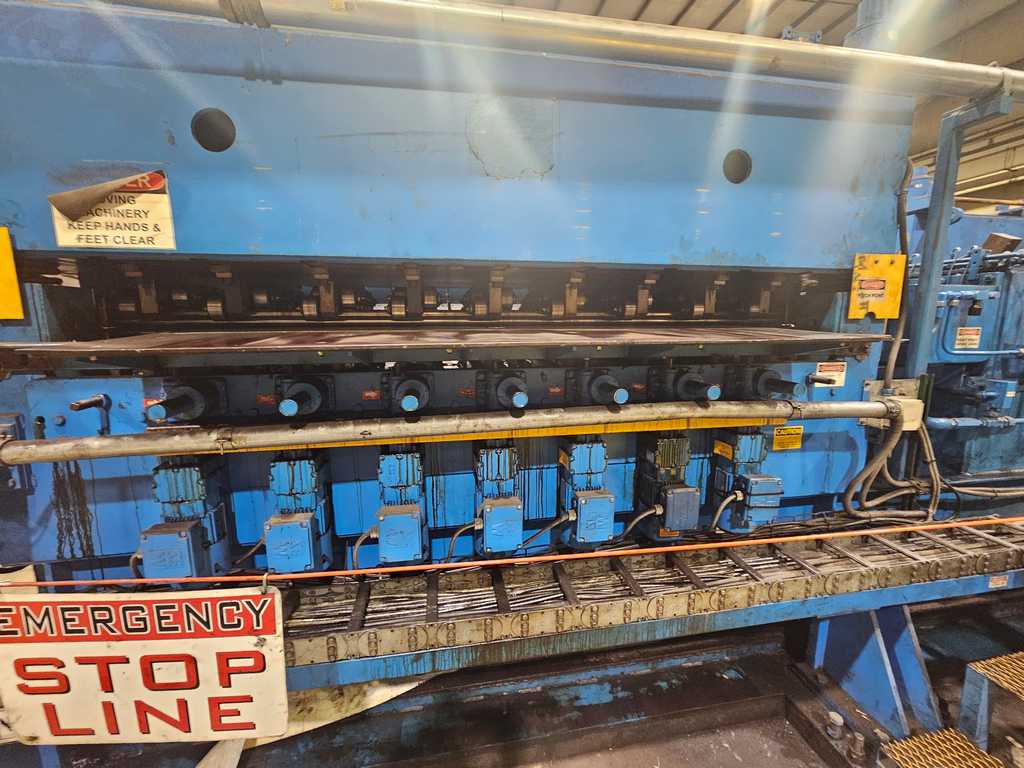

-Automatic Air Stacker:
Powered Width Adjustment
Powered Length Adjustment
End Discharge
16" Min. - 240" Max. Length
-Pallet Feed System:
-Scissor Lift Stacking Table:
24" Max. Lift
20,000 lb. Weight Capacity
-Storage Conveyor:
20,000 lb. Weight Capacity
240" Long
-Water Cooling Unit:
-Line Cost $12,000,000. New, including installation.
-Line is Installed and Running
|
