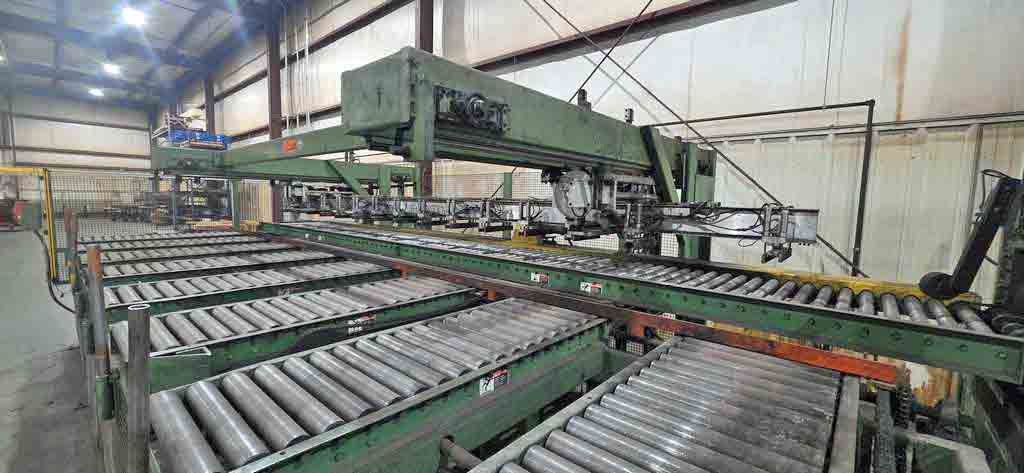

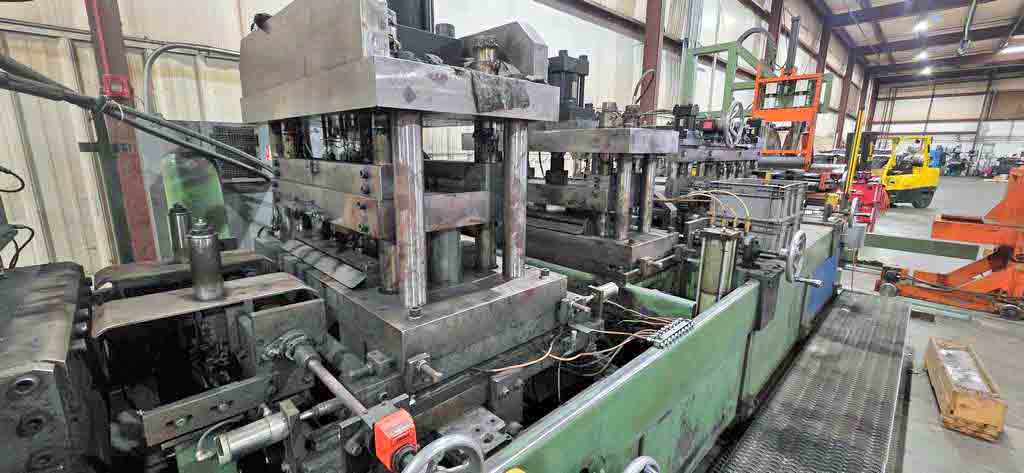

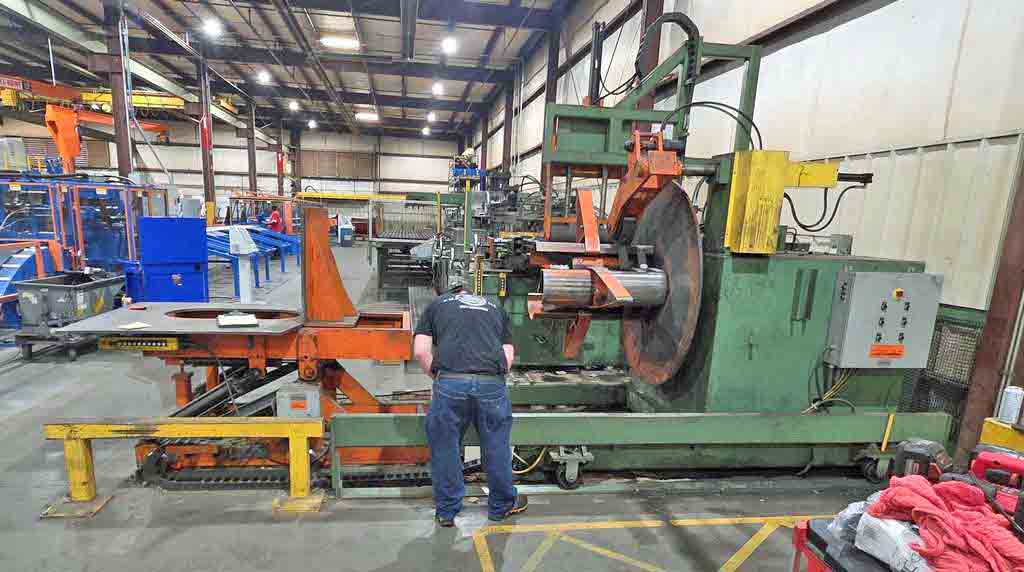

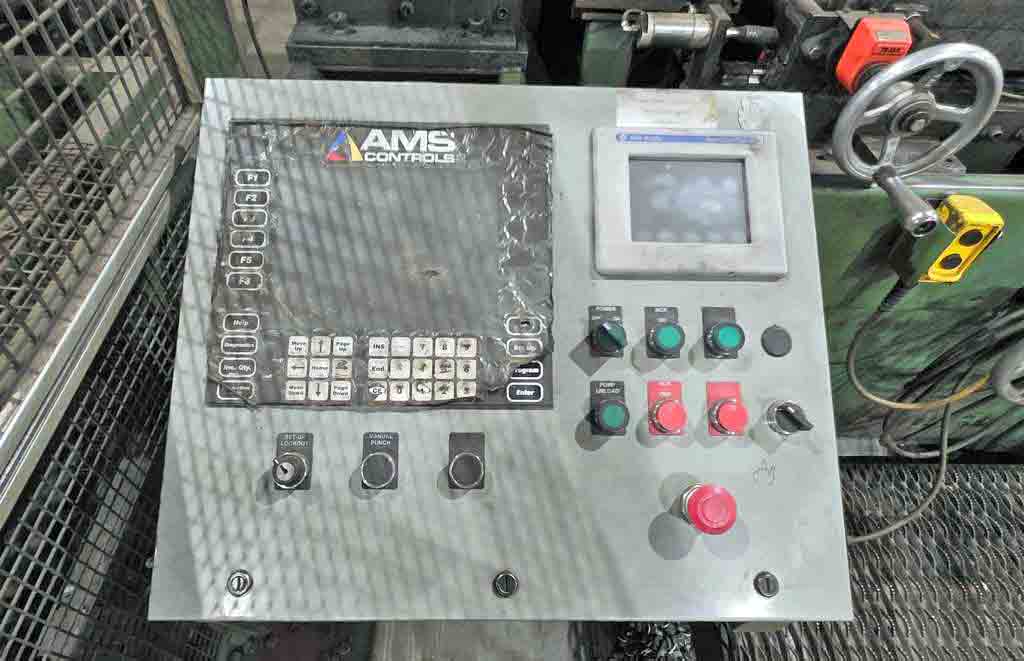

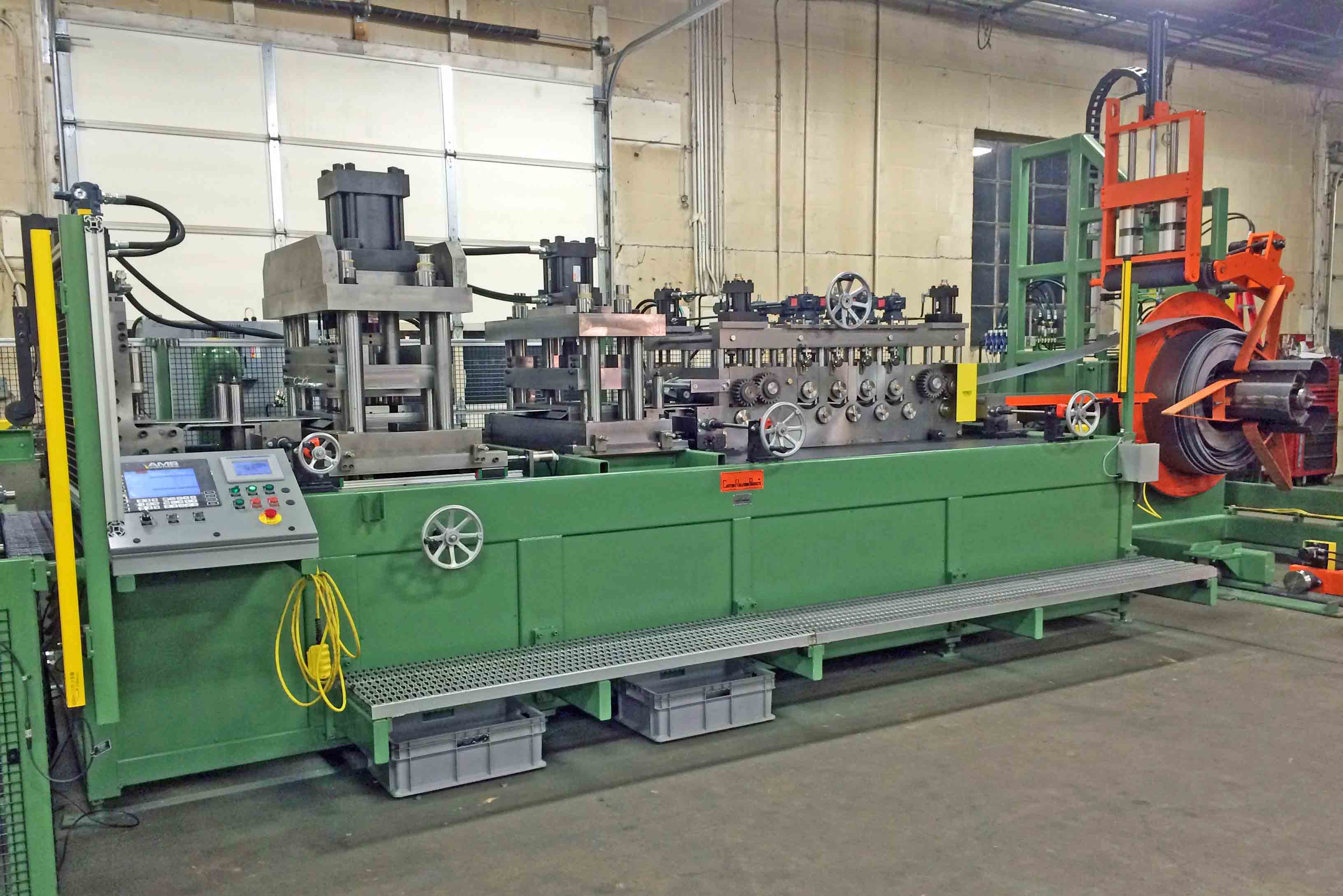

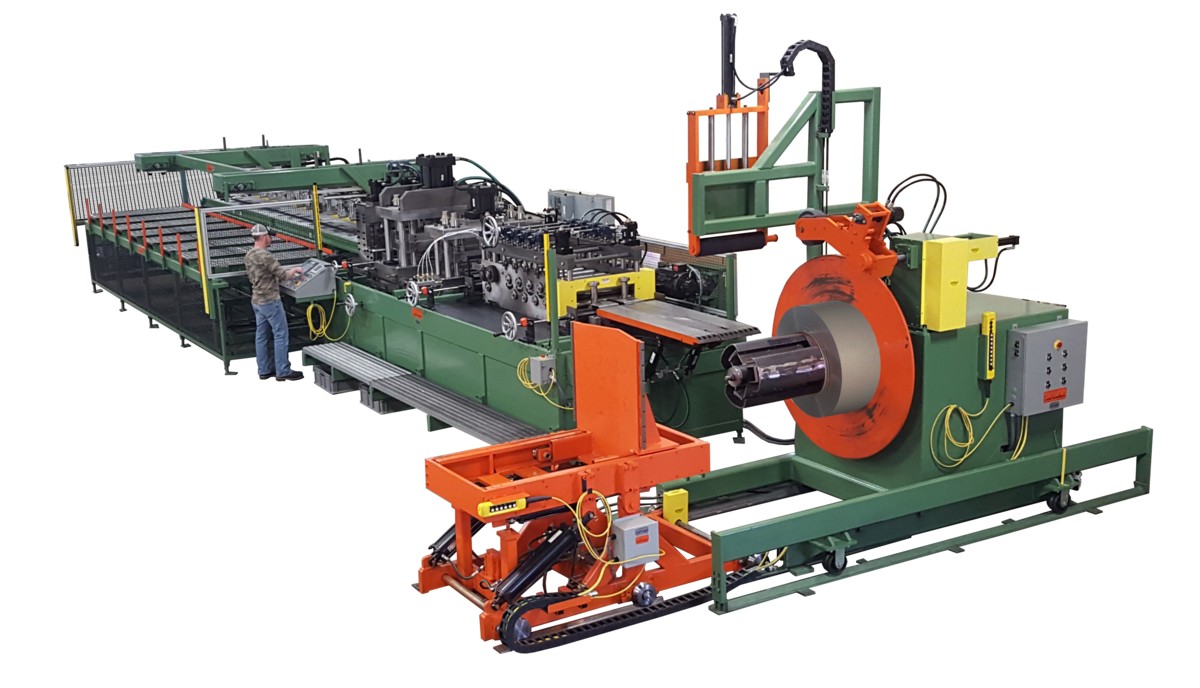

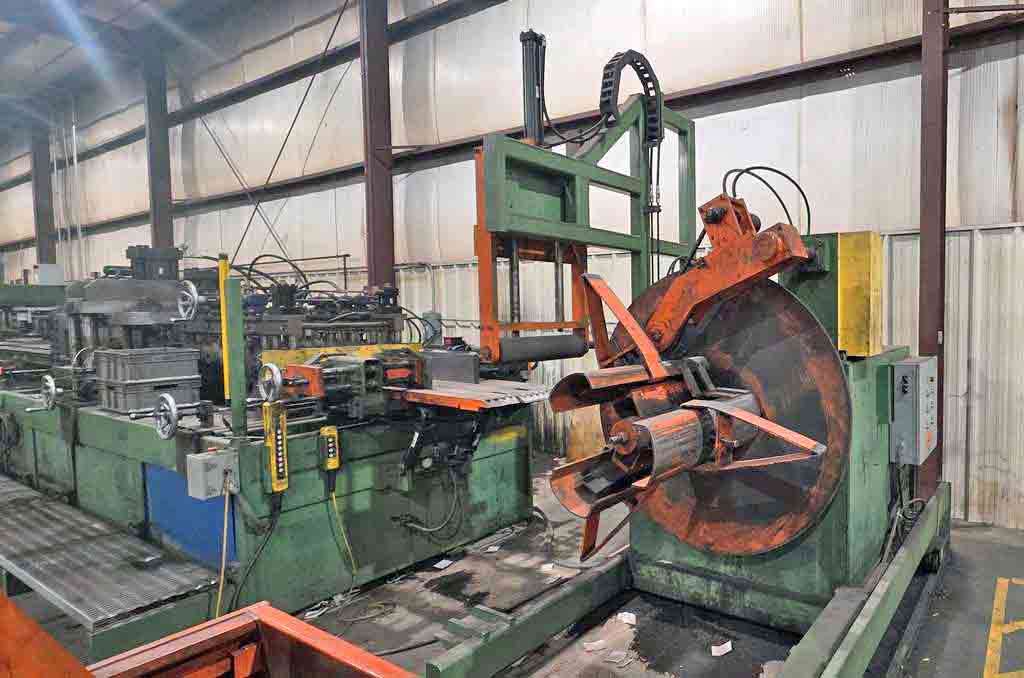

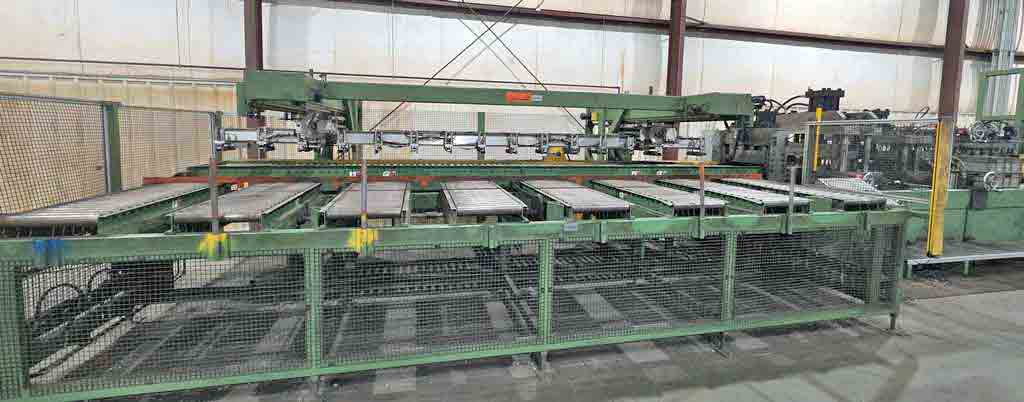

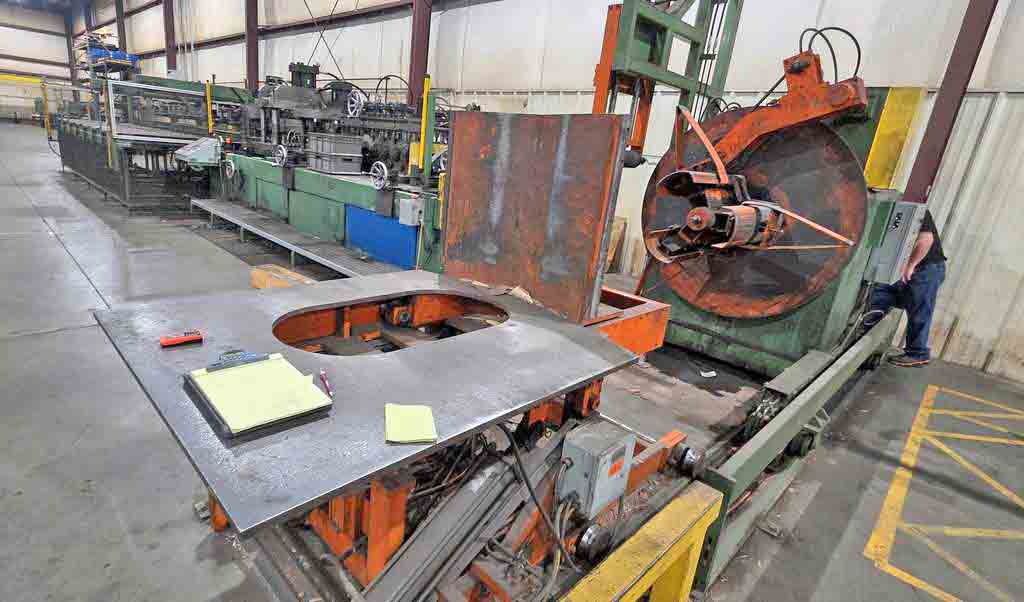

YEAR: 2016 Custom Rollform Products Cut-to-Length Line -Width: 8" - 24" -Coil Weight: 7,500 lbs. -Material Thickness: 0.048" - 0.250" -Cut Length: 6" Minimum - 240" Maximum -Line Speed: 50 FPM -Line Direction: Right to Left Consisting of the following: -Entry Coil Car/Upender: Hydraulic Cylinder Operated -Mandrel Uncoiler: Overarm Holddown Hydraulic Expansion Driven Mandrel Coil Keepers Traveling Base -Peeler Table: Hydraulic Cylinder Actuated Adjustable Side Guides -Entry Side Guides: Manual Handwheel Adjustment -9 Roll Straightener: 5 over 4 Rolls Drive Motor thru Reducer -Entry and Exit Driven Pinch Rolls: Hydraulic Cylinder Loaded -(2) Hydraulic Punching Stations: Exit Side Guides -Hydraulic Shear: -Magnetic Automatic Stacker: -Side Discharge Conveyor: -Main Hydraulic Power Unit: -Operators Control Panel with AMS Controls -Videos of Line running available -Line is removed and in storage; Illinois. |
