Used 60" x 9.00" x 40,000# Pro Eco Slitting Line

Material: Mild steel or equivalent @ 50,000 PSI
Max Coil Weight: 40,000 lbs
Max Coil Width: 60" (62" Untrimmed)
Coil O.D.: 72" max
Coil I.D. (Entry): 16" & 20"
Coil I.D. (Exit): 20"
Material Thickness: 0.010" - 0.250"
Line speed: 200 & 600 FPM constant
build up to 1200 FPM with tach disconnect
Electrical supply: 460V / 3PH / 60Hz
Air supply: 80 PSI
Mode of operation: Pull-through/Loop Slitting
Line direction: Left to right

Line Includes:

-Entry Turnstile, 4-Arm

-Entry Coil Car, Above Floor

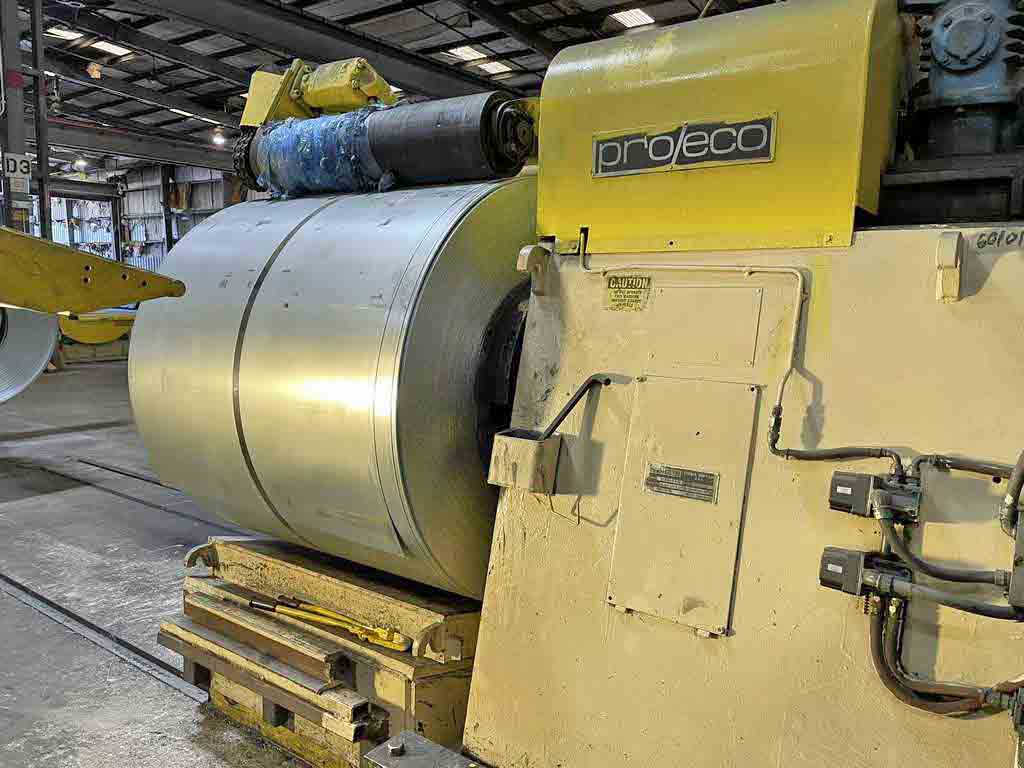

-Entry Peeler/Pinch Roll/Shear Unit

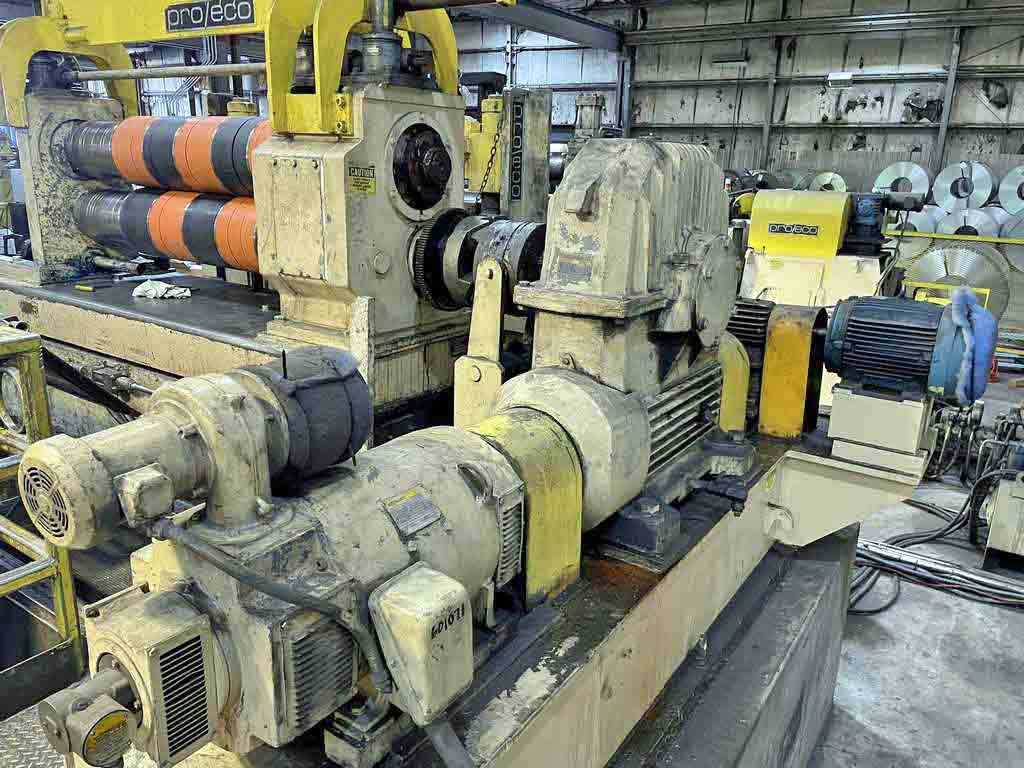

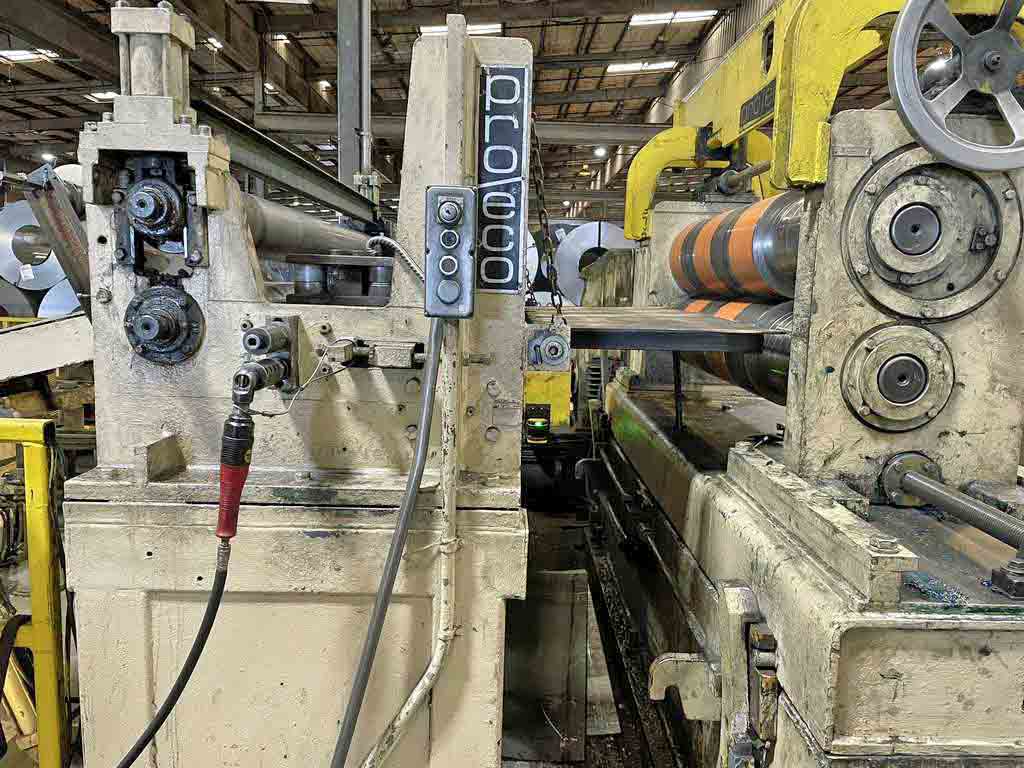

-Slitter Head, (2) Heads
Crane Load Type
Motor: 50 HP DC, 1750/2100 RPM, 500 V

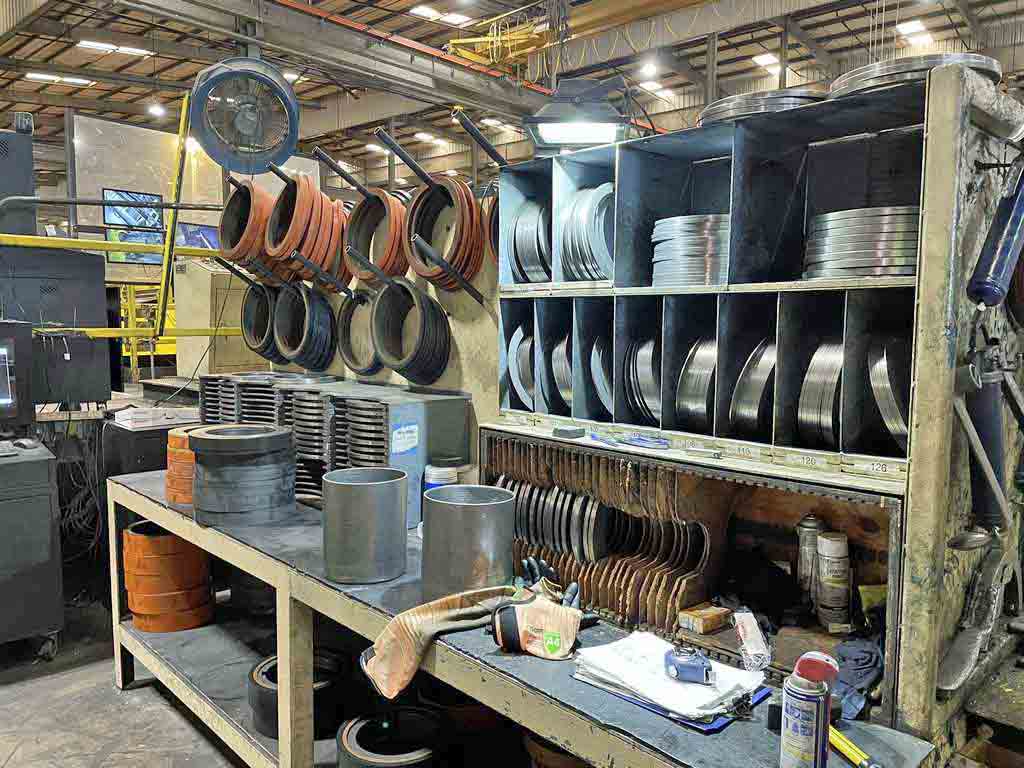

Tooling Station, Shimless Tooling

-Dual Scrap Winders

-Looping Pit

-Pit Carryover Table

-Exit Strip Separator Rolls

-Tension Stand

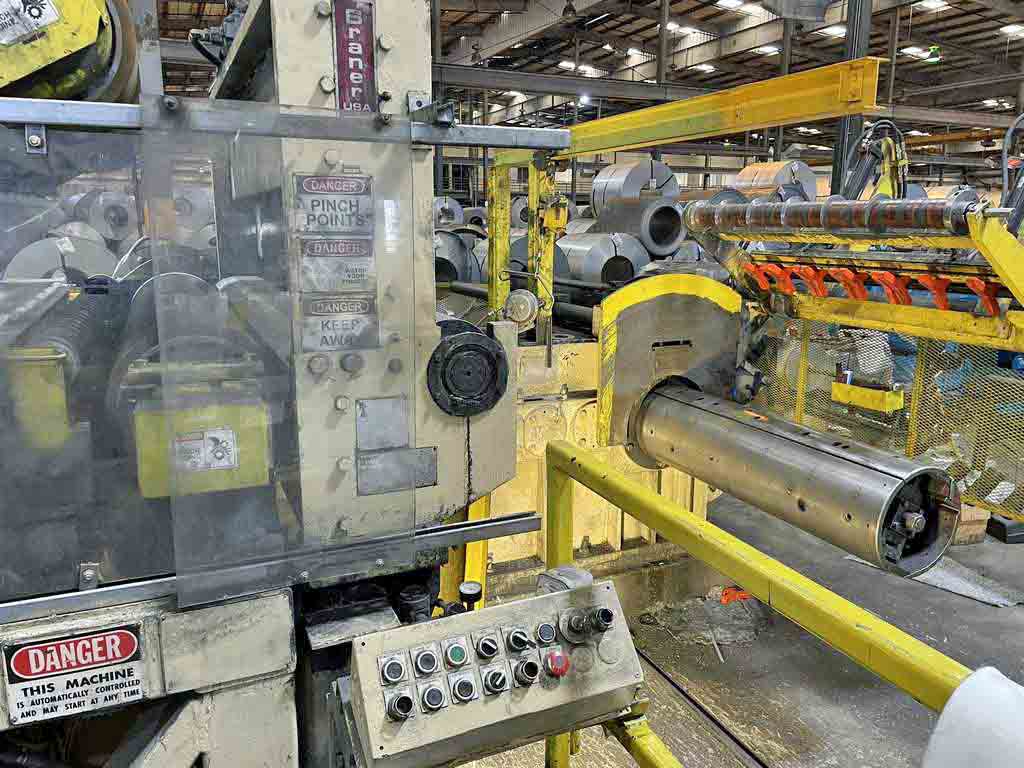

-Exit Crop Shear, Braner

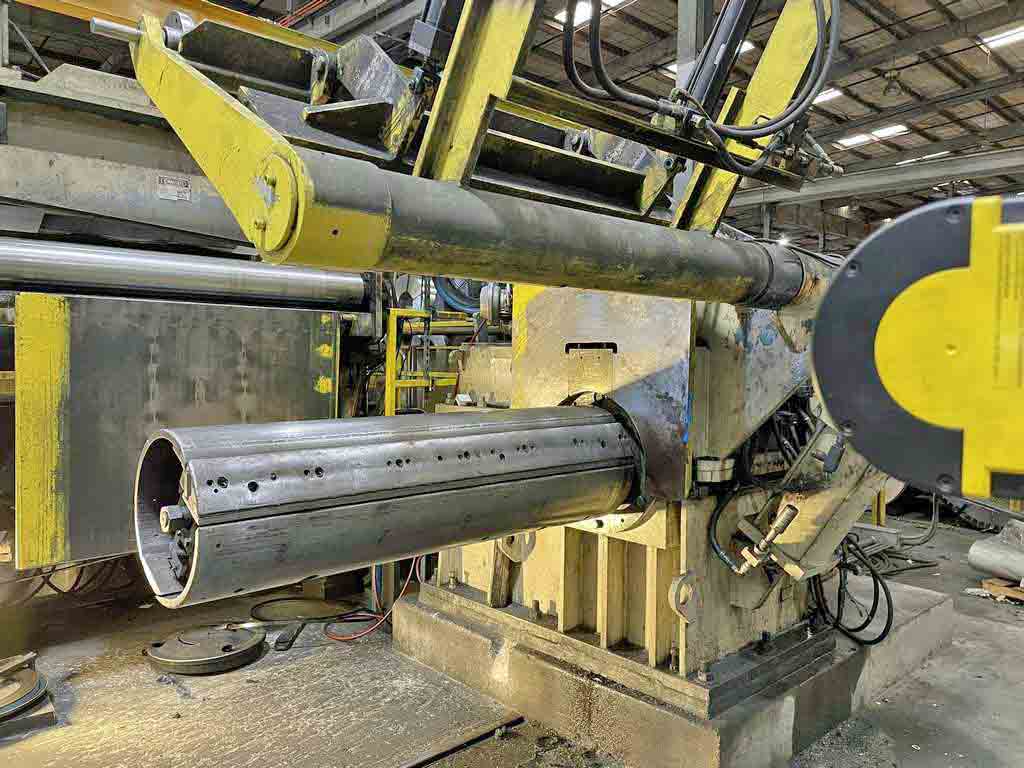

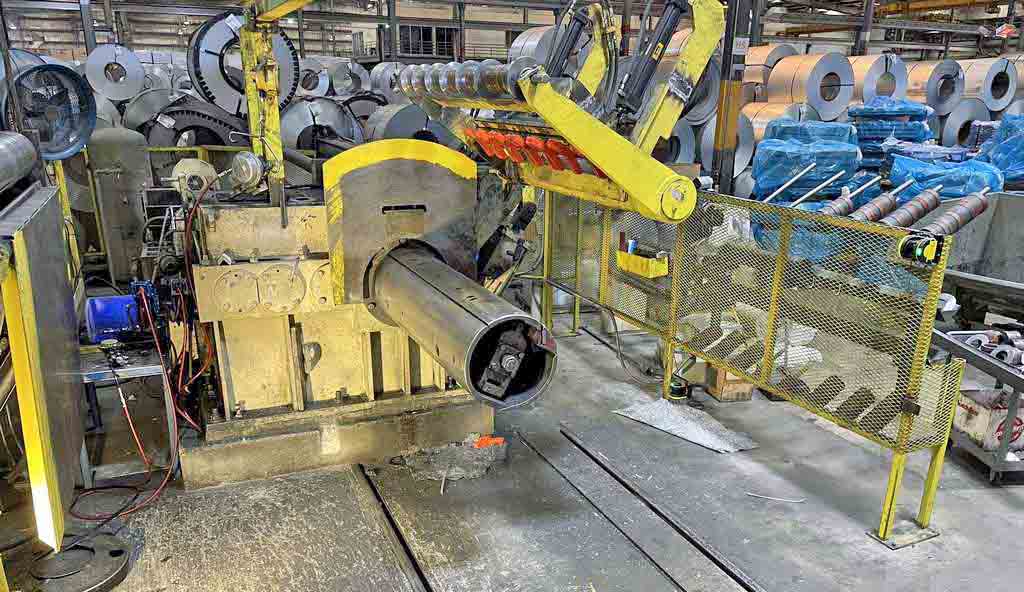

-Recoiler
100 HP DC Motor, 650/1950 RPM, 500 V

-Exit Coil Car, Above Floor

-Exit Turnstile, 4-Arm

-Line is Installed
