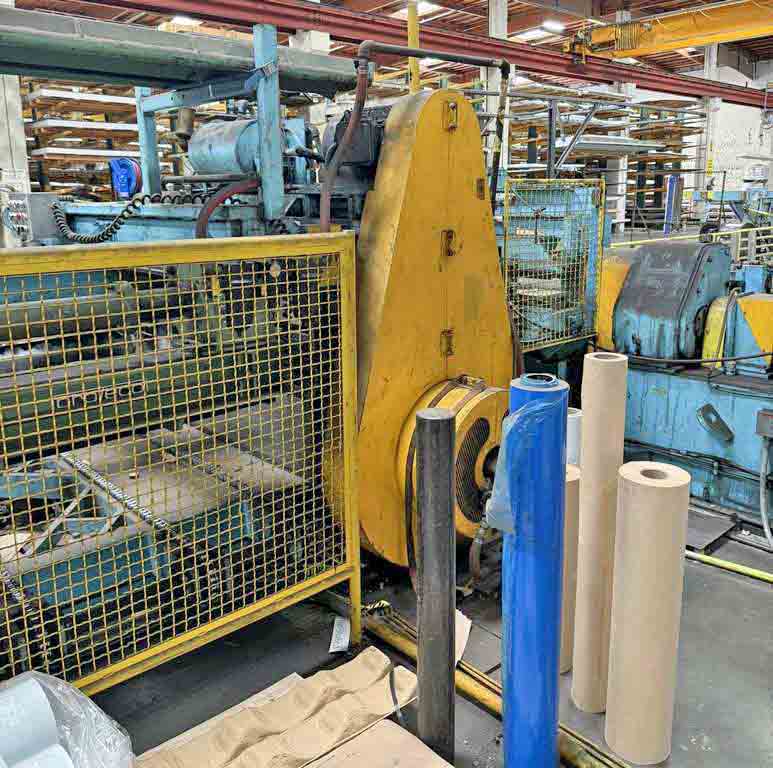

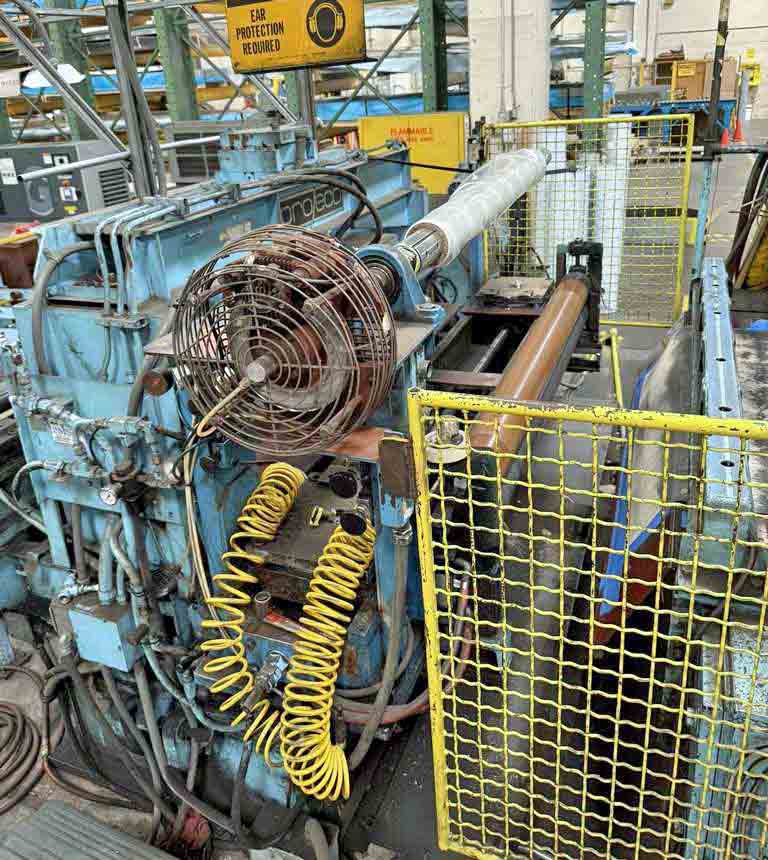

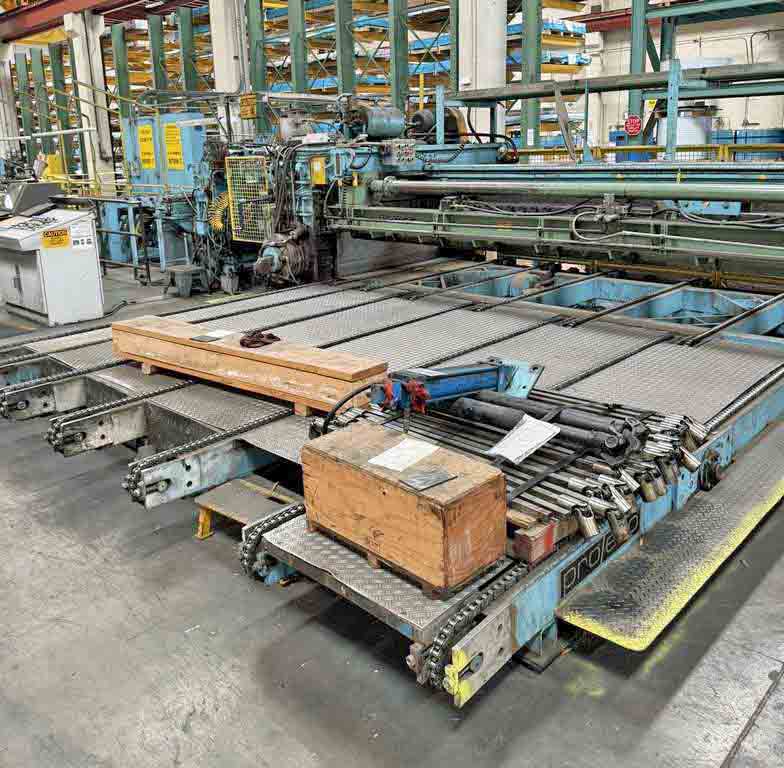

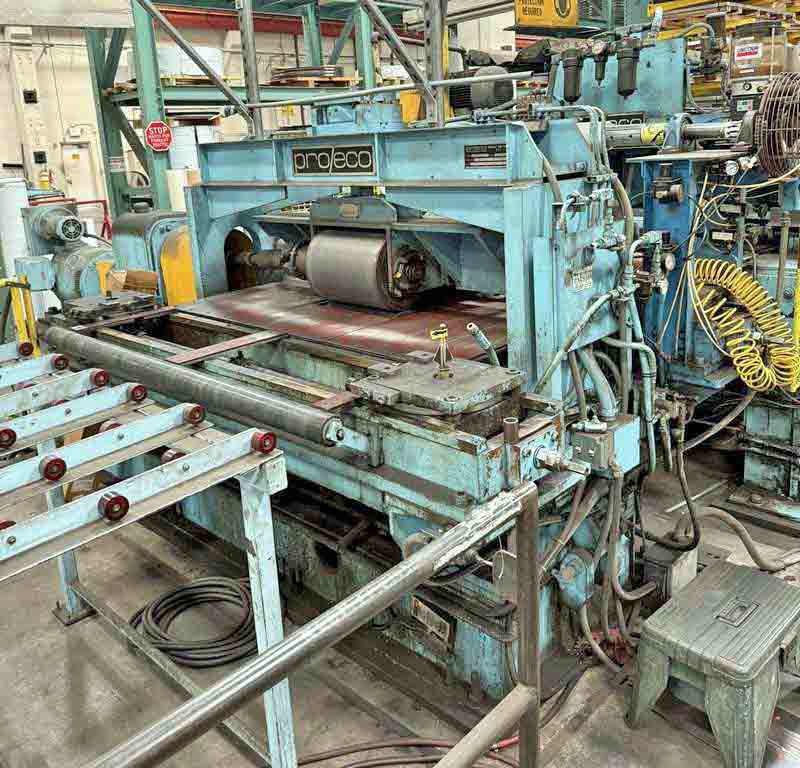

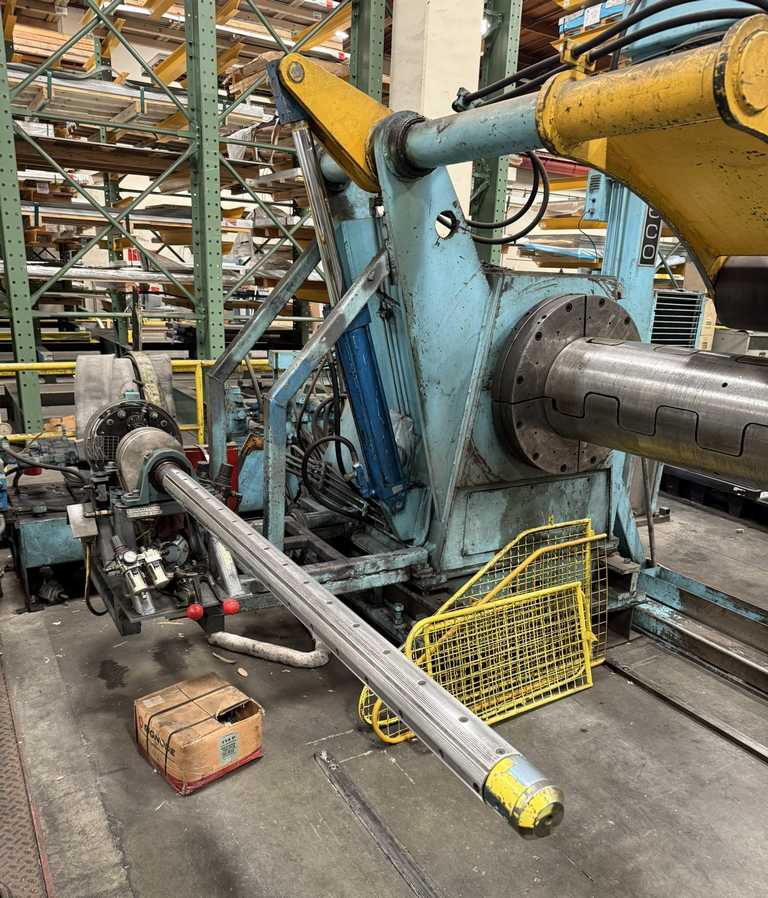

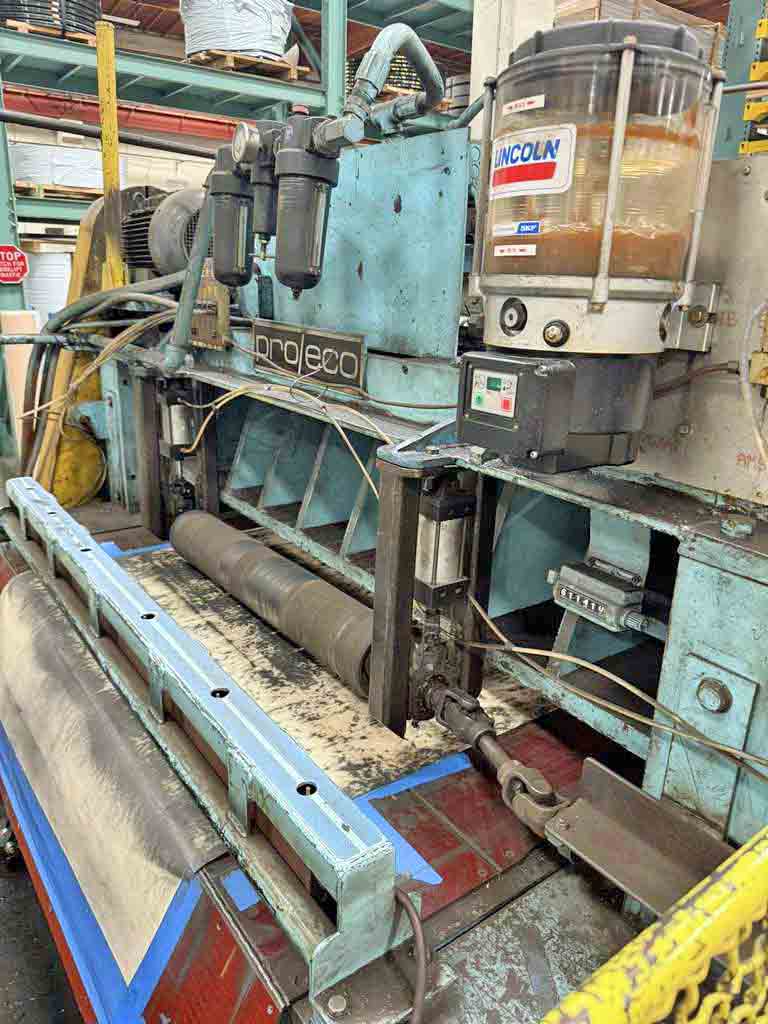

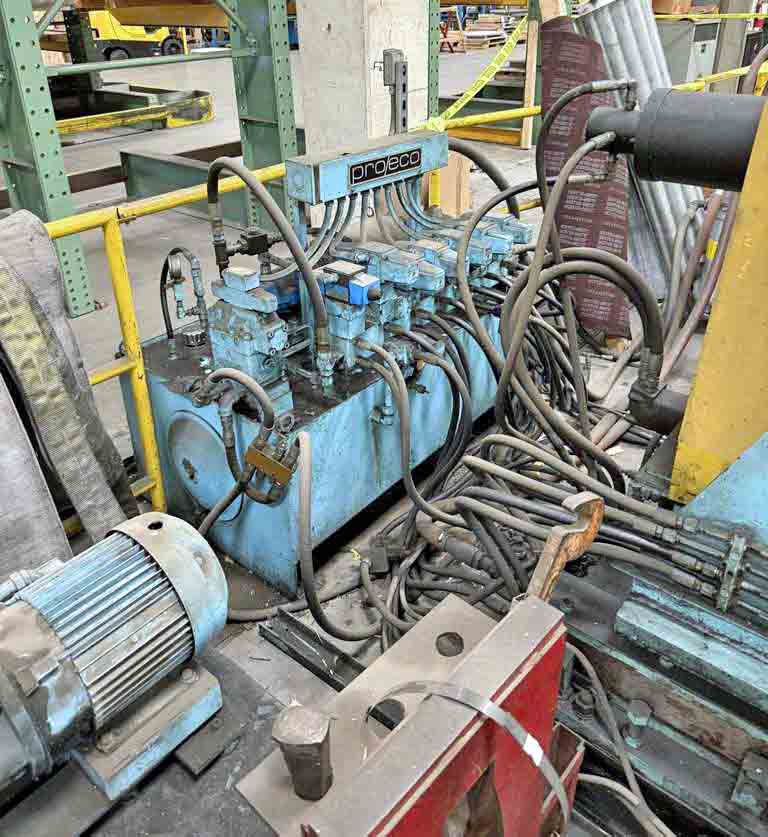

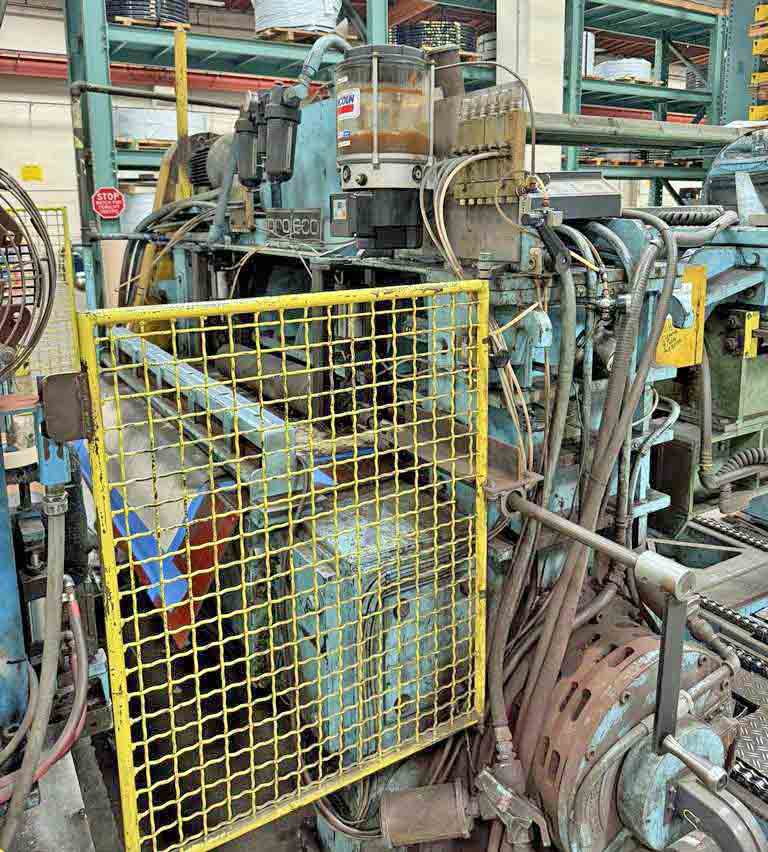

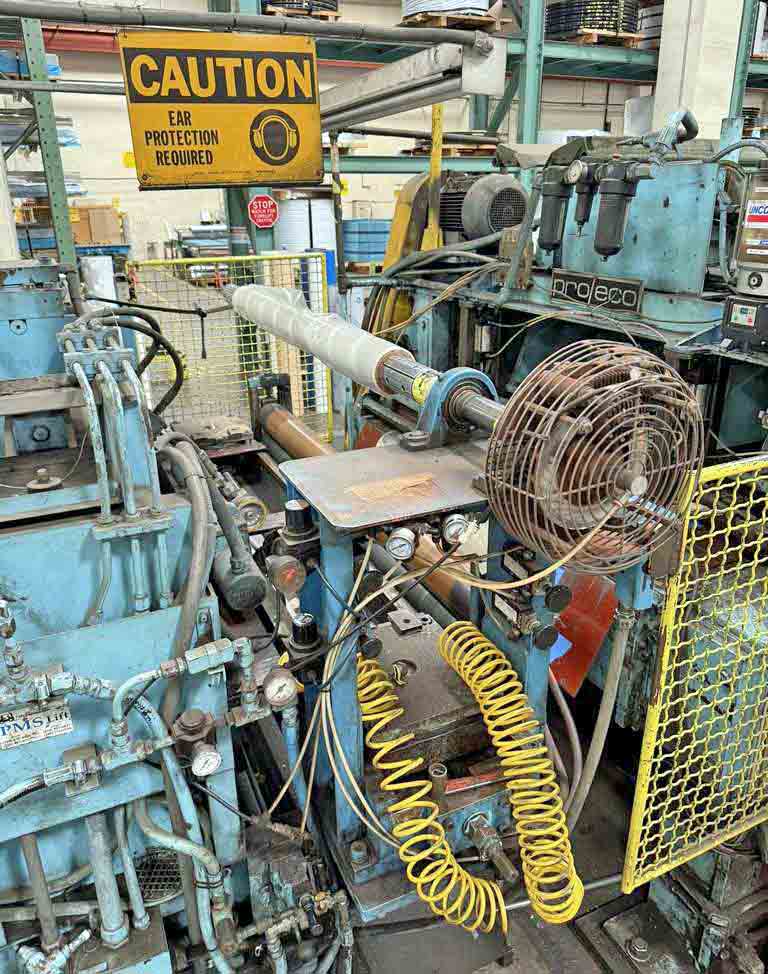

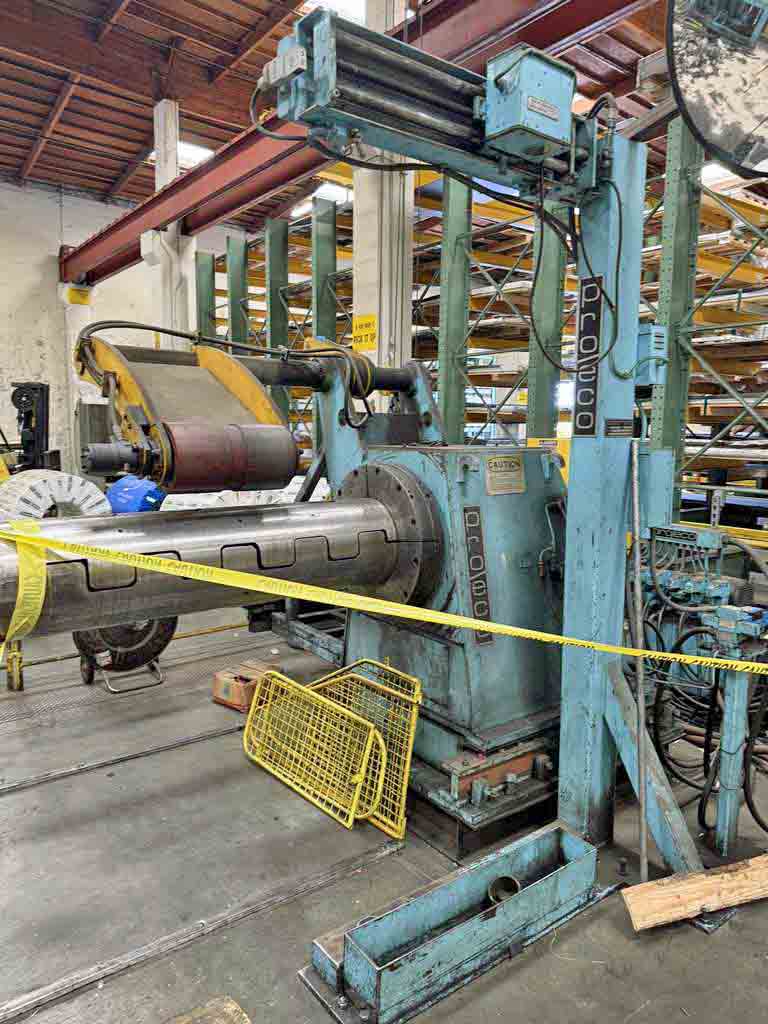

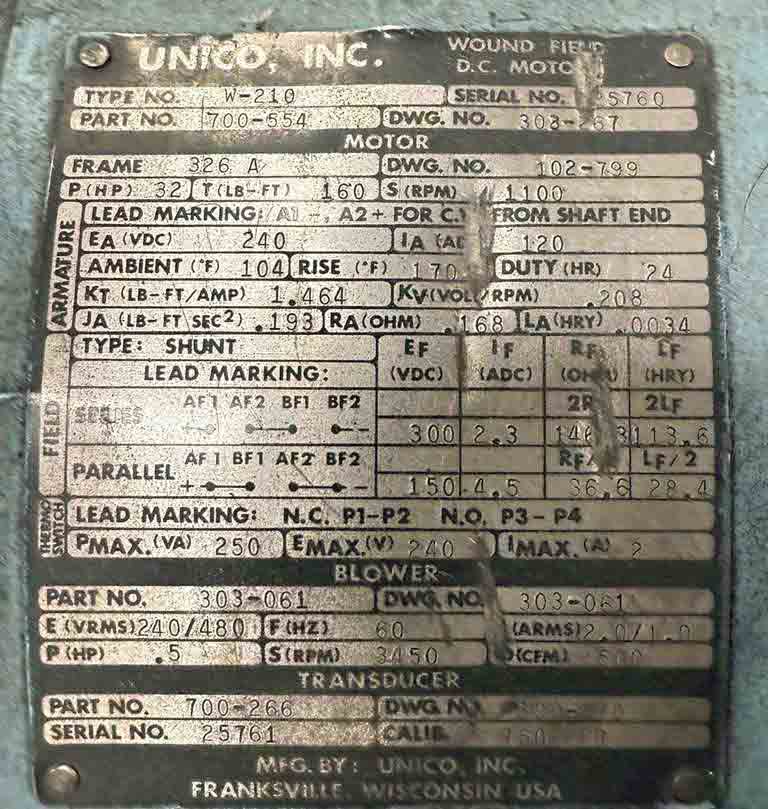

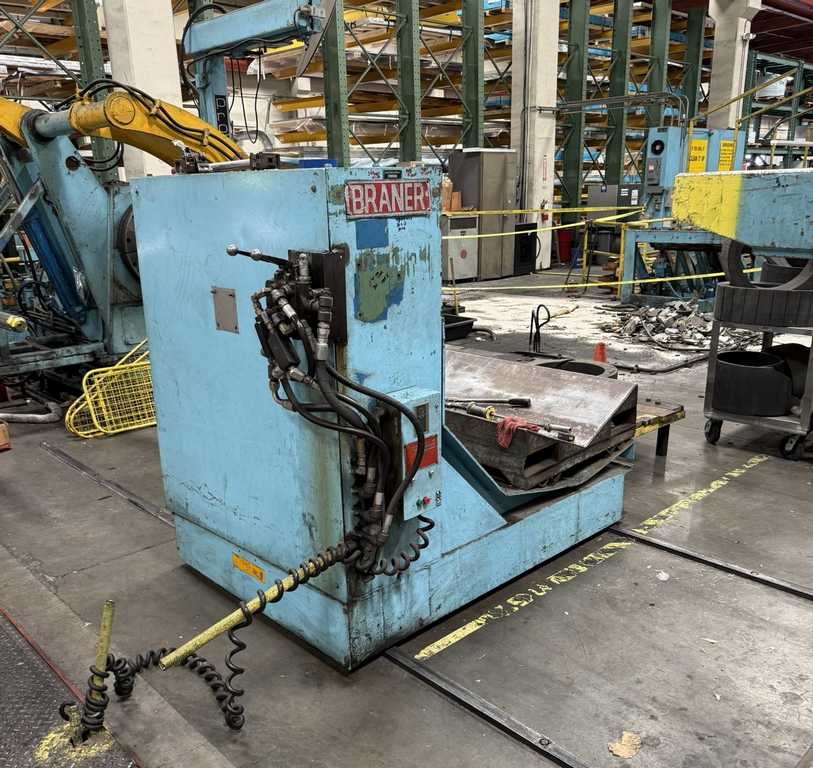

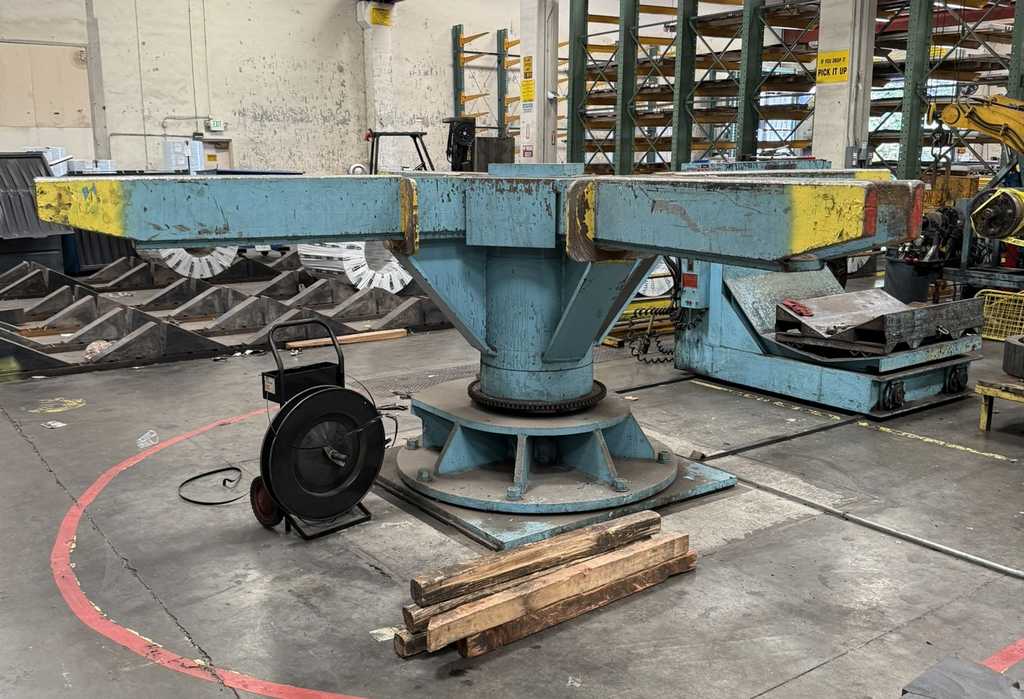

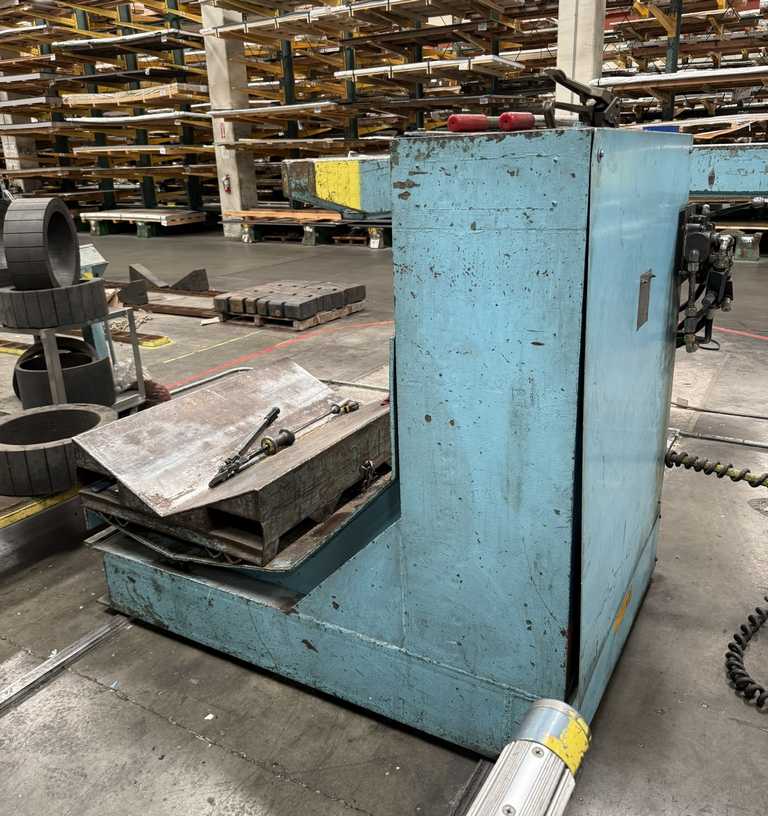

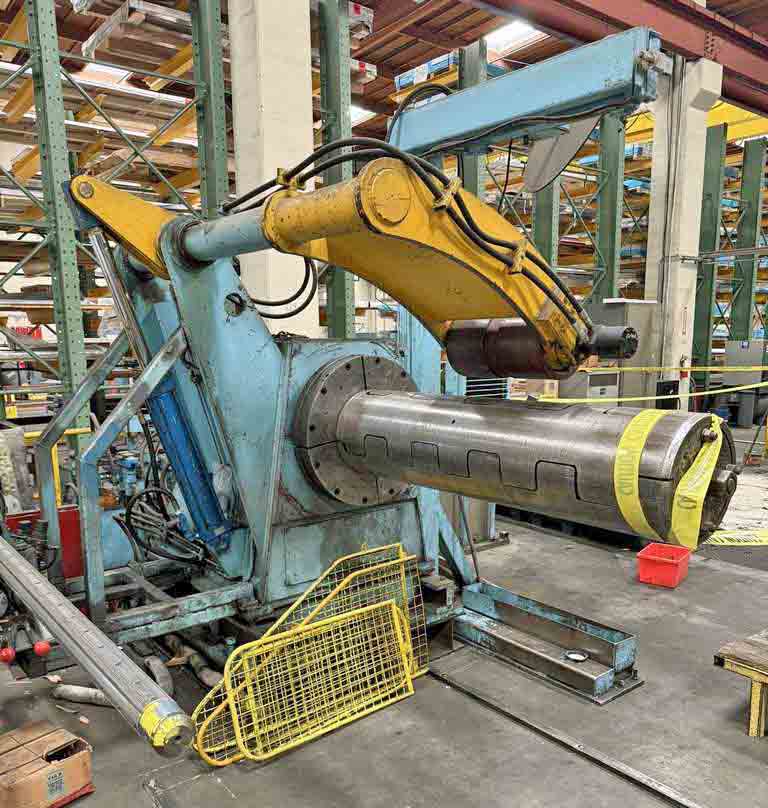

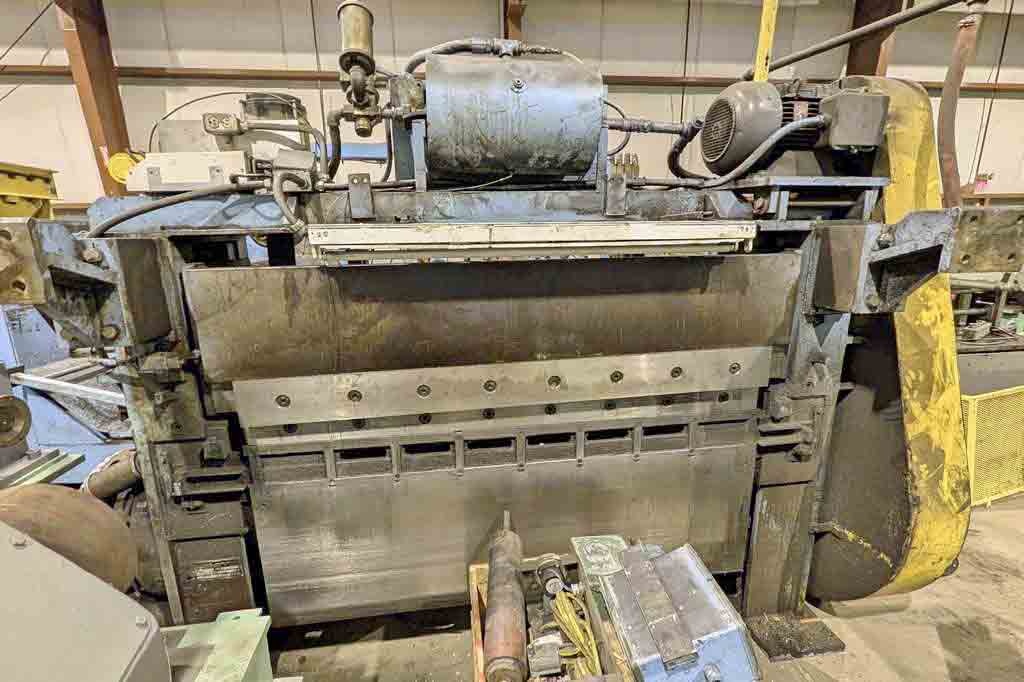

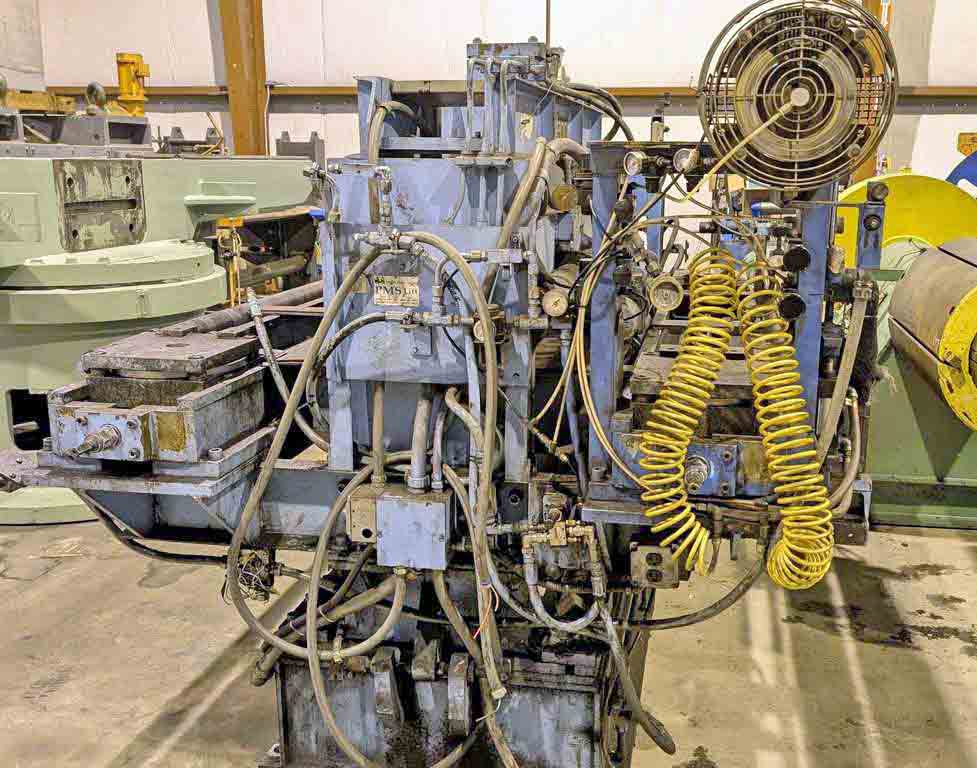

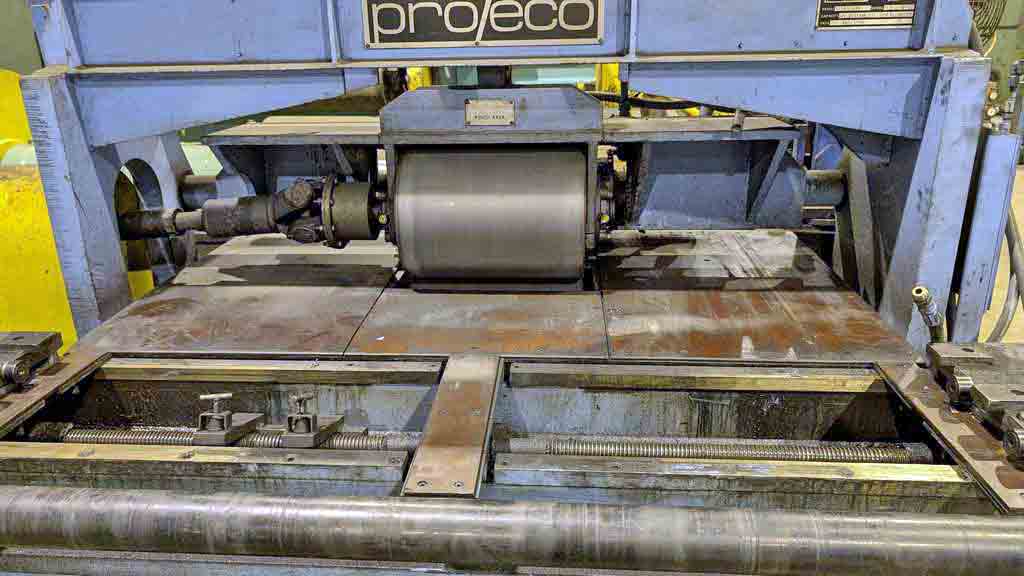

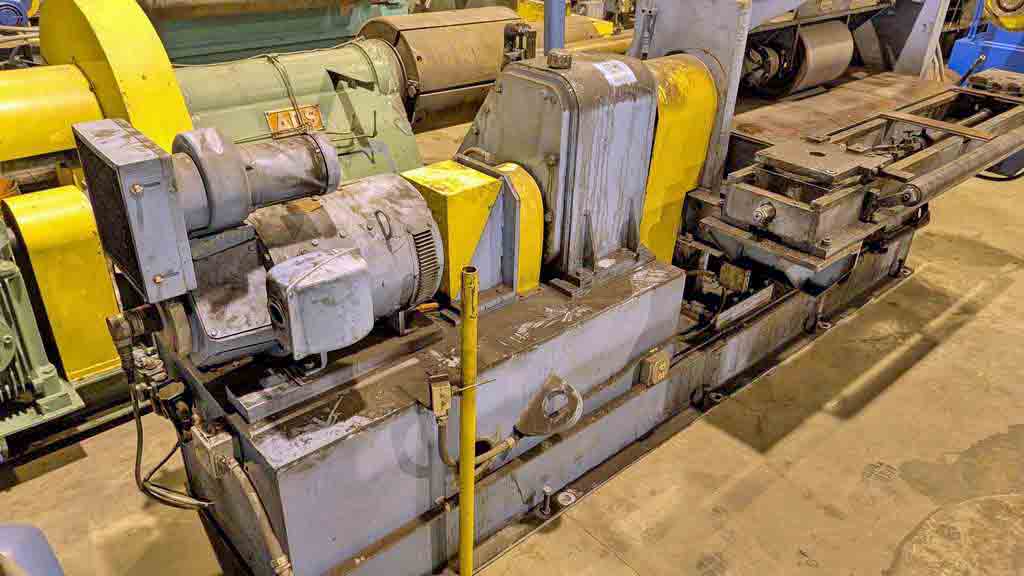

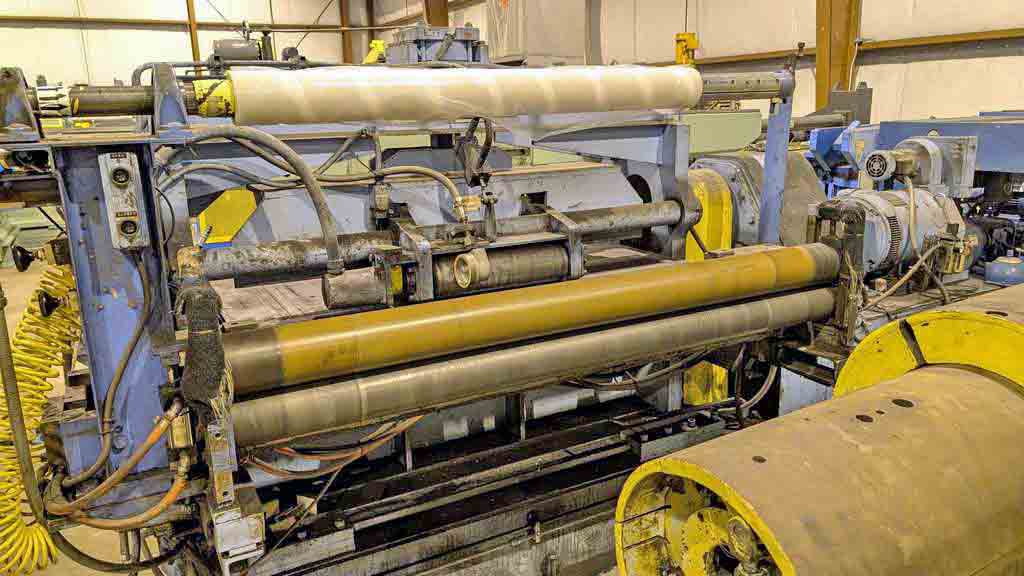

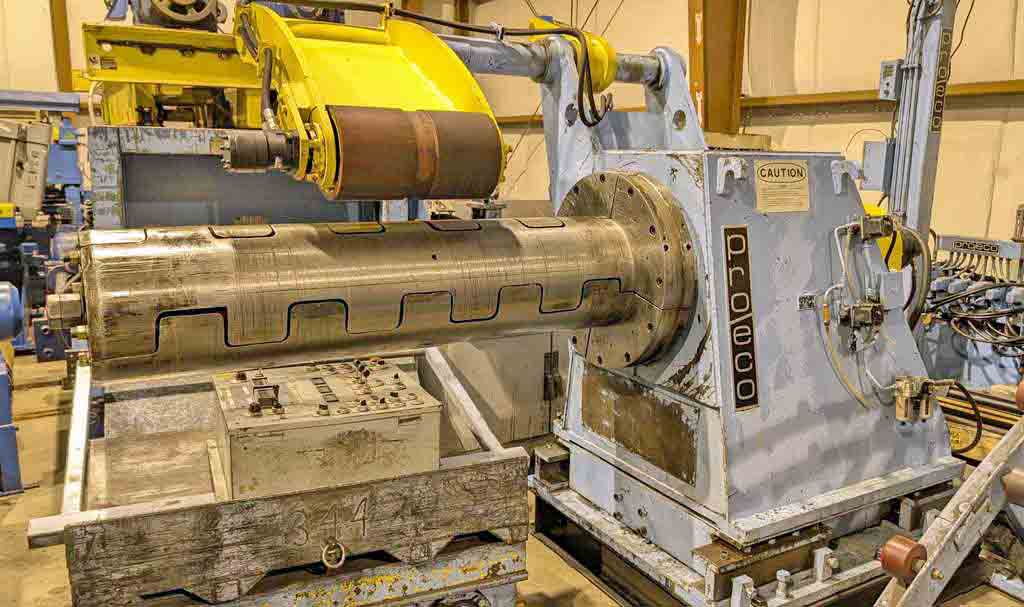

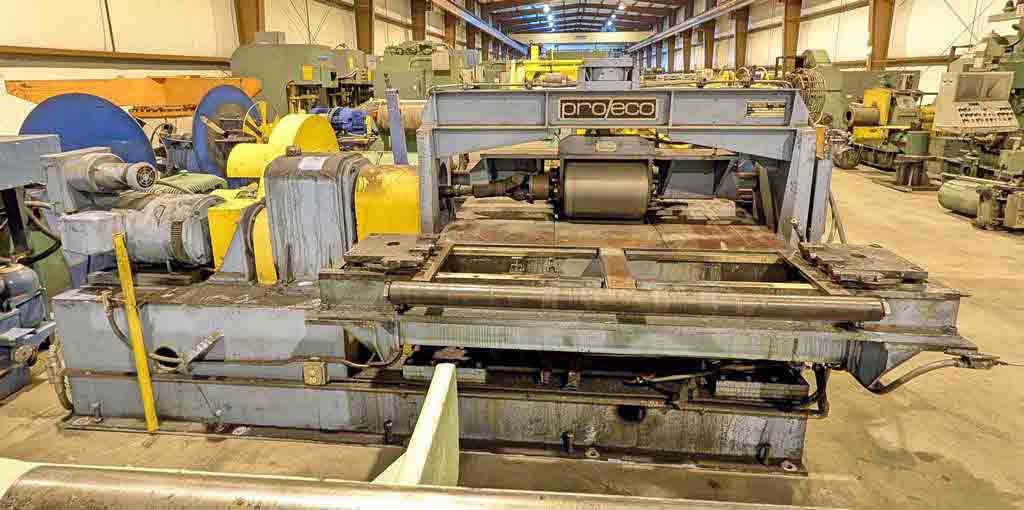

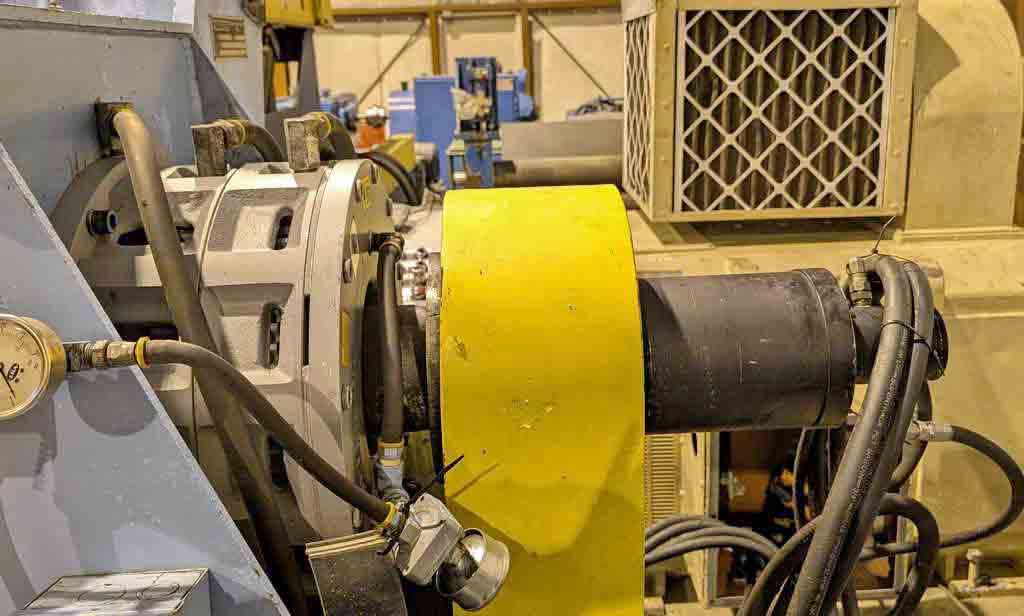

60" x 0.135" x 20,000# Pro Eco Cut-to-Length Line Consisting of the following: -4 Arm Entry Turnstile: Braner C-Hook Type Arms Powered Rotation 16" min ID -Entry Coil Car: Braner Above Floor Type 48" Wide Bed 72" O.D. Approx. 14" from Floor to bottom of "V" Cradle Removable Riser for Small Coil O.D.'s Self-Contained Hydraulics -Uncoiler: Model: UNC-20-60 S/N: 589-01-81 Hydraulic Expansion 16" - 20" Coil I.D. Range 61" Face Pumpkin Tooth Drum Wichita Kopper Kool Water Cooled Brake Sliding Base Powered Holddown Roll 60" O.D. Capacity Passline: 50" from Floor to center of Mandrel Overall Size: 146" L x 72" W x 91" High -Paper Winder: -Less Leveler: -Automatic Edge Control: Model: EG-FIFE-20-60 -Roll Feed: Model: PFR-12-16-60 S/N: 589-11-81 Entry Passline Roll Entry Side Guides 16" Face x 12" Dia. Drive Rolls Exit Side Guides Exit Measuring Encoder Roll Exit Passline Roll Unico DC Drive, 32 HP, 1100 RPM, 240 VDC Film Applicator Passline: 42" Overall Size: 171" L x 76" W x 73" High -High Speed Shear: Model: MCS-0.187-60-250 60" x 0.187" Capacity Entry Pinch Roll 66" Face Blades w/Straight Rake 30 HP AC Drive Motor, 1745 RPM, 460 V Air Clutch and Brake Passline: 42" Overall Size: 142" L x 57" W x 92" High -Automatic Stacker: 10,000# Stack Capacity Powered Width Adjustment Powered Length Adjustment -Side Discharge Chain Conveyor: -Line Direction: Left to Right -Removed and in storage: Toledo, OH. |
