40,000# x 80" Bushman Sheet Lifter

Ref # 11403

Click on photo to enlarge

YEAR: 2012

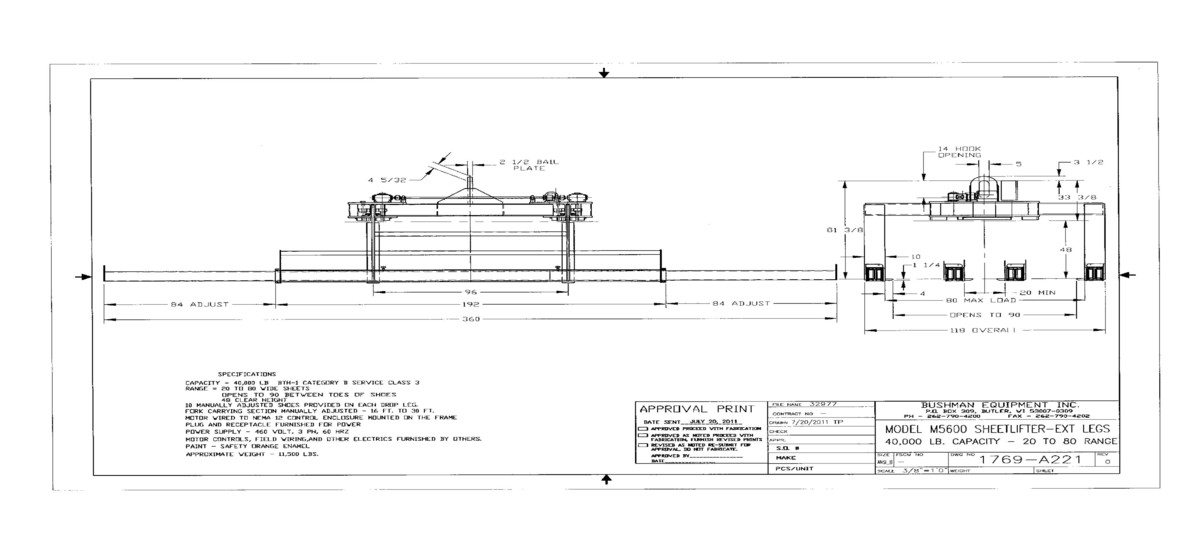

Bushman Sheet Lifter

Model: M5600

-Capacity: 40,000 lb.
-Range: 20" - 80" Wide Sheets
-Opens to 90" between toes of shoes
-48" Clear Height
-10 Manually adjusted shoes provided on each drop leg.
-Fork carrying section manually adjusted - 16' to 30' Long
-Motor wired to Nema 12 Control Enclosure mounted on the frame.
-Plug and Receptacle furnished for power
-Power Supply: 460 Volt, 3 PH, 60 HZ
-Motor Controls, field wiring and other electrics furnished by others.
-Shipping Weight: 13,250 lbs.

-In Storage
