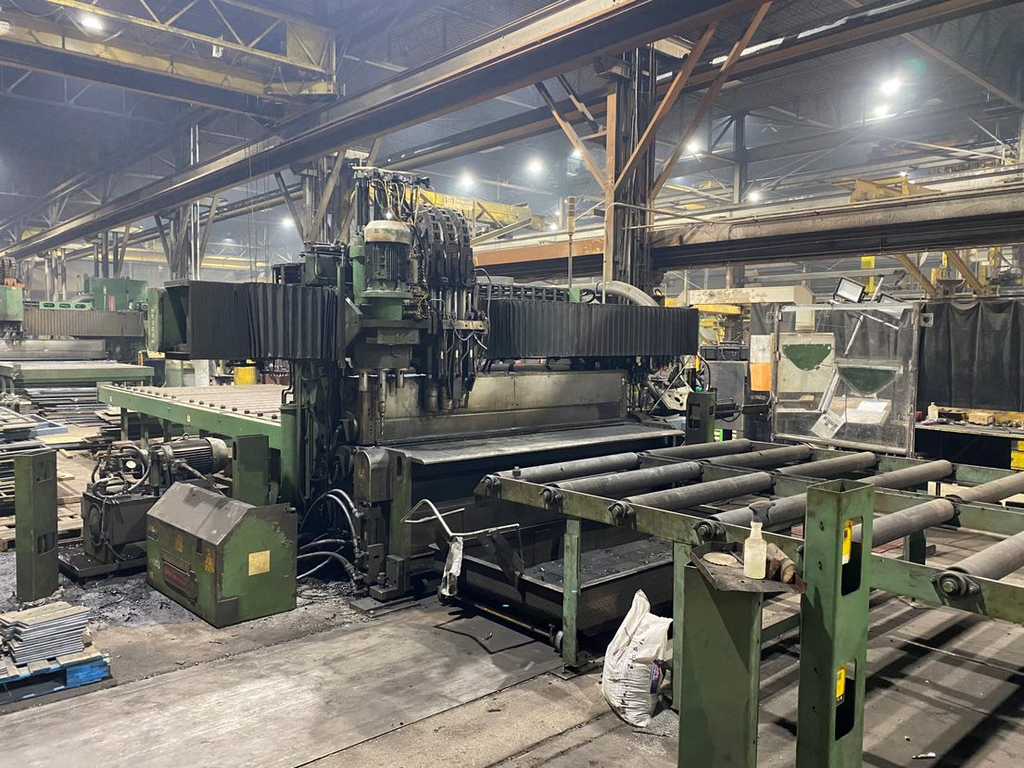

Drill Line, Peddinghaus

Ref # 11319

Click on photo to enlarge

YEAR: 2005


Model: FDB 2500
Plate Width: 6" - 96"
Plate Thickness: 0.250" - 3"
Length Piece: 36" - 240"
Minimum Plate Drop Off: 10" (Trailing Edge)
Passline: 40"
Weight Capacity: 20,125 lbs.
X-Axis: 600" Per Min.
Y-Axis: 600" Per Min.
Hydraulic Pressure: 1500 PSI

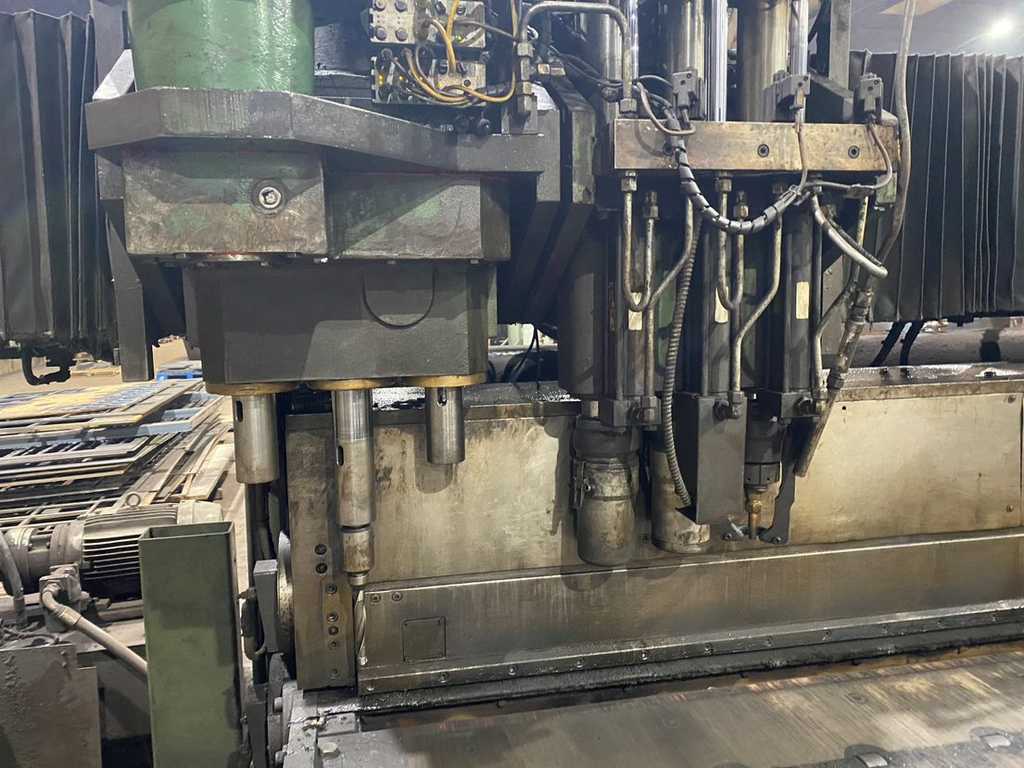

Drill Spindles: 1 - 3
Maximum Drill Size: 2"
Power Per Spindle: 15 HP
Spindle Travel Inches: 11 13/16"
Spindle Speed: 240" Per Min.
Variable Feeds: 1" - 12" Per Min. (Per Spindle)

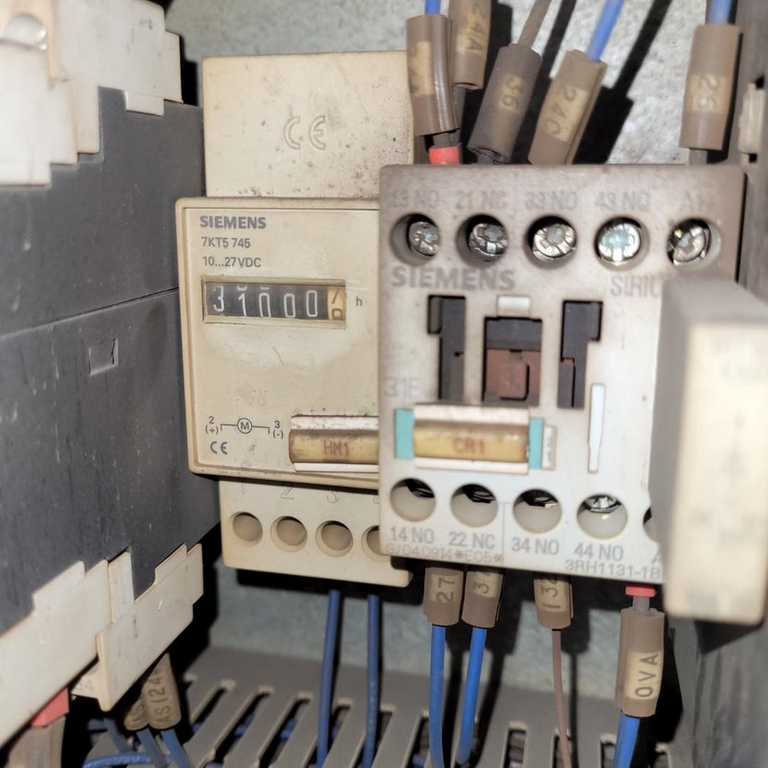

Hours: 31,000.8
