9 Stand 24.00" x 3.00" Yoder Rollforming Line

Ref # 11098-HK

Click on photo to enlarge


Yoder Cee Purlin Tooled, Gear Driven Rollforming Line

-Number of Stands: 9 (on 16 Stand Base)
-Roll Space: 24"
-Arbor Diameter: 3"
-Arbor Center to Center Distance: 17"
-Upper Arbor Adjustment: 5"
-Upper & Lower Power Driven Arbors
-75 HP Main Motor
-8" W x 3" Flange "Cee Purlin" Tooling
-9" W x 3" Flange "Cee Purlin" Tooling

Consisting of the following:

-Iowa Precision Entry Coil Car:
Model: CC020
20,000# Capacity
Serial #CC7914
Powered Lift
Powered Traverse
Overall Size: 48" L x 38" W x 42" High

-Iowa Precision Uncoiler:
Model: 20-48
20,000# Capacity
Serial No.: UC79027
45" Face Mandrel Segments
Expansion Range: 18" - 24"
Hydraulic Expansion
Threading Drive
Loop Control Arm
Overall Size: 114" L x 60" W x 82" High

-Tishken 7R-24 Straightener:
Serial #17092-79
18" x 12 ga. capacity
Number of Rolls: 5 (3 over 4)
Power Driven Pinch Rolls
Entry side guides

-Lee Shaffer H-70 F Strip Welder:
36" max strip width
Hydraulic double cut crop shear
Hydraulic clamp and push
Auto weld cycle

-Tishken measuring roll stand:

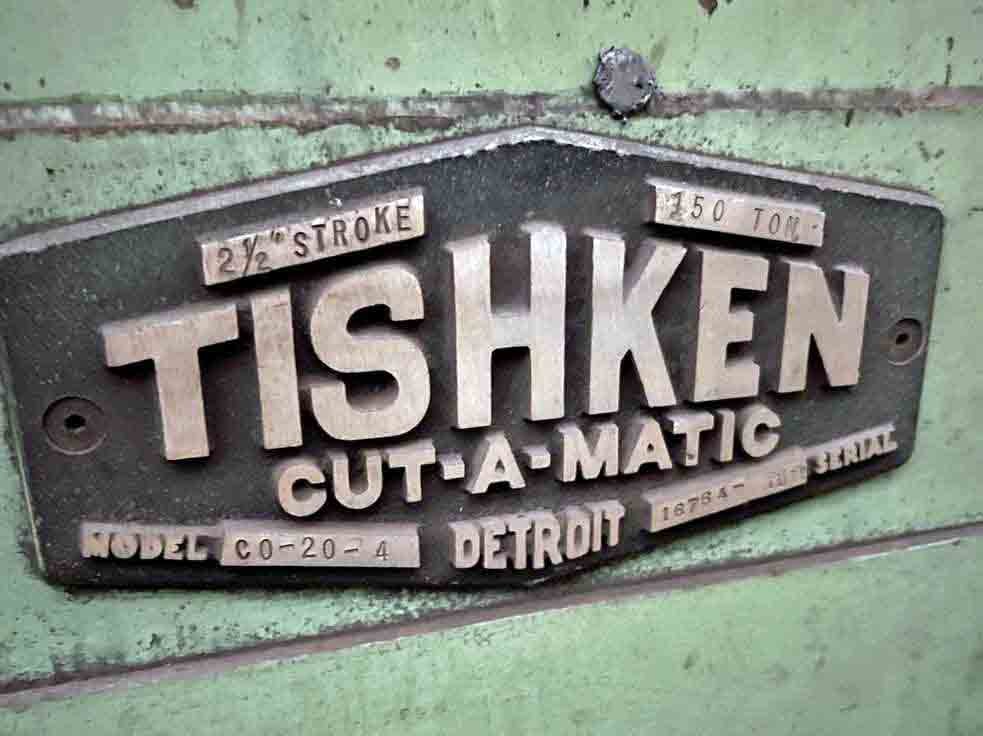

-Tishken CO-20-4-150:

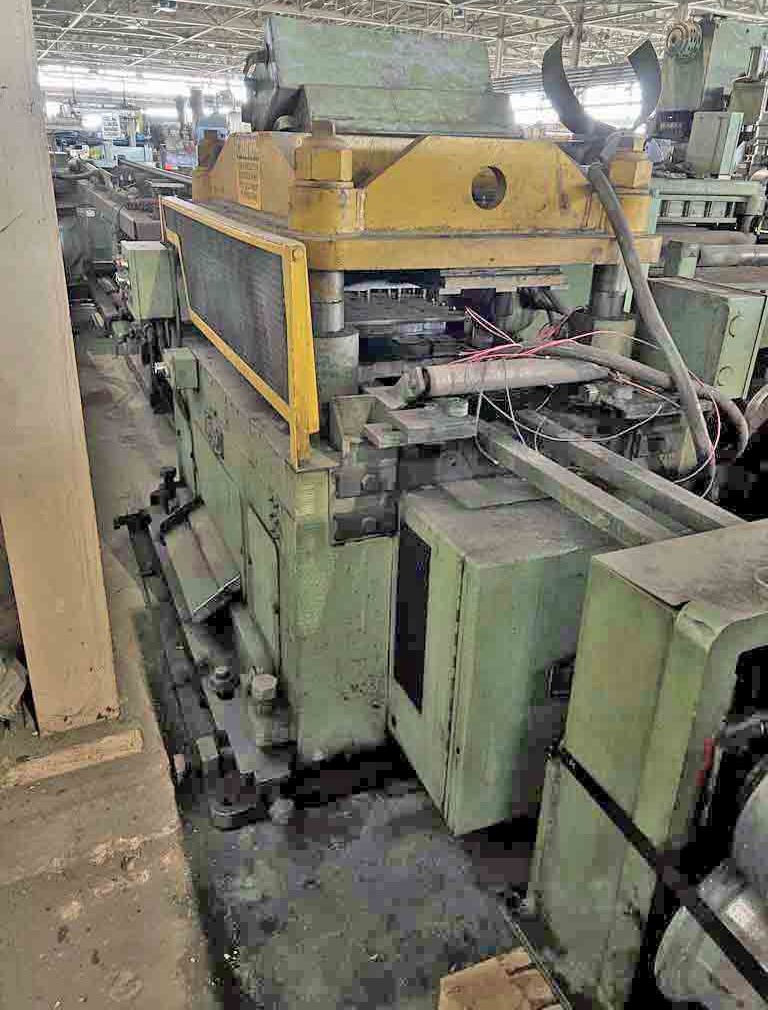

Pre punch and notch press
Adjustable locating holes in the die for punches and notches
Serial #16764-1179
Capacity: 150 Tons
Stroke: 2.5"
Air Clutch
Adjustable mounting base

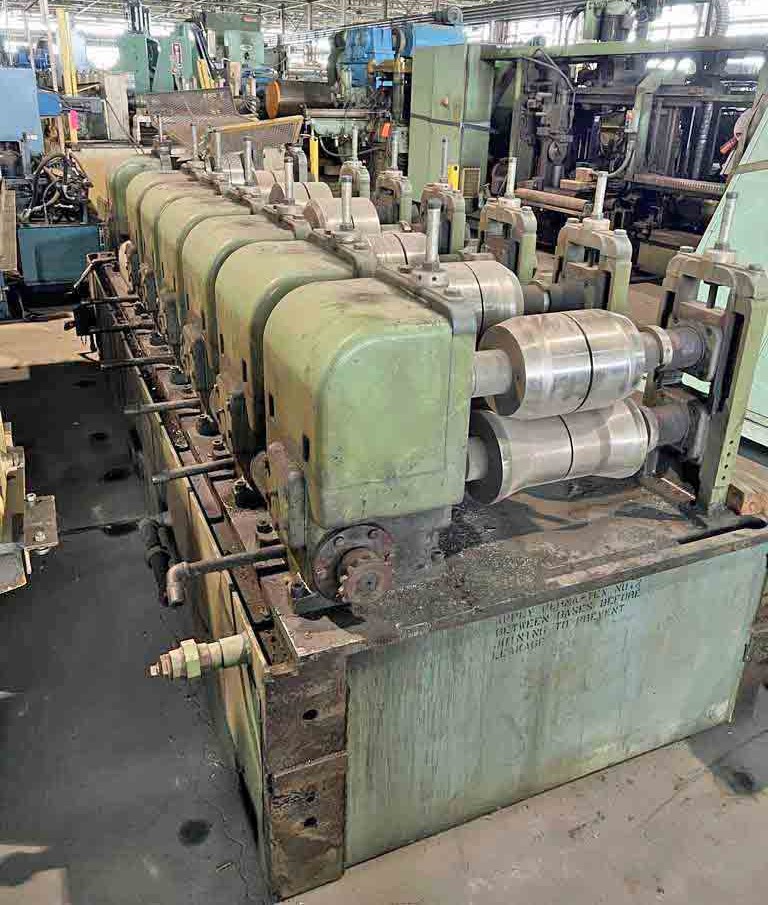

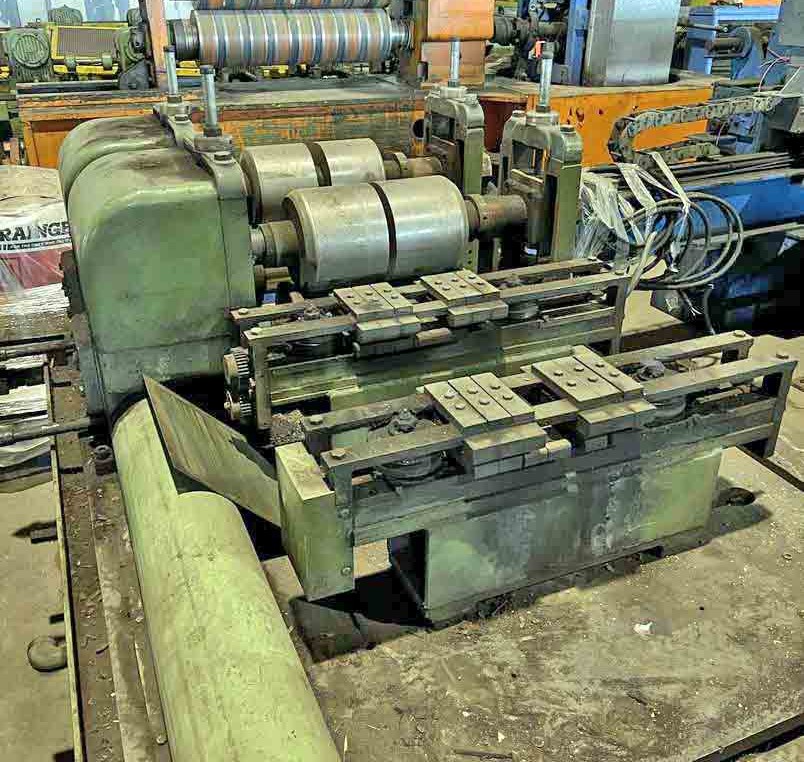

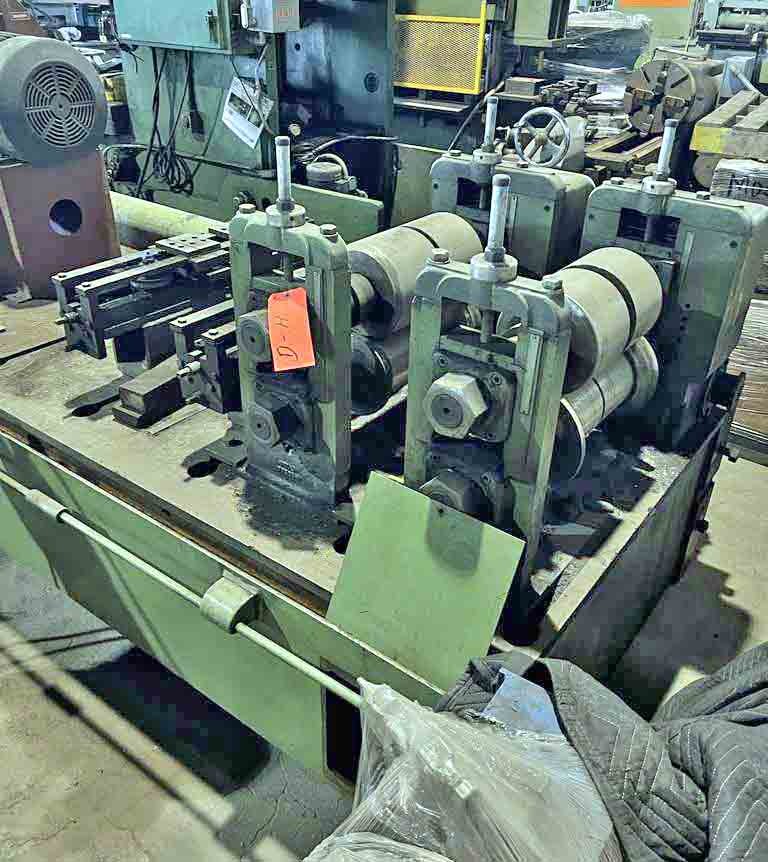

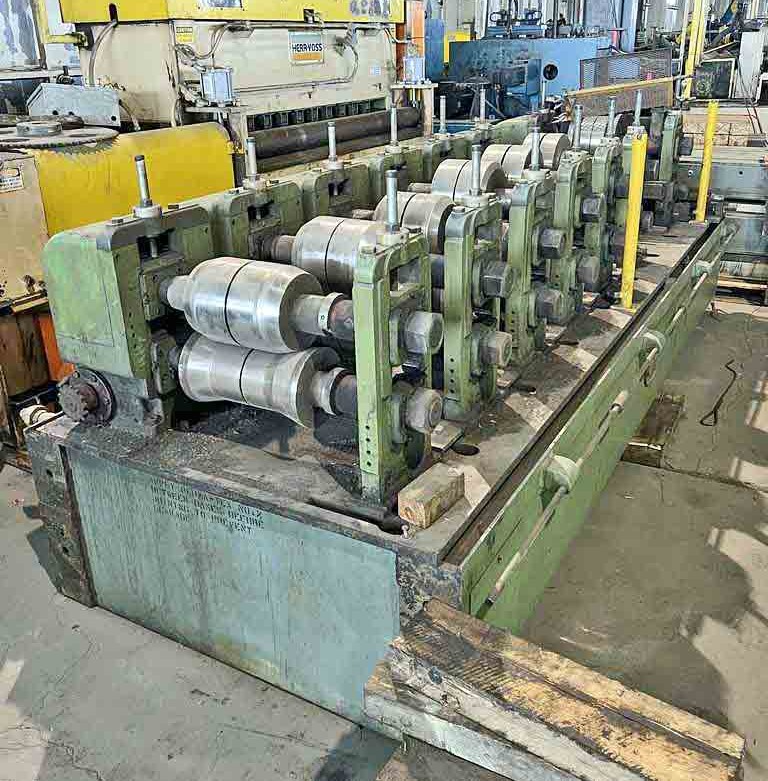

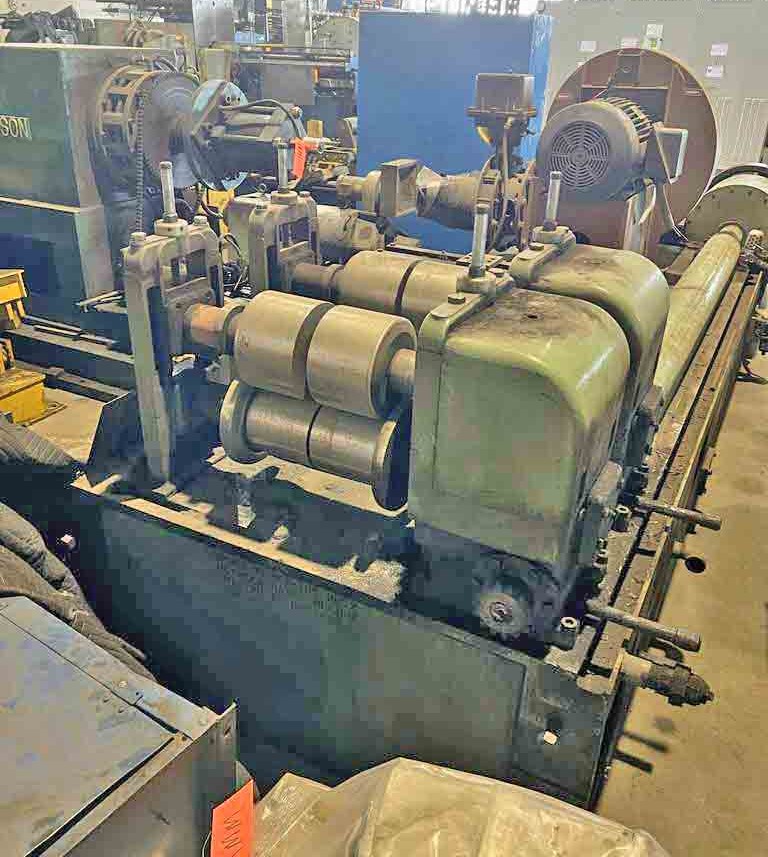

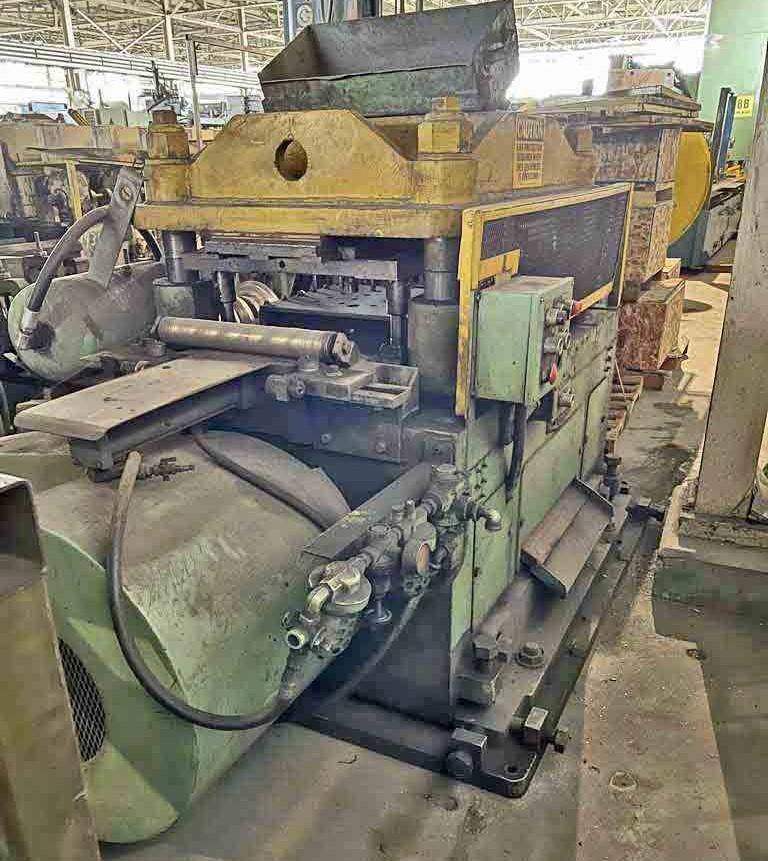

-Yoder rollformer
9 stands on 2 separate bases
one 7 stand base with 2 stands, and 2 side guide stands
one 8 stand base with 7 stands, and exit straightening fixture

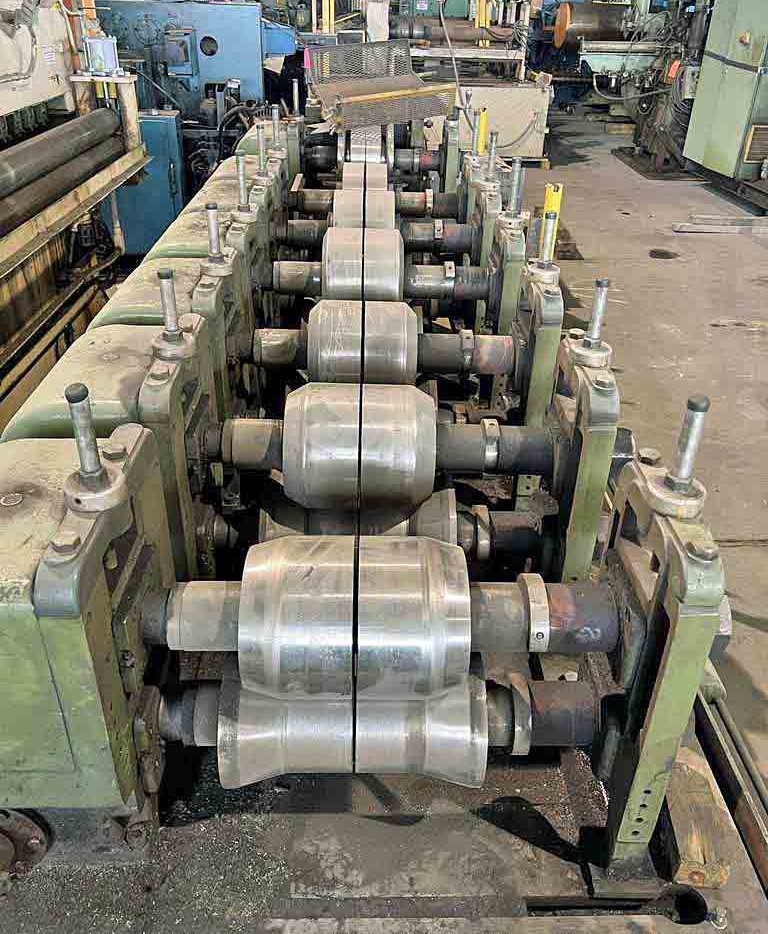

3" dia. tooling arbor
26" Roll Space
5.5" to 10" Vertical adjustment
18" Horizonal centers
8.5" base to CL of bottom shaft

-Tishken CO-20-18-60 Cutoff Press:
Serial #17230-1179
Capacity: 60 Tons
Stroke: 2.5"
Air Clutch
Mounting Base

-Controls, and operators desk
-All tooling and spacers to produce C Purlins
-Drawings, manuals and tooling drawings

-Removed and in Storage; Toledo, OH.
