48" x 0.075" G. Macicania Slear Line Components

Ref # 11009-HK

Click on photo to enlarge

YEAR: 2002


Capacity: 48" wide x 0.075" thick Slear Line
Line Direction: Left to Right

Consisting of:

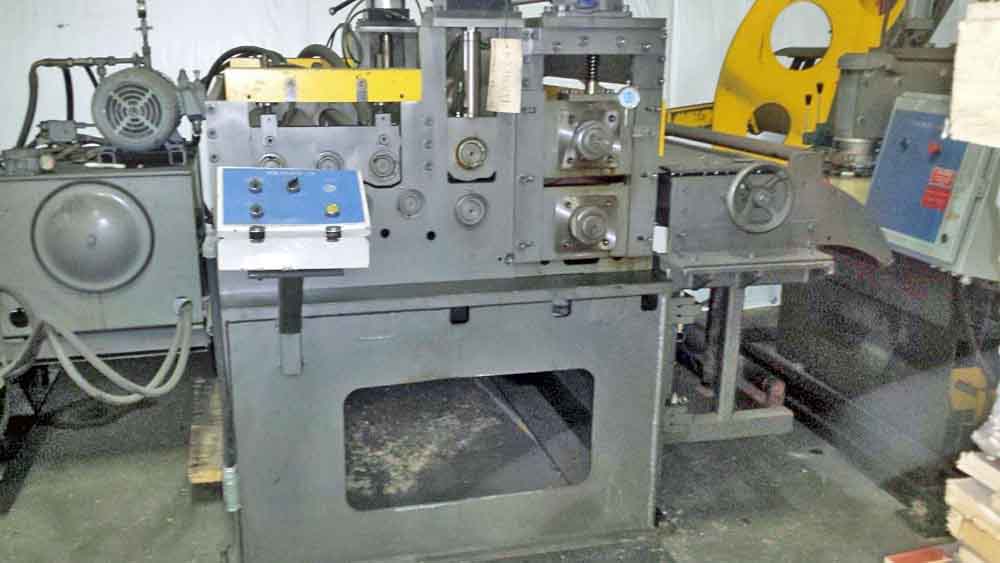

-Slear Unit:
S/N: A3021-04
Catenary Rolls:
Entry Side Guides:
Manual Hand Crank Adjustable
Slitter Head:
6" Dia. Arbors
Jack Screw Upper Arbor Adjustment
Hub Type Knives
Pinch Rolls:
Air Cylinder Operated
Straightener: 7 Work Rolls
54" Roll Face
4" Diameter Rolls
3 over 4 Design
Manual Adjustment of Top Rolls
AC Servo Motor Drive

-Operators Panel mounted on Slear:
Allen-Bradley Panel Mate

-48" Wide x 0.075" Servo Feed
49" Roll Face
5" Diameter Roll
Entry Catenary Rolls
Adjustable Side Guides
1.45 KW, 3000 RPM Servo Drive Motor

-Shear Blade Die: (Cut-Off Press not included)
54" Wide Blade
Bump Type Die
Overall Dimensions: 13.5" Wide x 62" Long x 9" High

-Main Electrical Panel:
Emerson Servo Control
Allen-Bradley PLC

-In Storage; Toledo, OH.
