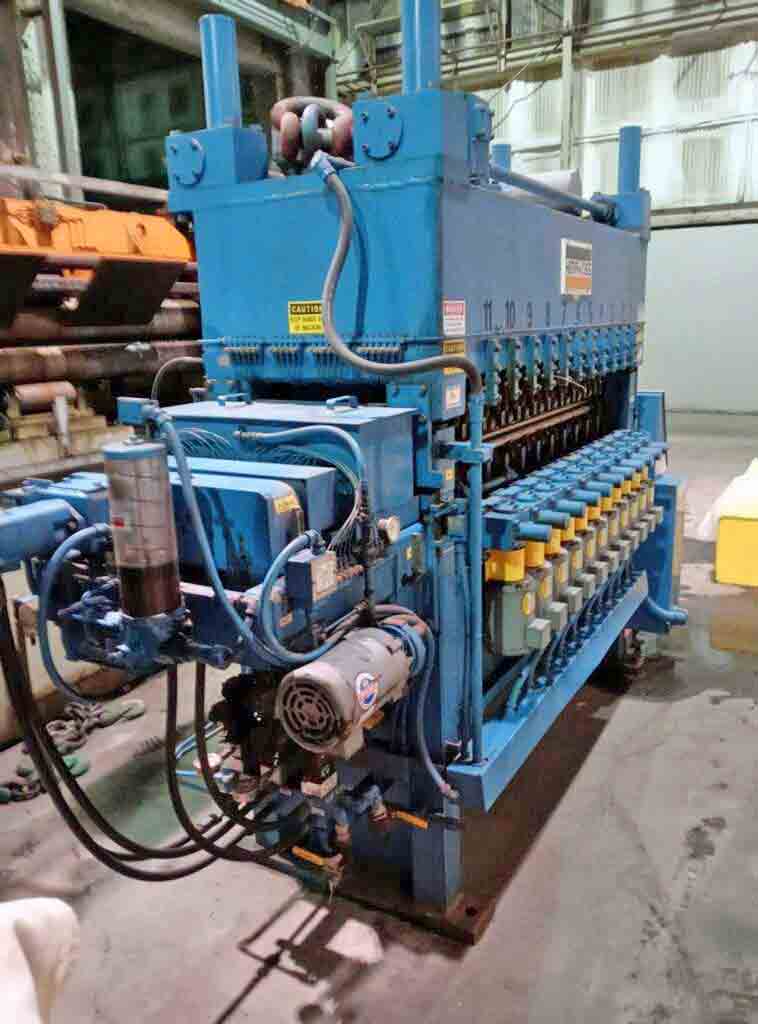

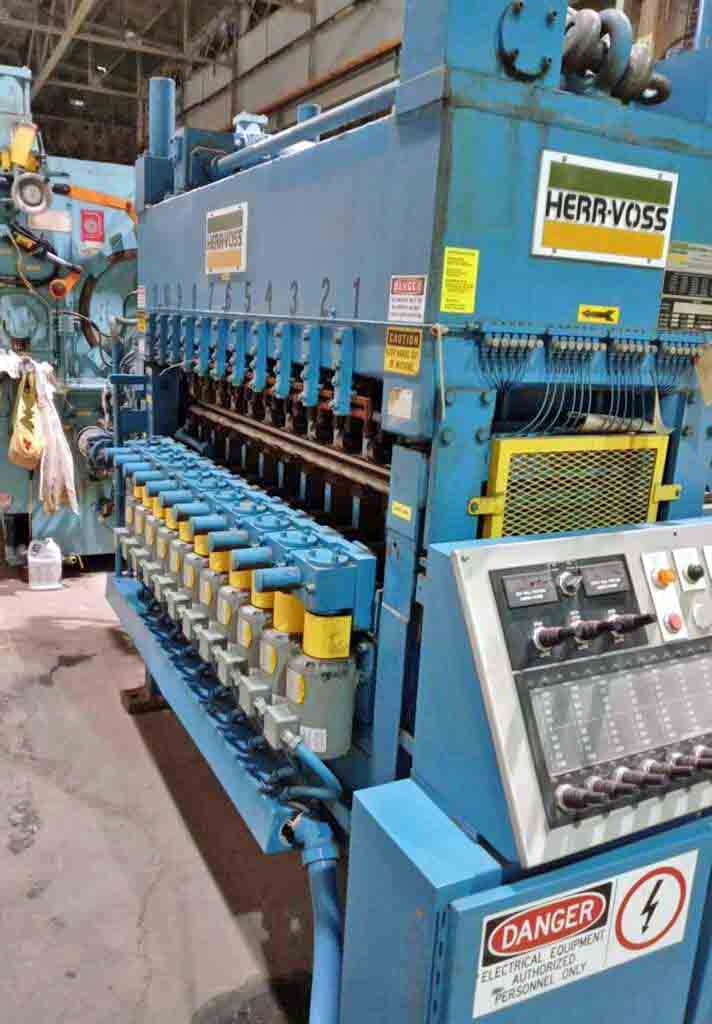

Herr Voss Strand Extensioner 5 HI
-Model: 72/1.156-23/5 HI / RH
-Width Capacity: 62.5" Max.
-23 Roll design, 11 over 12
-Minimum Coil Thickness: 0.008"
-Maximum Coil Thickness: 0.040" (0.076" depending on Recoiler hp)
-Maximum Line Speed: 1500 FPM
-Material Yield Strength: 12,000 to 40,000 PSI
-72" Roll Face
-1.1560" Roll Diameter
-11 Flights of Motorized Backups
-Hydraulic Motor Drive with Pinion Box
-Lube system

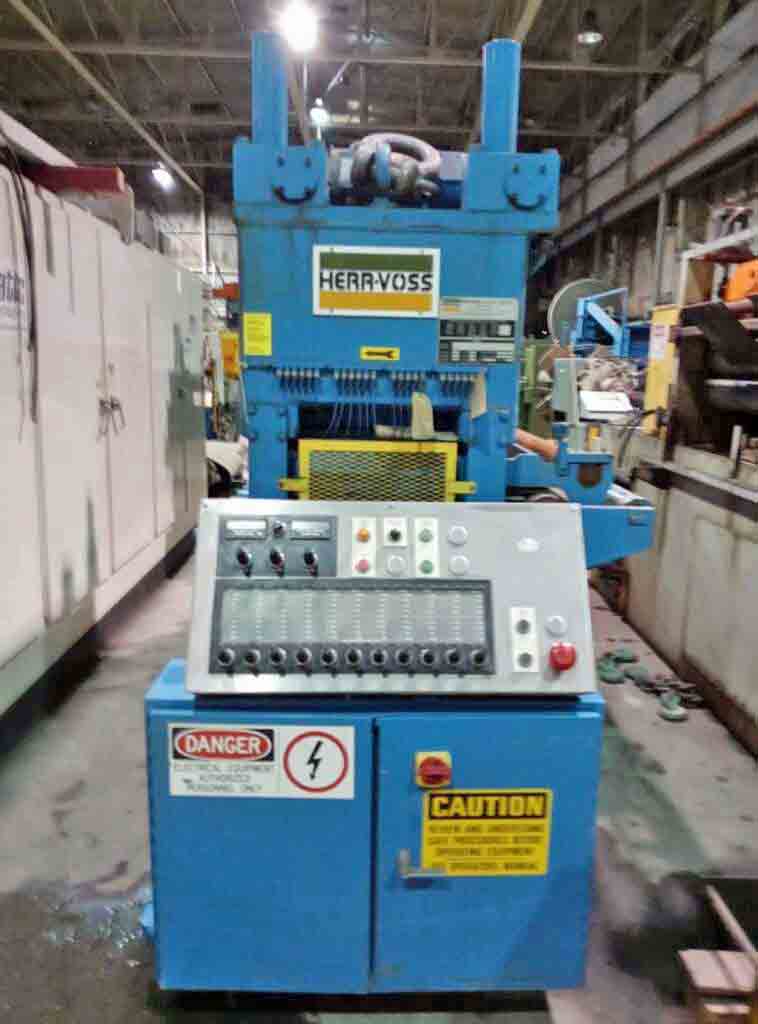

-Operators Panel w/Joystick Controls
-Passline: Approx. 52"
-Line direction: R - L
-Removed and in Storage: Detroit, MI.

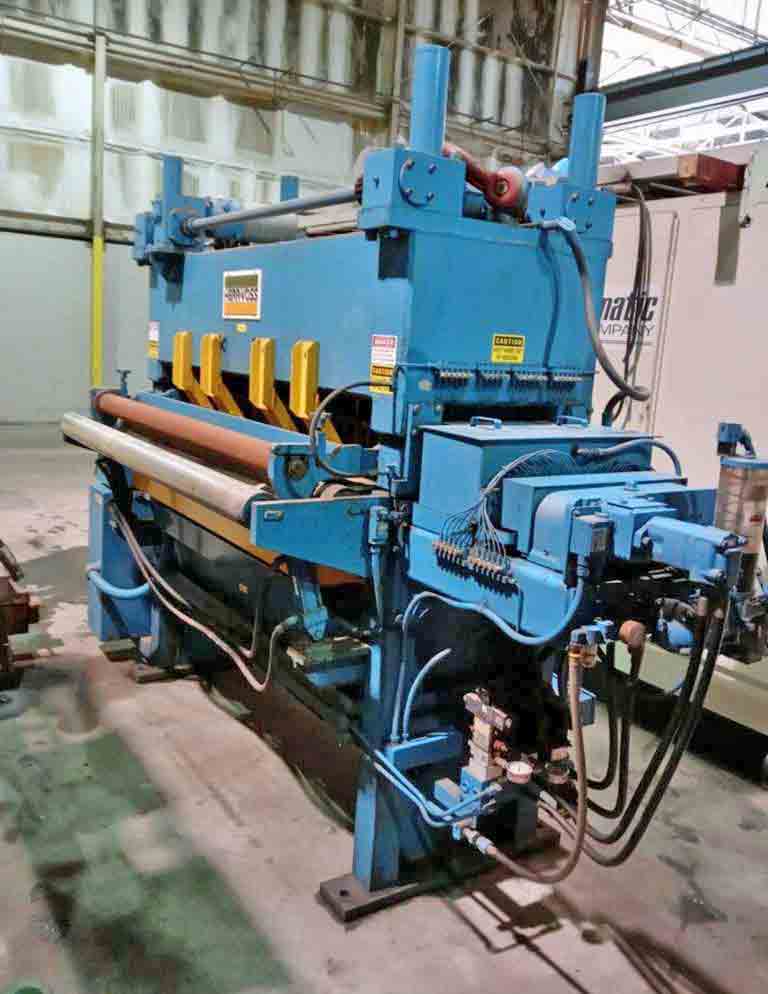

Exit Unit:
-Deflector Roll, 21" Dia. x 72" Face, Polyurethane Covered
-Bottom Nip Roll, 6" Dia. x 77" Face, Polyurethane Covered
Driven by Hydraulic Motor
-Hydraulic Crop Shear
72" Long Blade
-Exit Threading Table
-Attached Operators Panel
-Passline: Approx. 52"
-Operators/Maintenance Manual with Machine Drawings
-Spare Rolls
-Removed and in Storage: Detroit, MI.
|
