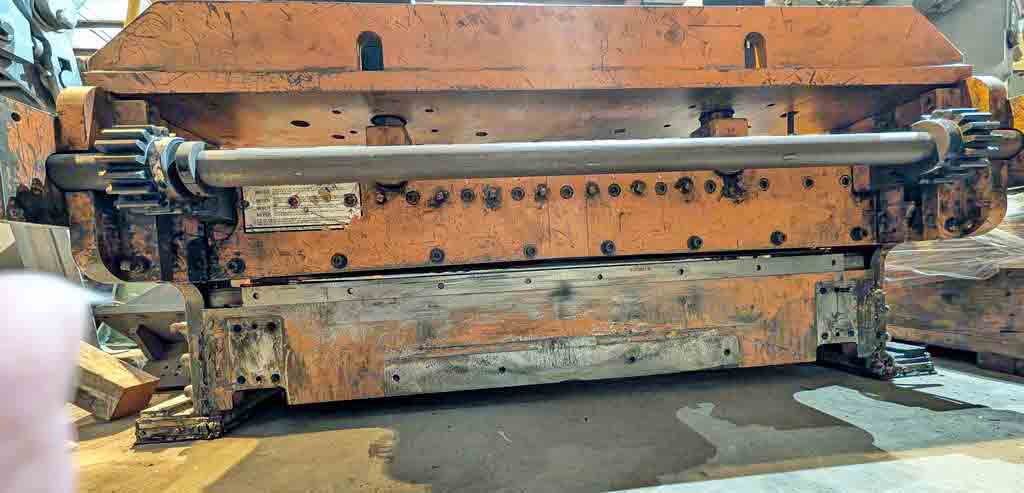

0.036" x 4' Strilich Hydraulic Shear

Ref # 10762-HK

Click on photo to enlarge

YEAR: 2000


-Strip Width: 50" Maximum (48" Nominal)
-Material Thickness: 0.036" Maximum, 0.015" Minimum
-Maximum Yield: 35,000 psi

-Four (4) side high carbon - high chrome shear blades, upper bowtie,
lower straight rake blade.
-Strokes Per Minute: 170 (40 Cuts Per Minute)
-Shear ram actuated through two (2) heavy duty hydraulic cylinders and
rides on replaceable bronze wear plates.
-Rack & Pinion Shear Ram Design.
-Non-Marking Stripper Bar.
-Includes Dedicated Hydraulic Power Unit for Shear actuation.
-Complete controls with start/stop/crop/inch buttons.
-Shear head mounted on adjustable slide base adjusted through precision
jack screws via AC gear motor to handle lengths from 72" - 96.50".
-Shear mounting includes squaring adjustment to allow cuts to be taken
out of perpendicular to the line's center axis. This provides for slight
compensation to be made to attain even diagonal measurements on sheets
produced from cambered material.
-Two (2) hardened roller type entry guide assembly is mounted on shear
and includes a +/- 1/2" lateral micro-adjustment with center indicating
position pointer. This single point adjustment allows for slight off-center
positioning of the incoming strip.
-Guides are adjusted relative to centerline through left and right hand
acme screw arrangement with a hand wheel.
-Exit Powered Belt Conveyor section.

-In Storage: Griffith, IN.
