54" x 9.00" x 40,000# Loopco Slitting Line

Ref # 10524-HK

Click on photo to enlarge

YEAR: 1973


Capacity: 0.010" - 0.250" Mild Steel
Coil Weight: 40,000#
Line Direction: Right to Left

Consisting of:

-Entry Coil Car: Revolvator
40,000# Capacity
60" wide Bed
72" O.D. Capacity
(2) - 5" bore hydraulic lift cylinders
Lift: Approx. 16"
Self-contained hydraulics
3 HP AC motor
Each axle individually driven by hyd. motors
Pushbutton control
Approx. 12" from floor to bottom of "V" cradle
Removable 5" high riser on bed
Overall size: 90" L x 64" W x 89" High

-Uncoiler:
20" - 24" I.D.
Hydraulic Expansion
Pumpkin Tooth Mandrel
54.5" Face Mandrel
Powered Holddown Roll w/Rubber Covered Roll
AC Motor Threading Drive w/Air Clutch
Sliding Base
Wichita Water Cooled Brake
Water Cooler for Brake
Passline: 40" from Floor to Center of Mandrel
Overall Size: 150" L x 74" W x 93" High

-Entry Unit:
Threading Table
Pinch Rolls, 8" Dia. x 56.5" Face Rolls, Idler Type
Side Guides, Manual Adj.
Passline: 47"
Overall Size: 84" L x 50" W x 75" High

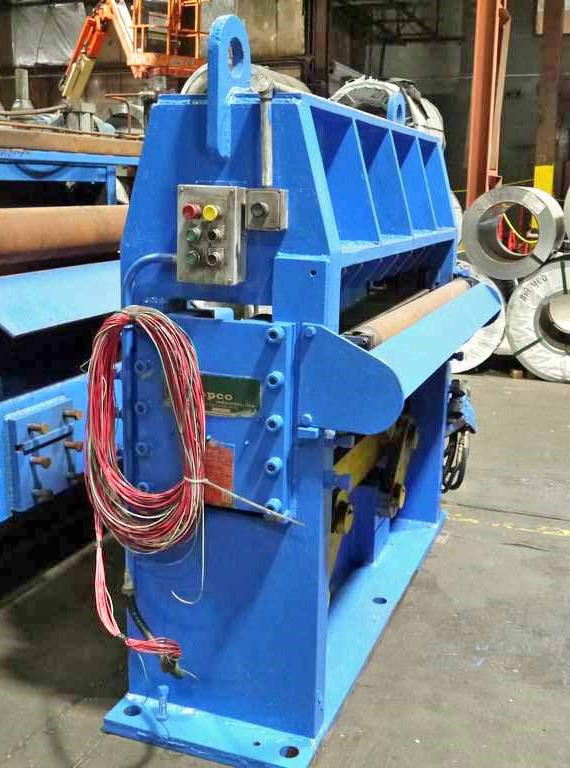

-Crop Shear:
58" Long Blade
Hydra-Mechanical Upcut Type
10" Bore Hydraulic Cylinder
Entry Passline Roll
Spring Loaded Holddown
Passline: 49"
Overall Size: 109" L x 35" W x 81" High

-Flattener:
5 Work Rolls, 2 over 3
6" Dia. x 60" Face Rolls
Entry Passline Roll, 8" Dia. x 60" Face
Entry Driven Pinch Rolls, 6" Dia. x 60" Face
Individual Jackscrew Adjustment of Top Rolls by AC Motors
15 HP AC Gearmotor Drive, 1750 RPM, 230/460 V
Foote Jones Reducer w/38.4:1 Ratio
Air Clutch
Passline: 48"
Overall Size: 151" L x 70" W x 85" High
19,000 Lbs.

-(2) Slitter Heads:
Crane Type Removable Heads
Single Eccentric Arbor Adjustment
(1) - 9" Dia. x 55" Face Arbors
Entry Table
(1) - 6" Dia. x 55" Face Arbors
Entry Side Guides, Manual Adj.
Entry Passline Rolls, 4" Dia. x 59.75" Long
75 HP DC Motor, 500/2000 RPM, 500 V, w/Blower
30 HP AC Motor Threading Drive, 1760 RPM, 230/460 V
Alten Reducer w/1.837:1 Ratio
Overall Size: 9" Head: 128" L x 57" W x 81" High, 15,000 Lbs.
6" Head: 122" L x 50" W x 69" High, 10,000 Lbs.
Drive: 150" L x 46" W x 47" High, 7,500 Lbs.

-(2) Scrap Winders:
Approx. 25" W x 26" Dia. Scrap Ball Capacity
Hydraulic Motor Driven
Self-Contained Hydraulics
Overall Size: 84" L x 52" W x 49" High

-Pit Cross Over Table:

-Tension Stand:
Drag Board Type w/(3) Air Cylinders for Clamping Pressure
Entry Separator Tooling Bar, 54" Long
Entry Passline Roll
60" Long Pads
Exit Passline Roll w/Encoder
Passline: 58.5"
Overall Size: 94" L x 43" W x 79" High

-Free Standing Overarm Separator:
Deflector Roll
Threading Table to Recoiler

-Recoiler:
16" Dia. x 58" Face Drum
20" Dia. Bolt On Pads
22" Dia. x 57" Face Drum
Hydraulic Clamp and Expansion
12" Dia. Main Shaft
Hydraulic Pushoff
Lufkin (2) Speed Gear Box w/10.6:1 and 31.7:1 Ratios
200 HP DC Motor, 500/2000 RPM, 500 V w/Blower
Air Operated Holding Brake
Passline: 40" from Floor to Center of Drum
Overall Size: 180" L x 102" W x 92" High

-Exit (3) Arm Turnstile
C-Hook Type Arms
60" Long Arms
16" I.D. Capacity
With Risers for 20" and 22" I.D.s
Powered Rotation
Less Pushoff
Weight: 10,140 Lbs.

-Hydraulic Power Unit:

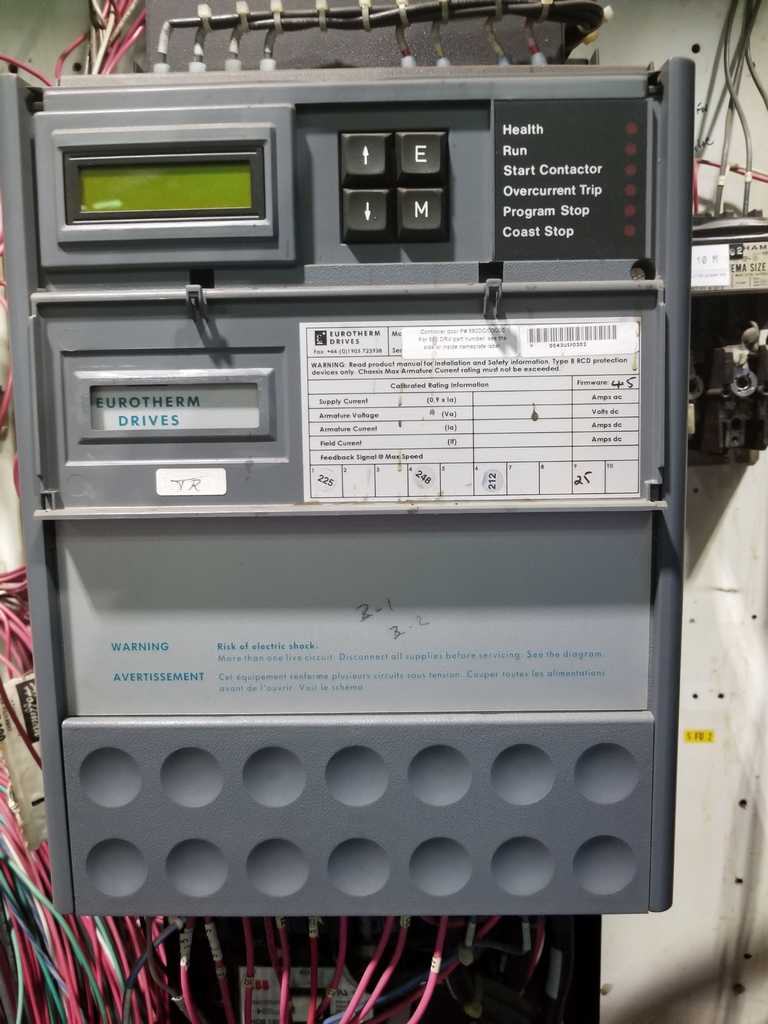

-Electrical Panel: Eurotherm DC Drive:

-Removed and in Storage: Toledo, OH.
