Herr Voss Polishing Line

Width: 16" - 62"
Coil I.D.: 20" - 24"
Weight: 80,000 lbs.
Thickness Range: 0.200" - 0.135" (Polishing)
0.200" - 0.210" (Grinding)
Line Speed: 20 to 100 FPM (Polishing)
10 to 50 FPM (Grinding)
Strip Tension: 55,000 lbs.
Material: 300 and 400 Series Stainless Steel

Consisting of the following:

-Entry Coil Car

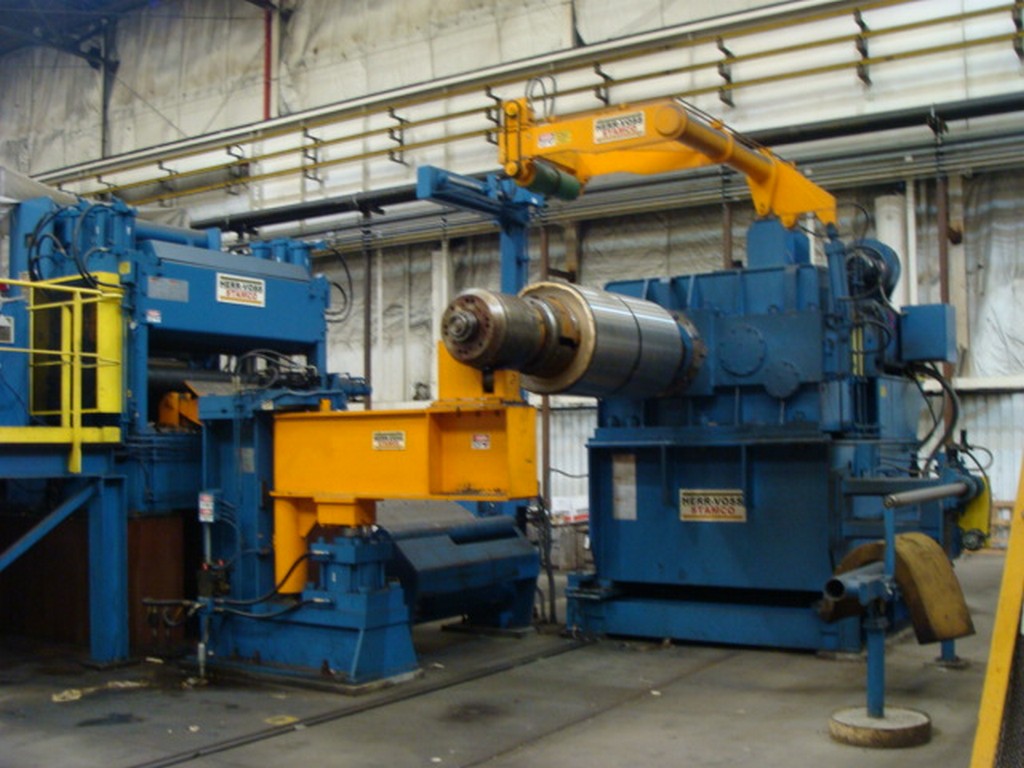

-Mandrel Uncoiler with Outboard Bearing Support
-Peeler, Pinch Roll, Flattener Unit
-Crop Shear, Scrap Car
-Strip Welder
-Tension Bridle
-Entry Squeegee Rolls

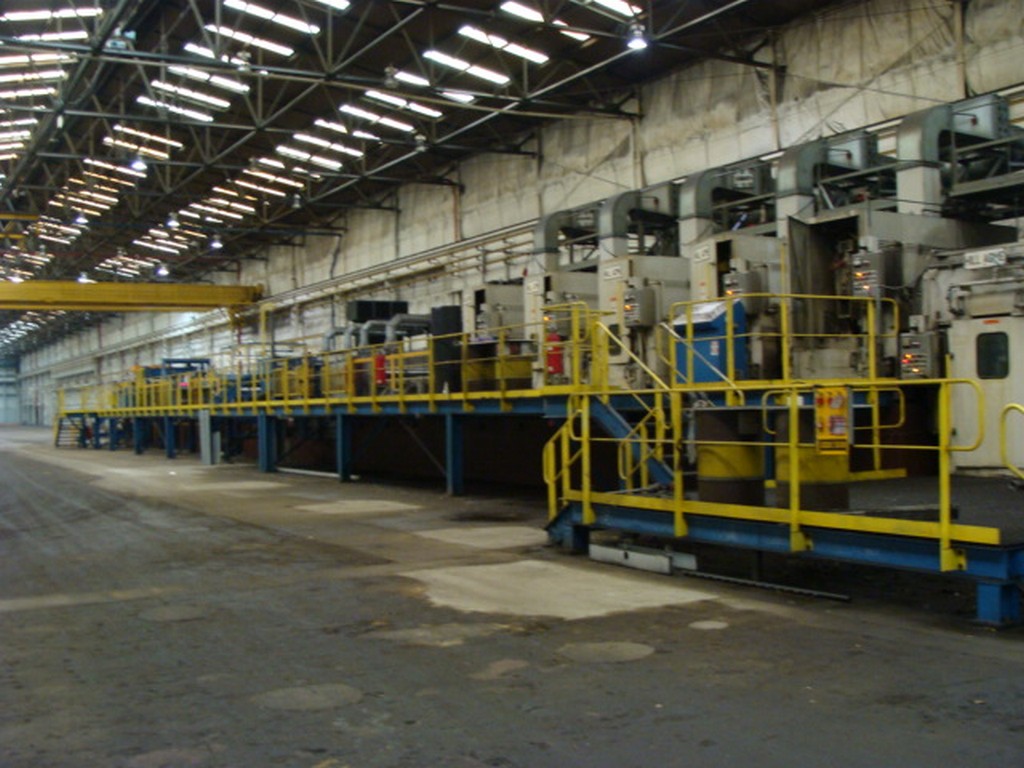

-5 Top Polishing Heads (Wet)
-2 Bottom Polishing Heads (Wet)
-Exit Squeegee Rolls
-Swarf Collection and Processing
-Coolant Filter and Fire Suppression Equipment
-Cleaning Section
-Inspection Station
-Tension Bridle
-Crop Shear
-Deflector Roll and Edge Guide System
-Recoiler with Outboard Bearing Support
-Coil Car
